Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit

Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit
Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit

Large Image :  Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015
Model Number: CSA-2012
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece/Pieces
Price: $2.60 - $46.60 / Piece
Packaging Details: Export Standard Package (foam + small box + carton)Minjiang Precision Tungsten Carbide Thread Nozzle of pdc oil drilling bit cross slot teeth
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1000000 Piece/Pieces per Week Tungsten carbide PDC drill bit nozzle

Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit

Description
Type: Coal Mining Tool, Oil Field Drill Bit Parts, Cross Slot Alloy Nozzle Product Name: Tungsten Carbide Nozzle
Material: Tungsten Carbide WC+Co Commodity Name: Spherical Button Drill Bit
Certificate: ISO9001:2015 Grade: YG8/YG15/YG6X/YG6/YG20
Application: Petroleum,Chemical And Mechanic Industry Keywords: Hard Alloy Nozzle
Place Of Origin: Chengdu, Sichuan , China MOQ: 10PCS
Port: Shanghai/Shenzhen
High Light:

YG6 Tungsten Carbide Nozzle

,

YG15 Thread Drilling Bit Nozzle

,

YG6X Tungsten Carbide Nozzle Kedel

Precision Tungsten Carbide Thread Nozzle of pdc oil drilling bit cross slot teeth

 Specifications
 There are two examples as below showed, we also accept your inquiry with drawings.

Model

MJP-CSA-2512

MJP-CSA-2012

MJP-CSA-2002

Outer Diameter

25.21

20.44

20.30

Total Length

34.80

30.61

30.80

Thread

1-12UNF-2A

3/4-12UFN-A-2A

M20x2-6h

Small Outer Diameter

22.2

16.1

16.1

Length

15.6

11.56

11.55

Endoporus

15.8

12.6

12.7

Chamfer Angle

3.4x20°

1x20°

2.4x20°


Transition Arc(J)

12.5

12.7

12.7

Transition Arc(K)

12.5

12.7

12.7

Pore Diametrer

 09#—20#,22#  09#—16#  09#—16#



Pore Diametrer Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit 0
09# 7.14
10# 7.95
11# 8.74
12# 9.53
13# 10.31
14# 11.13
15# 11.91
16# 12.70
17# 13.50
18# 14.29
19# 15.08
20# 15..80
22# 17.48





Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit 1

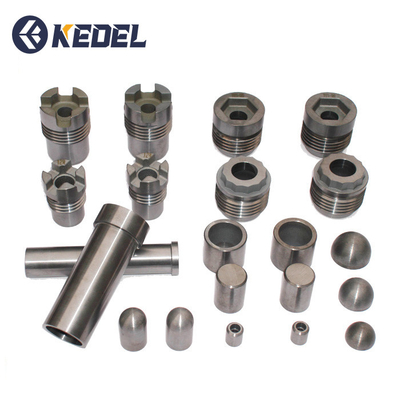

Products Show

Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit 2



Production Process



Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit 3

Packaging&Payment

Packing Details: Packing Carbide oil spray nozzle, use plastic foam, solid plastic box and carton.

Payment supports L/C, D/A, D/P, T/T, Western Union, MoneyGram payments for offline orders.

Precision Castle Top Wrench Thread Tungsten Carbide Nozzle Of Pdc Oil Drilling Bit 4



 Why Choose US

  1. We are the first manufacturer to produce threaded nozzles in China.
  2. A number of technical backbone workers have worked for more than ten years in the company.
  3. We have professional team and advanced equipment.
  4. All these to ensure our professional and sincere service.
  5. Our Pdc Drill Bit nozzle products have the advantages of high hardness, corrosion resistance,wear resistance and good toughness.  Our factory accepts non-standard customized products, the price varies with the raw material, the cost and the order quantity.
FAQ

 Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.

Q: Are the picture the same as the real products?

A: Yes,but the picture only shows some of our sample, if you have more size or specil size design inquirement, please contact with us before the order.

Q: How about the price range?

A: About the latest price, send an inquiry to us please. We’ll try our best to reply this asap.
