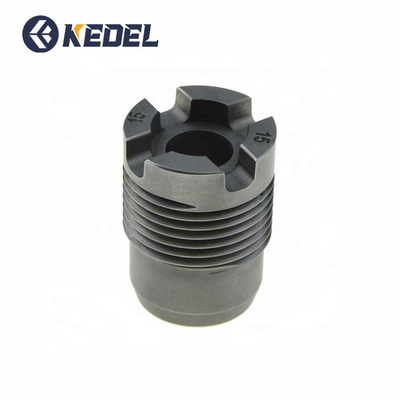

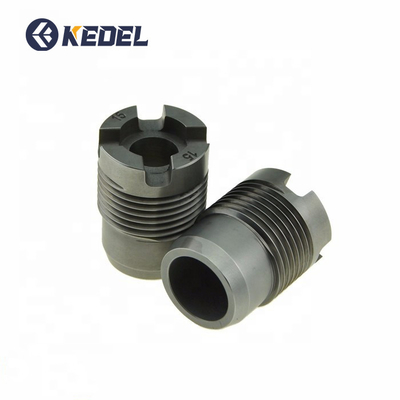

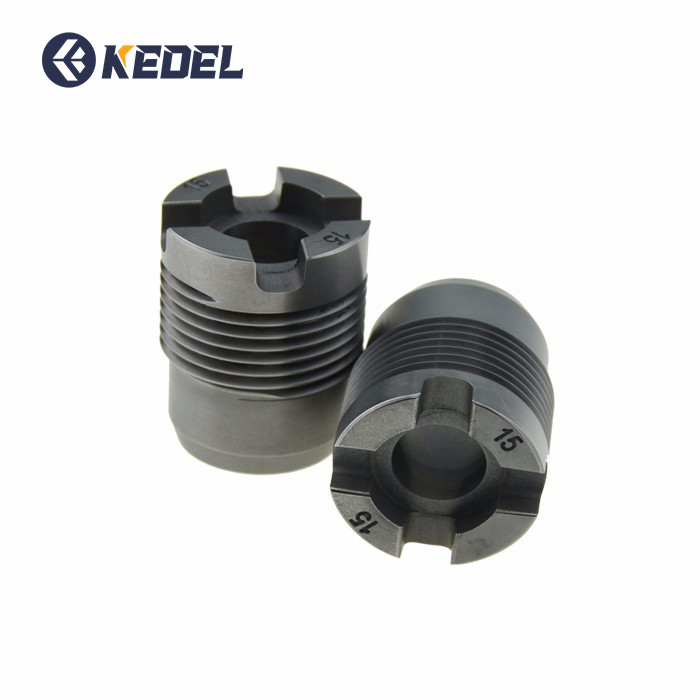

Well Drilling Cemented Carbide Tools Tungsten Carbide PDC Drill Bit Nozzle
Large Inventory Tungsten Carbide PDC Drill Bit Nozzle
Tungsten Carbide PDC Drill Bit Nozzle In Stock
Cemented carbide nozzle, also known as the tungsten carbide nozzle, is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc. The hard alloy nozzles produced by our company have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, and high precision.
Production Process
- Milling
- Proportioning as required
- Wet grinding
- Dry
- Granulation
- Press
- Sinter
- Inspection
- Package
Specifications
There are two examples as below showed, we also accept your inquiry with drawings.
| Model |
MJP-CSA-2512 |
Model |
MJP-CSA-2012 |
| Outer Diameter |
25.21 |
Outer Diameter |
20.44 |
| Total Length |
34.80 |
Total Length |
30.61 |
| Thread |
1-12UNF-2A |
Thread |
3/4-12UFN-A-2A |
| Small Outer Diameter |
22.2 |
Small Outer Diameter |
16.1 |
| Length |
15.6 |
Length |
11.56 |
| Endoporus |
15.8 |
Endoporus |
12.6 |
| Transition Arc(J) |
12.5 |
Transition Arc(J) |
12.7 |
| Transition Arc(K) |
12.5 |
Transition Arc(K) |
12.7 |

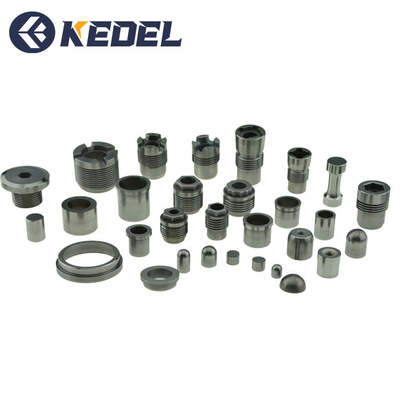

Products Show
| Pore Diameter (B) |
| 09# |
7.14 |
| 10# |
7.95 |
| 11# |
8.74 |
| 12# |
9.53 |
| 13# |
10.31 |
| 14# |
11.13 |
| 15# |
11.91 |
| 16# |
12.7 |
| 17# |
13.5 |
| 18# |
14.29 |
| 19# |
15.08 |
| 20# |
15.8 |
| 22# |
17.48 |
Our Company
Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. Our company is mainly engaged in research, development and production of various cemented carbide tools. The company has advanced equipment and first-class technical production team to produce and sell cemented carbide products of various shapes, sizes and grades, including cemented carbide nozzles, cemented carbide bushings, cemented carbide plates, cemented carbide rods, cemented carbide rings, cemented carbide rotary files and burrs, cemented carbide end mills and cemented carbide circular blades and cutters, Cemented carbide CNC inserts and other non-standard cemented carbide parts.
We are proud that the tungsten carbide parts and components developed and manufactured by Kedel Tools have been exported to North America, South America, Europe, South Africa and Southeast Asia, and our tungsten carbide products are widely used in the following fields: oil and gas industry, coal mining, mechanical seal, aerospace and steel smelting, Metal processing, military industry, new energy industry, packaging and printing industry, auto parts industry, chemical industry.
Related Products
Production Equipment
Quality Equipment
Exhibition
Frequently Asked Questions
Where is the Cemented Carbide Nozzle made?
Manufactured in Sichuan, China.
What is the brand name and model number?
Brand: KEDEL, Model: WLJ-2722.
What is the production capacity?
1,000,000 pieces per week.
What are the order terms?
Minimum order: 10-49 pieces at $18.00 per piece. ISO9001:2015 certified. Payment methods: T/T, L/C, Western Union, MoneyGram.
Packing & Delivery
Packing Details: Packing tungsten carbide bit nozzle, use plastic foam, solid plastic box and carton.
Best Bit Nozzle
Our bit nozzle products have the advantages of high hardness, corrosion resistance, wear resistance and good toughness. Our factory accepts non-standard customized products, the price varies with the raw material, the cost and the order quantity.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
