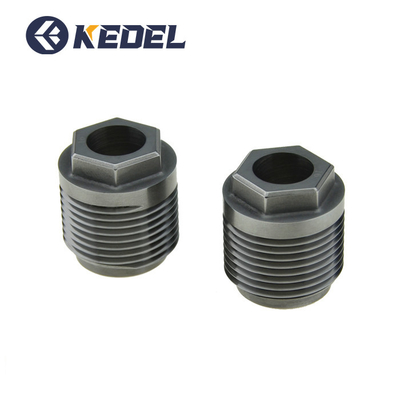

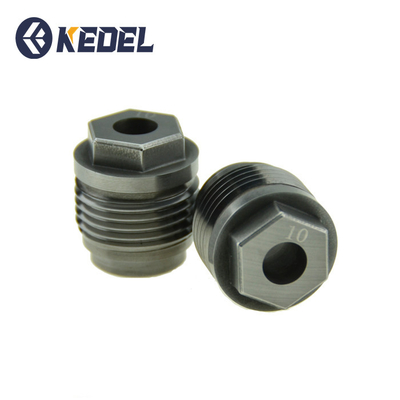

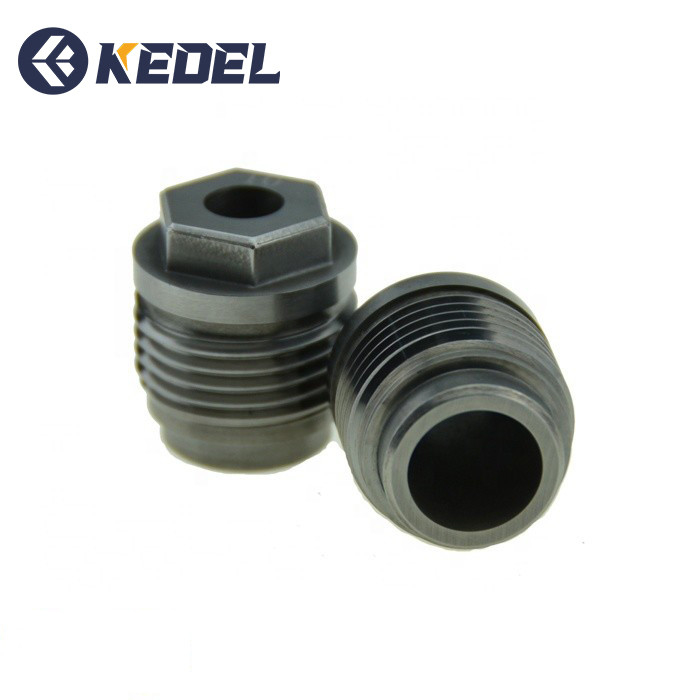

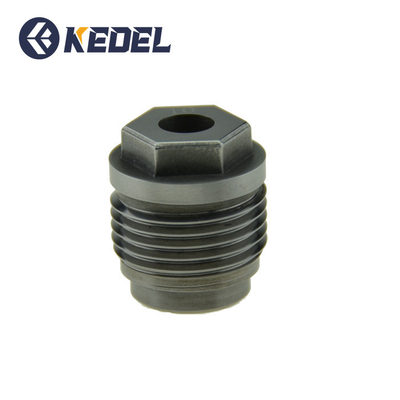

PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4

PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4

Large Image :  PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Certification: ISO9001:2015
Model Number: WLJ-2225
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece/Pieces
Price: $12.30 - $27.80 / Piece
Packaging Details: foam + small box + carton
Supply Ability: 1000000 Piece/Pieces per Week provide OEM service for tungsten cemented carbide products
Contact Now

PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4

Description
Alloy Specification: YG6/YG8/YG8C/YG9C/YG11/YG11C/YG13C Particle: Medium
Product Name: PDC Drill Bit Tungsten Carbide Thread Nozzle Application: Petroleum, Chemical And Mechanic Idustry
Material: Tungsten Carbide WC+Co Surface: Finished
Size: ID22.22xL"25.4 Type: External Hexagon Alloy Nozzle
Commodity Name: Spherical Button Drill Bit Grade: YG8/YG13C/YG15/YG6X/YG6/YG20
Certificate: ISO9001:2015 Usage: Oil Drilling Bit
Port: Chengdu/Beijing/Shanghai/Guangzhou/Shenzhen
Highlight:

Tungsten Thread Nozzle YG13C

,

hexagon alloy nozzle YG11

,

Tungsten Thread Nozzle YG11C YG13C

PDC Drill Bit Carbide Tungsten Thread Nozzle YG11C YG13C
Product Description

PDC Drill Bit Carbide Tungsten Thread nozzle is mainly used in chemical industry, food processing, machinery, metallurgy, and construction for applications including pulverizing, derusting, cleaning, and atomization. Our premium tungsten carbide nozzles are manufactured from high-quality raw materials and feature:

  • High temperature resistance
  • Excellent corrosion resistance
  • Superior wear resistance
  • Precision engineering
Production Process
  1. Milling
  2. Proportioning as required
  3. Wet grinding
  4. Dry
  5. Granulation
  6. Press
  7. Sinter
  8. Accurate Grinding
  9. Inspection
  10. Cleaning
  11. Package
Specifications

Below are two standard models. We also accept custom specifications with your drawings.

Model MJP-WLJ-2225 Model MJP-WLJ-2012
Outer Diameter 22.22 Outer Diameter 20.44
Total Length 25.40 Total Length 30.61
Thread 7/8'-14UNF-2A Thread 3/4-12UFN-A-2A
Small Outer Diameter 17.1 Small Outer Diameter 16.1
Length 5.7 Length 11.56
Endoporus 12.8 Endoporus 12.6
Transition Arc(J) 12.7 Transition Arc(J) 12.7
Transition Arc(K) 18.2 Transition Arc(K) 12.7
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 0
Model
MJP-WJA-2214
Outer Diameter (A) 22.22
Total Length (C) 25.40
Thread (M) 7/8"-14UNF-2A
Small Outer Diameter (D) 17.1
Length (L) 5.7
Endoporus (E) 12.8
Chamfer Angle (F×G) 0.8×45°
Transition Arc (J) 12.7
Transition Arc (K) 18.2
Pore Diameter (B)
09# 7.14
10# 7.95
11# 8.74
12# 9.53
13# 10.31
14# 11.13
15# 11.91
16# 12.7
Products Show
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 1
Related Products
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 2 Tungsten Carbide Button
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 3 Tungsten Carbide Seal Ring
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 4 Tungsten Carbide Sleeves
Production Equipment
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 5
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 6
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 7
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 8
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 9
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 10
Quality Control Equipment
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 11
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 12
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 13
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 14
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 15
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 16
Exhibition
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 17
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 18
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 19
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 20
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 21
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 22
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 23
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 24
PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 25
Packing & Delivery

Packing Details: PDC Drill Bit Carbide tungsten thread nozzles are packed with plastic foam, solid plastic boxes, and cartons for optimal protection during shipping.

PDC Drill Bit Tungsten Carbide Nozzle YG11C YG13C ID22.22xL25.4 26
Our Certifications

Our PDC Drill Bit Carbide tungsten thread nozzle products feature high hardness, corrosion resistance, wear resistance, and excellent toughness. We accept custom orders for non-standard specifications, with pricing based on raw materials, production costs, and order quantity.

FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock, or 15-20 days if the goods need to be produced, depending on quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer free samples but the customer pays for shipping costs.
Q: What is your terms of payment?
A: For orders ≤1000USD: 100% payment in advance. For orders ≥1000USD: 30% T/T deposit with balance paid before shipment.
