Coal Mining Inner Hexagon YG20 Cemented Carbide Nozzle For PDC Drill Bit
Product Description

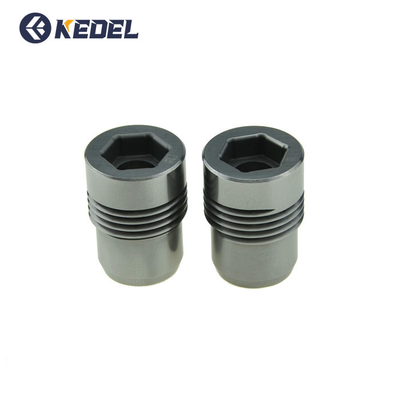

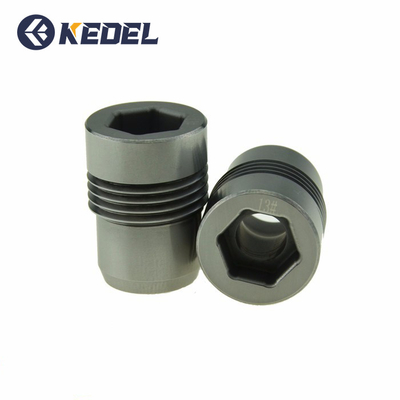

Hot selling Inner hexagon alloy Tungsten Carbide Thread Nozzle for Pdc Bit
Tungsten Carbide Thread Nozzle, also known as the tungsten carbide nozzle, features high temperature resistance, corrosion resistance, abrasion resistance, and high precision. It maintains its properties at temperatures up to 500°C and retains high hardness even at 1000°C. Primarily used in chemical, food, machinery, metallurgy, and construction industries for applications including pulverizing, derusting, cleaning, and atomization.
| Model |
| MJP-LJA-3212 |
| Outer Diameter (A) |
32.00 |
| Total Length (C) |
26.30 |
| Thread (M) |
1 1/4"-12UNF-2A |
| Small Outer Diameter (D) |
26.8 |
| Length (L) |
5 |
| Endoporus (E) |
22 |
| Chamfer Angle (F*G) |
0.6*30° |
| Transition Arc (J) |
10 |
| Transition Arc (K) |
10 |
| Pore Diameter (B) |
| 09# |
7.14 |
| 10# |
7.95 |
| 11# |
8.74 |
| 12# |
9.53 |
| 13# |
10.31 |
| 14# |
11.13 |
| 15# |
11.91 |
| 16# |
12.7 |
| 17# |
13.5 |
| 18# |
14.29 |
| 19# |
15.08 |
| 20# |
15.8 |
| 22# |
17.48 |
| 24# |
19.1 |
| 26# |
20.6 |
| 28# |
22.2 |
| Model |
| MJP-LJA-2712 |
| Outer Diameter (A) |
27.00 |
| Total Length (C) |
25.40 |
| Thread (M) |
1 1/16"-12UNF-2A |
| Small Outer Diameter (D) |
21.92 |
| Length (L) |
4.75 |
| Endoporus (E) |
18 |
| Chamfer Angle (F*G) |
0.6*30° |
| Transition Arc (J) |
12.7 |
| Transition Arc (K) |
5 |
| Pore Diameter (B) |
| 09# |
7.14 |
| 10# |
7.95 |
| 11# |
8.74 |
| 12# |
9.53 |
| 13# |
10.31 |
| 14# |
11.13 |
| 15# |
11.91 |
| 16# |
12.7 |
| 17# |
13.5 |
| 18# |
14.29 |
| 19# |
15.08 |
| 20# |
15.8 |
| 22# |
17.48 |
| Model |
| MJP-LJA-1912 |
| Outer Diameter (A) |
19.05 |
| Total Length (C) |
23.00 |
| Thread (M) |
3/4"-12UNF-2A |
| Small Outer Diameter (D) |
16.1 |
| Length (L) |
3.6 |
| Endoporus (E) |
13 |
| Chamfer Angle (F*G) |
0.67*30° |
| Transition Arc (J) |
10 |
| Transition Arc (K) |
10 |
| Pore Diameter (B) |
| 09# |
7.14 |
| 10# |
7.95 |
| 11# |
8.74 |
| 12# |
9.53 |
| 13# |
10.31 |
| 14# |
11.13 |
| 15# |
11.91 |
| 16# |
12.7 |
| 17# |
13.5 |
| 18# |
14.29 |
| 19# |
15.08 |
| 20# |
15.8 |
Company Information
Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. We specialize in research, development, and production of various cemented carbide tools. With advanced equipment and a skilled technical team, we produce carbide products including nozzles, bushings, plates, rods, rings, rotary files, end mills, circular blades, CNC inserts, and custom non-standard parts.
Our products are exported worldwide and used in diverse industries including oil & gas, coal mining, aerospace, steel smelting, metal processing, military, new energy, packaging, printing, and automotive.
Why Choose Us
- First manufacturer of threaded nozzles in China
- Technical team with over 10 years of experience
- Professional team and advanced equipment
- Guaranteed professional and sincere service
- Products feature high hardness, corrosion resistance, wear resistance, and good toughness
- Custom non-standard products available with pricing based on materials, costs, and order quantity
Production Process
Related Products
Production Equipment
Quality Equipment
Exhibition
Packaging & Payment
Packing Details: Carbide oil spray nozzles are packed with plastic foam, solid plastic box, and carton.
Payment Methods: L/C, D/A, D/P, T/T, Western Union, MoneyGram for offline orders.
FAQ
Q: Are you a trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: 5-10 days for in-stock items, 15-20 days for out-of-stock items (depending on quantity).
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer free samples but the customer pays for freight.
Q: What are your payment terms?
A: ≤$1000: 100% in advance. >$1000: 30% T/T in advance, balance before shipment.
Q: Are the pictures the same as the real products?
A: Yes, but pictures show only samples. Contact us for custom size requirements.
Q: How about the price range?
A: Please send an inquiry for the latest pricing.
