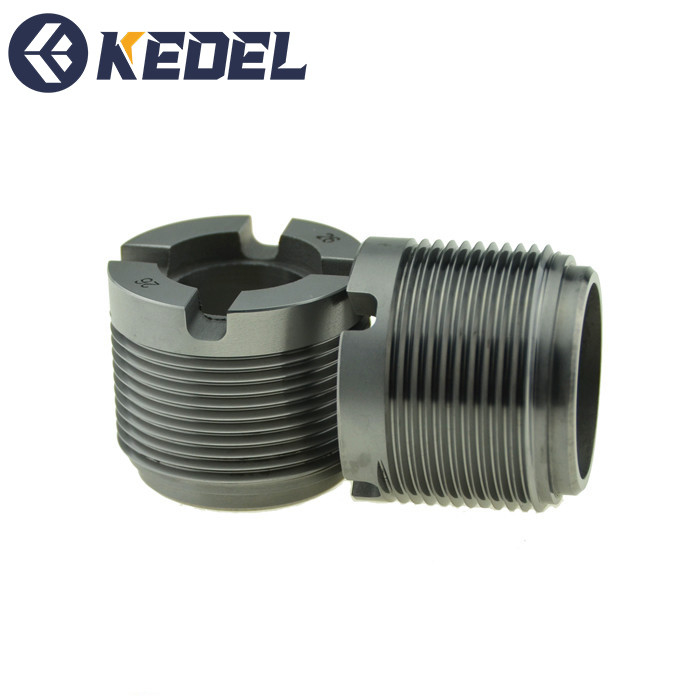

Cross Slot Alloy Tungsten Carbide Thread Nozzle Gauge Of PDC Oil Drilling
Chengdu cross slot alloy Tungsten Carbide Thread Nozzle gauge of PDC oil drilling. Tungsten Carbide Thread Nozzle, also known as the tungsten carbide nozzle, features high temperature resistance, corrosion resistance, abrasion resistance, and high precision. It maintains hardness at 500°C and remains functional at 1000°C. Widely used in chemical, food, machinery, metallurgy, and construction industries for pulverizing, derusting, cleaning, and atomization.
Product Specifications
Available in multiple specifications with high-quality raw materials. Custom specifications accepted with provided drawings.
| Model |
MJP-CSA-2512 |
MJP-CSA-2012 |
MJP-CSA-2002 |
| Outer Diameter |
25.21 |
20.44 |
20.30 |
| Total Length |
34.80 |
30.61 |
30.80 |
| Thread |
1-12UNF-2A |
3/4-12UFN-A-2A |
M20x2-6h |
| Small Outer Diameter |
22.2 |
16.1 |
16.1 |
| Length |
15.6 |
11.56 |
11.55 |
| Endoporus |
15.8 |
12.6 |
12.7 |
| Chamfer Angle |
3.4x20° |
1x20° |
2.4x20° |
| Transition Arc(J) |
12.5 |
12.7 |
12.7 |
| Transition Arc(K) |
12.5 |
12.7 |
12.7 |
| Pore Diameter |
09#—20#,22# |
09#—16# |
09#—16# |
| Pore Number |
Diameter |
| 09# |
7.14 |
| 10# |
7.95 |
| 11# |
8.74 |
| 12# |
9.53 |
| 13# |
10.31 |
| 14# |
11.13 |
| 15# |
11.91 |
| 16# |
12.70 |
| 17# |
13.50 |
| 18# |
14.29 |
| 19# |
15.08 |
| 20# |
15.80 |
| 22# |
17.48 |

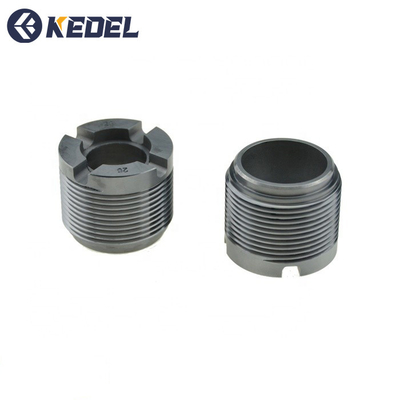

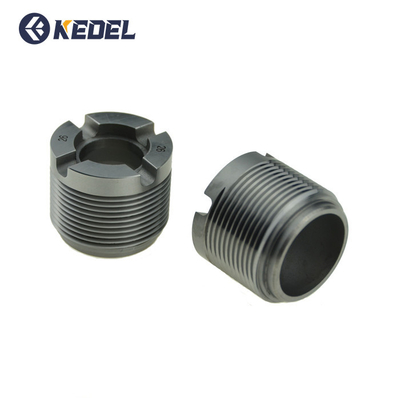

Product Showcase
Company Information
Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China, specializing in research, development, and production of various cemented carbide tools. With advanced equipment and a skilled technical team, we produce carbide nozzles, bushings, plates, rods, rings, rotary files, end mills, circular blades, CNC inserts, and custom non-standard parts. Our products are exported worldwide and used in oil/gas, coal mining, aerospace, steel smelting, metal processing, military, energy, packaging, printing, and automotive industries.
Production Process
Related Products
Production Equipment
Quality Control Equipment
Product Exhibition
Packaging & Payment
Packing Details: Carbide oil spray nozzles are packed with plastic foam, solid plastic boxes, and cartons.
Payment Methods: L/C, D/A, D/P, T/T, Western Union, MoneyGram for offline orders.
Why Choose Us
- First manufacturer of threaded nozzles in China
- Technical team with over 10 years of experience
- Professional team and advanced equipment
- High hardness, corrosion resistance, wear resistance products
- Custom non-standard products available
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally 5-10 days if in stock, 15-20 days if not in stock (depends on quantity).
Q: Do you provide samples? Is it free or extra?
A: Yes, free samples available (customer pays freight).
Q: What are your payment terms?
A: ≤$1000: 100% in advance. ≥$1000: 30% T/T in advance, balance before shipment.
Q: Are the pictures the same as real products?
A: Yes, but pictures show samples only. Contact us for custom sizes.
Q: How about the price range?
A: Please send inquiry for latest pricing.
