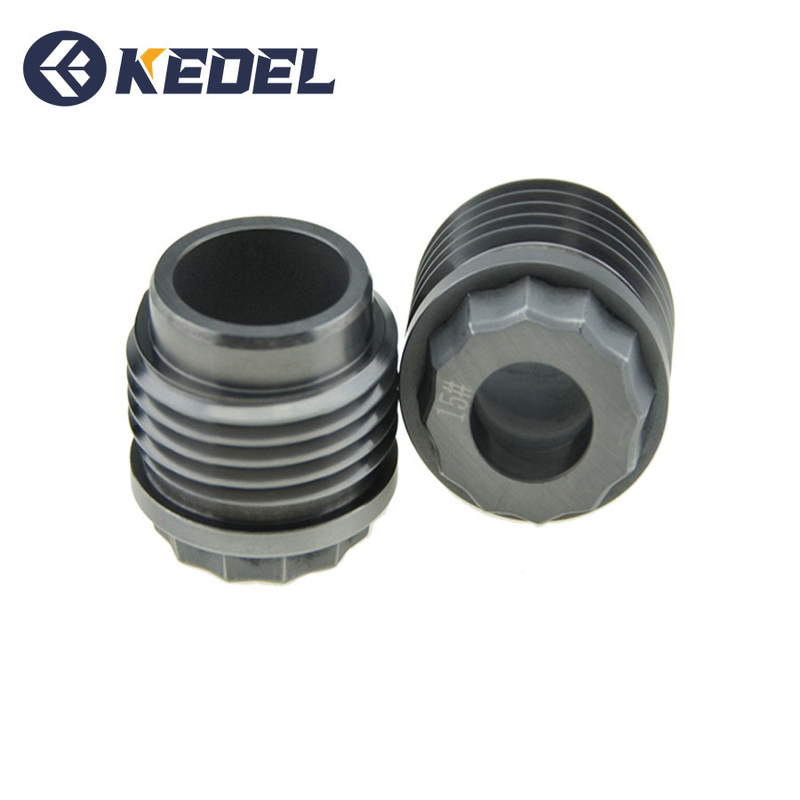

YG20 Cinquefoil Cemented Carbide Nozzle PDC Drilling Bit
Industry cross slot Cinquefoil alloy nozzle of PDC drilling bit. Tungsten Carbide Thread Nozzle, also known as the tungsten carbide nozzle, features high temperature resistance, corrosion resistance, abrasion resistance, and high precision. It maintains its properties at temperatures up to 500°C and retains high hardness at 1000°C.
Applications
Widely used in chemical, food, machinery, metallurgy, and construction industries for pulverizing, derusting, cleaning, and atomization applications.
Product Specifications
| Model |
MJP-CSA-2512 |
MJP-CSA-2012 |
MJP-CSA-2002 |
| Outer Diameter |
25.21 |
20.44 |
20.30 |
| Total Length |
34.80 |
30.61 |
30.80 |
| Thread |
1-12UNF-2A |
3/4-12UFN-A-2A |
M20x2-6h |
| Small Outer Diameter |
22.2 |
16.1 |
16.1 |
| Length |
15.6 |
11.56 |
11.55 |
| Endoporus |
15.8 |
12.6 |
12.7 |
| Chamfer Angle |
3.4x20° |
1x20° |
2.4x20° |
| Transition Arc(J) |
12.5 |
12.7 |
12.7 |
| Transition Arc(K) |
12.5 |
12.7 |
12.7 |
| Pore Diameter |
09#—20#,22# |
09#—16# |
09#—16# |
About Chengdu Kedel Tools
We are a professional manufacturer of tungsten carbide products from China, specializing in research, development, and production of various cemented carbide tools. Our company features advanced equipment and a first-class technical production team to produce and sell cemented carbide products of various shapes, sizes, and grades.
Product Range
- Cemented carbide nozzles
- Cemented carbide bushings
- Cemented carbide plates and rods
- Cemented carbide rings
- Cemented carbide rotary files and burrs
- Cemented carbide end mills
- Cemented carbide circular blades and cutters
- Cemented carbide CNC inserts
- Custom non-standard cemented carbide parts
Why Choose Our Products
- First manufacturer to produce threaded nozzles in China
- Experienced technical team with over 10 years of expertise
- Professional team and advanced production equipment
- High hardness, corrosion resistance, wear resistance, and good toughness
- Custom non-standard products available
Related Products
Production Equipment
Quality Control Equipment
Product Exhibition
Packaging & Payment
Packing Details: Carbide oil spray nozzles are packed with plastic foam, solid plastic box, and carton.
Payment Methods: L/C, D/A, D/P, T/T, Western Union, MoneyGram payments for offline orders.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer samples free of charge but the customer pays for freight.
Q: What are your payment terms?
A: Payment ≤1000USD: 100% in advance. Payment ≥1000USD: 30% T/T in advance, balance before shipment.
Q: Are the pictures the same as the real products?
A: Yes, but pictures show only some samples. For custom sizes or special designs, please contact us before ordering.
Q: How about the price range?
A: For latest pricing, please send us an inquiry. We'll respond as soon as possible.
