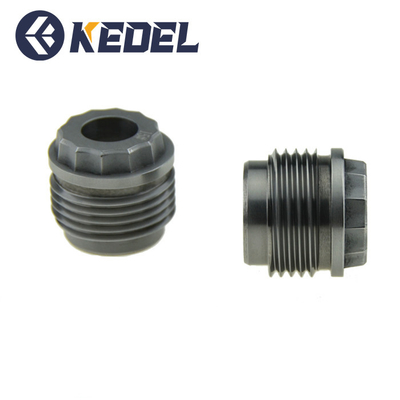

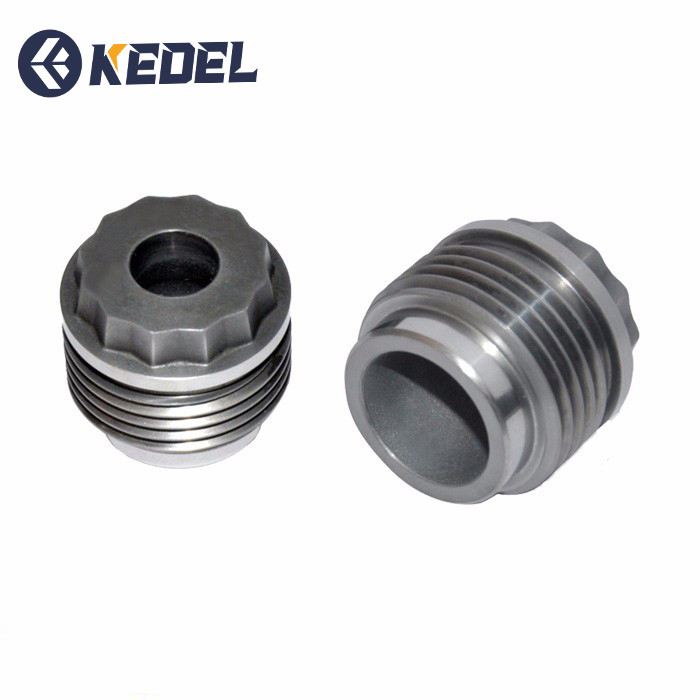

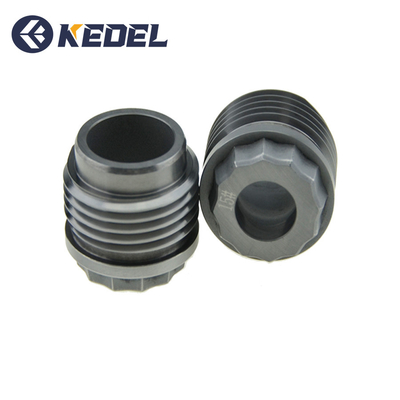

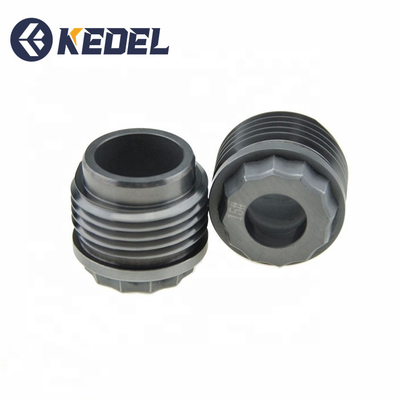

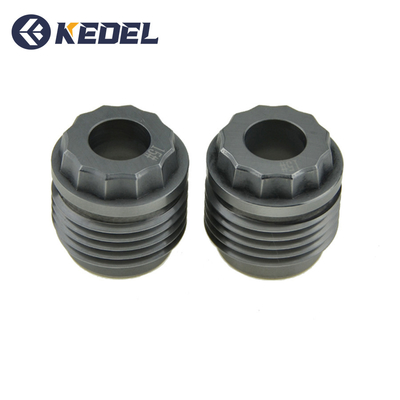

Product Details:
|
| Product Name: | 100% Virgin Tungsten Carbide Ground Thread Nozzle | Application: | Petroleum, Chemical And Mechanic Industry |
|---|---|---|---|
| Material: | Tungsten Carbide WC+Co | Size: | YHA |
| Type: | External Hexagon Alloy Nozzle | Commodity Name: | Spherical Button Drill Bit |
| Grade: | YG8/YG15/YG6X/YG6/YG20 | Certificate: | ISO9001:2008 |
| Usage: | Oil Drilling Tools | Port: | Shanghai/Shenzhen |
| Highlight: | WC-Co Oil Spray Nozzles,Kedel tungsten carbide nozzle YG8,Oil Spray Nozzles Tricone Bit |
||
| Product Name | 100% Virgin Tungsten Carbide Ground Thread Nozzle |
|---|---|
| Brand | Kedel |
| Model | YHA |
| Type | Crossing slot/Inner hexagonal/Outter hexagonal/Cinquefoil/Triangular slot/Inner crossing |
| Material | 100% Virgin Tungsten Carbide |
| Grade | YG6/YG8/YG11/YG13 |
| Usage | Drill bit |
| MOQ | 10 Pieces |
| Model | Pore Diameter (B) |
|---|---|
| MJP-LJA-2712 | 09# | 7.14 |
| 10# | 7.95 | |
| 11# | 8.74 | |
| 12# | 9.53 | |
| 13# | 10.31 | |
| 14# | 11.13 | |
| 15# | 11.91 | |
| 16# | 12.7 | |
| 17# | 13.5 | |
| 18# | 14.29 | |
| 19# | 15.08 | |
| 20# | 15.8 | |
| 22# | 17.48 |
| Outer Diameter (A) | 27.00 |
|---|---|
| Total Length (C) | 25.40 |
| Thread (M) | 1 1/16"-12UNF-2A |
| Small Outer Diameter (D) | 21.92 |
| Length (L) | 4.75 |
| Inner Bore (E) | 18 |
| Chamfer Angle (F*G) | 0.67*30° |
| Transition Arc (J) | 12.7 |
| Transition Arc (K) | 5 |
