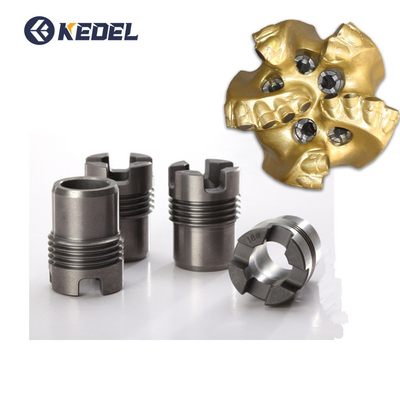

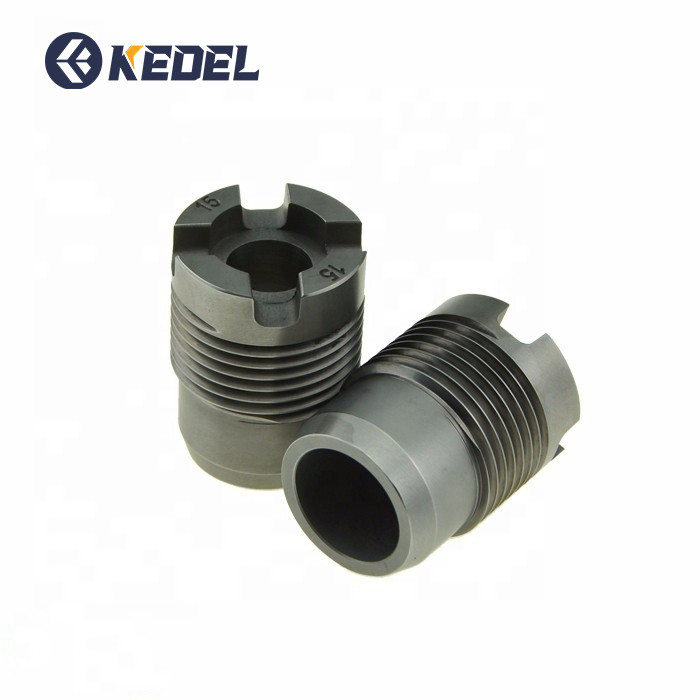

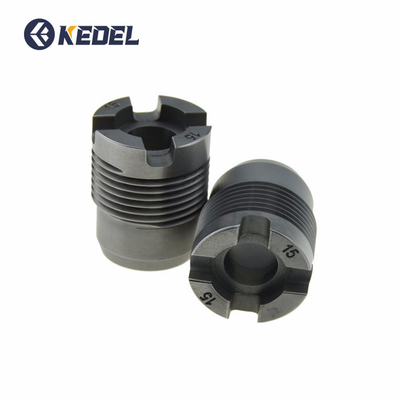

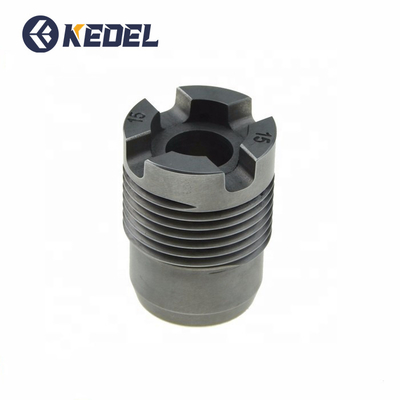

Cross Groove Spear PDC Drill Bit Nozzles YG20 Precision Machining Carbide Alloy
Precision machining Virgin material carbide alloy strong wear resistance cross groove spear PDC drill bit nozzles. Cemented carbide nozzle, also known as the tungsten carbide nozzle, is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc.
The hard alloy nozzles produced by our company have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Production Process
- Milling
- Proportioning as required
- Wet grinding
- Dry
- Granulation
- Press
- Sinter
- Inspection
- Package
Specifications
There are two examples as below showed, we also accept your inquiry with drawings.
| Parameter |
MJP-CSA-2512 |
| Model |
MJP-CSA-2512 |
| Outer Diameter |
25.21 |
| Total Length |
34.80 |
| Thread |
1-12UNF-2A |
| Small Outer Diameter |
22.2 |
| Length |
15.6 |
| Endoporus |
15.8 |
| Transition Arc(J) |
12.5 |
| Transition Arc(K) |
12.5 |
| Parameter |
MJP-CSA-2012 |
| Model |
MJP-CSA-2012 |
| Outer Diameter |
20.44 |
| Total Length |
30.61 |
| Thread |
3/4-12UFN-A-2A |
| Small Outer Diameter |
16.1 |
| Length |
11.56 |
| Endoporus |
12.6 |
| Transition Arc(J) |
12.7 |
| Transition Arc(K) |
12.7 |
| Pore Diameter (B) |
| 09# | 7.14 |
| 10# | 7.95 |
| 11# | 8.74 |
| 12# | 9.53 |
| 13# | 10.31 |
| 14# | 11.13 |
| 15# | 11.91 |
| 16# | 12.7 |
| 17# | 13.5 |
| 18# | 14.29 |
| 19# | 15.08 |
| 20# | 15.8 |
| 22# | 17.48 |

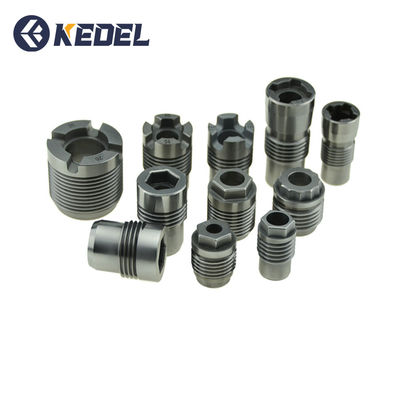

Products Show
Other Products
Cinquefoil alloy nozzle
| Model |
| MJP-YHA-2712 |
| Outer Diameter (A) |
27.00 |
| Total Length (C) |
25.24 |
| Thread (M) |
1 1/16-12UNF-2A |
| Small Outer Diameter (D) |
21.9 |
| Length (L) |
5 |
| Endoporus (E) |
17.03 |
| Chamfer Angle (F×G) |
1×45° |
| Transition Arc (J) |
12.7 |
| Transition Arc (K) |
12.7 |
| Pore Diameter (B) |
| 09# |
7.14 |
| 10# |
7.95 |
| 11# |
8.74 |
| 12# |
9.53 |
| 13# |
10.31 |
| 14# |
11.13 |
| 15# |
11.91 |
| 16# |
12.7 |
| 17# |
13.5 |
| 18# |
14.29 |
| 19# |
15.08 |
| 20# |
15.8 |
Cross slot alloy nozzle
| Model |
| MJP-CSA-2512 |
| Outer Diameter (A) |
25.21 |
| Total Length (C) |
34.80 |
| Small Outer Diameter (D) |
1 1/2"-20UN-2A |
| Thread (M) |
1-22UN-2A |
| Length (L) |
15.6 |
| Endoporus (E) |
18.8 |
| Chamfer Angle (F×G) |
3×20° |
| Transition Arc (J) |
12.4 |
| Transition Arc (K) |
12.5 |
| Pore Diameter (B) |
| 00# |
7.14 |
| 09# |
7.95 |
| 10# |
8.74 |
| 11# |
9.53 |
| 12# |
10.31 |
| 13# |
11.13 |
| 14# |
11.91 |
| 15# |
12.7 |
| 16# |
13.5 |
| 17# |
14.29 |
| 18# |
15.08 |
| 19# |
15.8 |
| 20# |
17.48 |
| Model |
| MJP-CSA-2012 |
| Outer Diameter (A) |
20.44 |
| Total Length (C) |
30.61 |
| Small Outer Diameter (D) |
3/4"-12UNF-2A |
| Thread (M) |
16L |
| Length (L) |
11.56 |
| Endoporus (E) |
12.6 |
| Chamfer Angle (F×G) |
1×45° |
| Transition Arc (J) |
12.7 |
| Transition Arc (K) |
12.7 |
| Pore Diameter (B) |
| 00# |
7.14 |
| 09# |
7.95 |
| 10# |
8.74 |
| 11# |
9.53 |
| 12# |
10.31 |
| 13# |
11.13 |
| 14# |
11.91 |
| 15# |
12.7 |
| 16# |
12.7 |
| Model |
| MJP-CSA-2002 |
| Outer Diameter (A) |
20.30 |
| Total Length (C) |
30.80 |
| Small Outer Diameter (D) |
M20×2-6H |
| Thread (M) |
16L |
| Length (L) |
11.55 |
| Endoporus (E) |
12.7 |
| Chamfer Angle (F×G) |
2×45° |
| Transition Arc (J) |
12.7 |
| Transition Arc (K) |
12.7 |
| Pore Diameter (B) |
| 00# |
7.14 |
| 09# |
7.95 |
| 10# |
8.74 |
| 11# |
9.53 |
| 12# |
10.31 |
| 13# |
11.13 |
| 14# |
11.91 |
| 15# |
12.7 |
| 16# |
12.7 |
Company Information
Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. Our company is mainly engaged in research, development and production of various cemented carbide tools. The company has advanced equipment and first-class technical production team to produce and sell cemented carbide products of various shapes, sizes and grades, including cemented carbide nozzles, cemented carbide bushings, cemented carbide plates, cemented carbide rods, cemented carbide rings, cemented carbide rotary files and burrs, cemented carbide end mills and cemented carbide circular blades and cutters, Cemented carbide CNC inserts and other non-standard cemented carbide parts.
We are proud that the tungsten carbide parts and components developed and manufactured by Kedel Tools have been exported to North America, South America, Europe, South Africa and Southeast Asia, and our tungsten carbide products are widely used in the following fields: oil and gas industry, coal mining, mechanical seal, aerospace and steel smelting, Metal processing, military industry, new energy industry, packaging and printing industry, auto parts industry, chemical industry.
Packing & Delivery
Packing Details: Packing tungsten carbide spray nozzle, use plastic foam, solid plastic box and carton.
Our PDC Drill Bit nozzle products have the advantages of high hardness, corrosion resistance, wear resistance and good toughness. Our factory accepts non-standard customized products, the price varies with the raw material, the cost and the order quantity.
Related Products
Production Equipment
Quality Control Equipment
Product Exhibition
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
