Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA

Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA
Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA
Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA

Large Image :  Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece/Pieces
Price: $1.20 - $46.60 / Piece
Packaging Details: foam + small box + carton
Supply Ability: 1000000 Piece/Pieces per Week provide OEM service for tungsten carbide seal ring products

Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA

Description
Product Name: Tungsten Carbide Shaft Seal Ring Material: Tungsten Carbide, Nickel / Cobalt Binder Tungsten Carbide
Material Grade: YN6/YN8 HRC Hardness: 69-81HRC
HRA Hardness: 86-93HRA Dimensions: Customized
Material Density: 14.6-14.95g/cm3 Finish: Unground/Polished
Certificate: ISO9001:2008 Payment Terms: Paypal/Western Union/TT
High Light:

Tungsten Carbide mechanical shaft seal

,

Tungsten Carbide Mechanical Gear Ring

,

mechanical shaft seal 86HRA

Product Description

Mechanical shaft seal, mechanical gear ring, tungsten rings

Tungsten rings are used as Mechanical Seal Faces in pumps, Compressors and Agitators.
Carbide Seal Rings are used in oil refineries,Petrochemical plants, Fertilizer Plants and Drug/Pharmaceutial Industries.
Tungsten Rings are developed to withstanding high temperature, high pressure & highly corrosive chemical attack.

Our advantages:

1. Use 100% Raw material, strict incoming inspection.

2. Overpressure sintering, increasing the densification of the alloy teeth and increasing the 30% life span.

3. Can be customized according to the requirements of the customer.

Production Process

Milling--Proportioning as required--Wet grinding--Dry--Granulation--Press--Sinter--Inspection--Package



Specifications

there are tungsten carbide bushing specifications as below showed, we also accept your inquiry with drawings.

Part Name
non-magnetic tungsten carbide seal face ring
Material
Tungsten Carbide
Material Grade
YG6,YG8,YN6,YN8
Material Density
14.6-14.95g/cm3
HRA Hardness
86-93HRA
HRC Hardness
69-81HRC
Finish
Unground/Polished
Dimensions
Customized
Payment Terms
Paypal/Western Union/TT

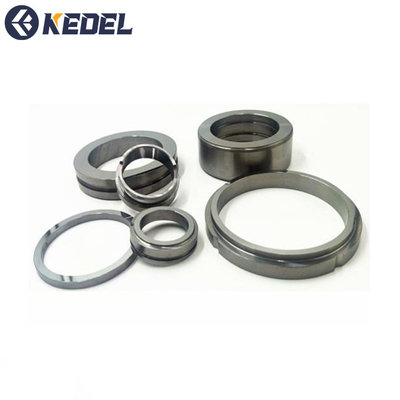

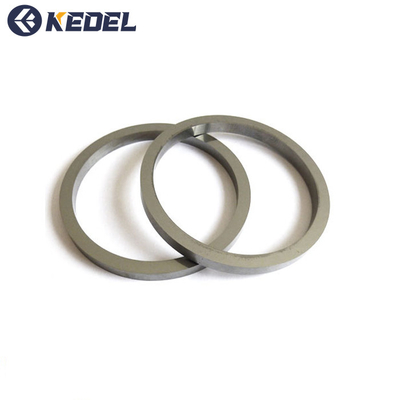

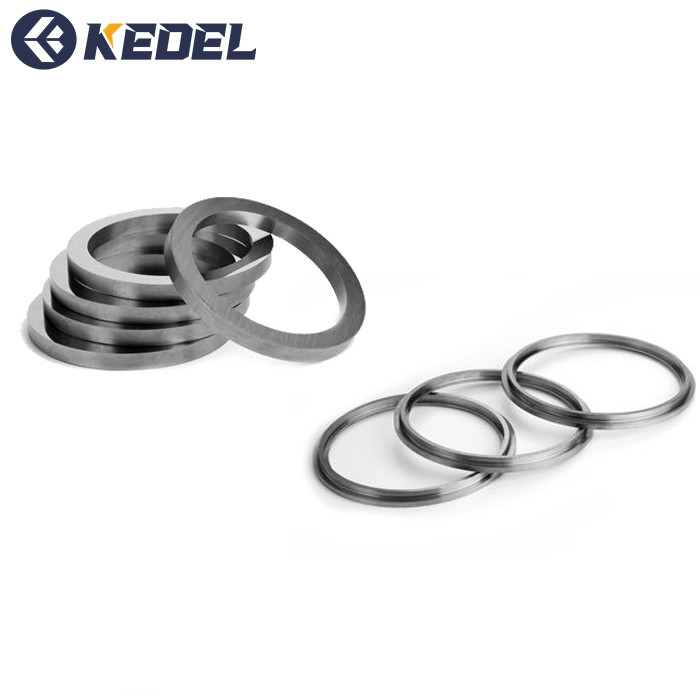

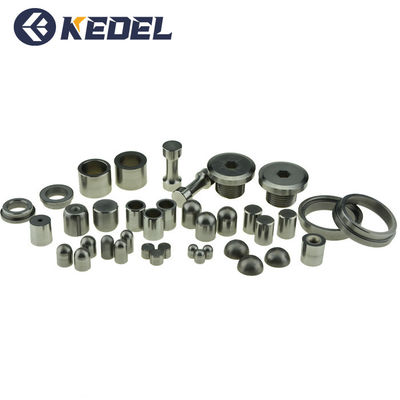

Products Show

Carbide Seal Rings Features:

1. The product has been finely ground, with minimal size and tolerance, and excellent sealing performance.

2. The process formula incorporates corrosion-resistant rare elements for longer lasting sealing properties.

3. Made of high-strength and high-hardness carbide, it is not deformed and more resistant to pressure.



Application:

Widely used in pipeline sealing of petroleum, chemical, machinery, etc.

Tungsten Carbide Mechanical Shaft Seal Mechanical Gear Ring 86HRA 0

Packing & Delivery

Packing Details: Packing tungsten carbide seal ring , use plastic foam, solid plastic box and carton.



Best tungsten carbide seal ring

Our tungsten carbide seal ring products have the advantages of high hardness, corrosion resistance,wear resistance and good toughness.  Our factory accepts non-standard customized products, the price varies with the raw material, the cost and the order quantity.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
