Product Details:
|
| Applicable Industries: | Energy & Mining | Condition: | New |
|---|---|---|---|

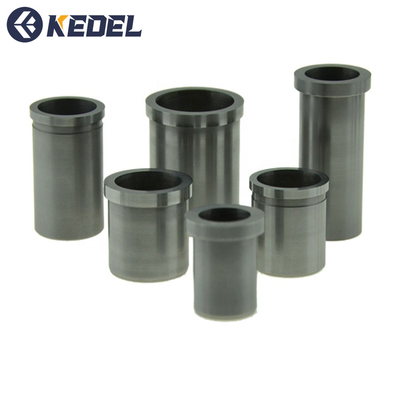

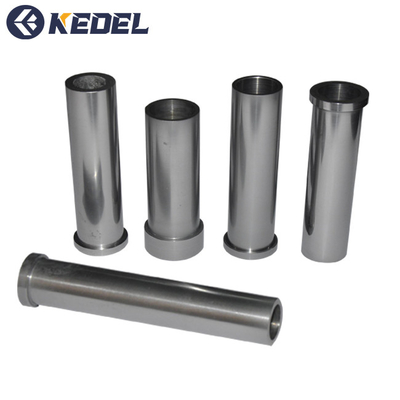

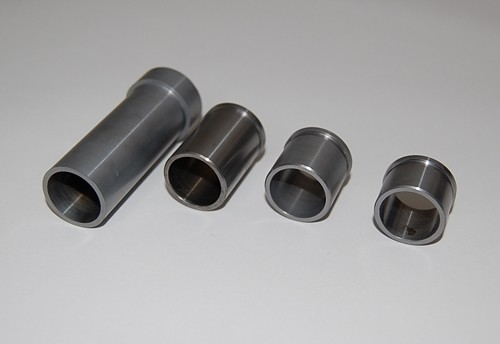

| Product Name: | PDC Bit Carbide Bushings | Material: | 100% Virgin Tungsten Carbide |
| MOQ: | 10pcs | Model No.: | MJP-CSA-2512 |
| Type: | Cleaning Equipments | Grade Recommendation: | YG6, YG8, YG15, YG15C, YG20, YG20C |
| Size/ Type: | 103x103x2.3mm (accept Non-standard Orders) | Applications: | Spray |
| Surface: | Polished | Port: | Shanghai/Shenzhen |
| Highlight: | YG13C Tungsten Carbide Sleeve,YG13C Carbide Spray Bushing,PDC bit carbide bushings Kedel |
||
tungsten carbide nozzle, tungsten carbide jet bit nozzle, oil cemented carbide spray nozzles
We are manufacturer, supplier and exporter of Tungsten Carbide Nozzles with high hardness for 25 years experience in Chengdu, Sichuan, China. The tungsten carbide nozzles we produced with high strength, wear resistance, high precision and excellent temperature resistant, corrosion resistant. Various sizes and type available, and we can make the customized drawing meet our customers' requirement.
Physical and mechanical properties of grades for cemented tungsten carbide nozzle, sheet, board, panel for wear part.
| GRADE | ISO |
DENSITY g/cm³ |
TRS N/mm² |
HARDNESS (HRA) |
APPLICATION | |
| YG6A | K10 | 14.8 | 1750 | 92 |
Excellent wear resistance and strong rigidity,suitable for the maching of cast iron, non-ferrous metal as well as wood,bamboo |
|
| YG8 | K20 | 14.7 | 1900 | 89 |
High bending strength,wear resistance lower than YG6A,used for processing blade, wear resistance parts,ect. |
|
| YG15 | K40 | 14.2 | 2500 | 86.5 |
Used for punching dies,stamping dies and wear resistance parts. |
|
| YG15C | K40 | 14 | 2700 | 85 |
|
|
| YG20 | K40 | 13.5 | 2750 | 84 |
High bending strength,used for step dies and other stamping dies. |
|
| YG20C | K40 | 13.4 | 2800 | 82 |
Dies for wear resistant or impact resistant application. |
Our Company
Workshop and Equipments
Packing and Delivery
Packing Details: Packing PDC carbide cylinder nozzle, use plastic foam, solid plastic box and carton.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
