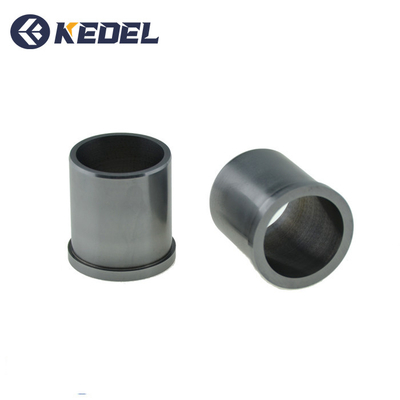

Tungsten Carbide Sintered Flange Shaft Sleeve Bushing For Oil Pump
Tungsten carbide sintered flange shaft sleeve bushing
The cemented carbide axle sleeve is designed for rotating support, aligning anti-thrust, and sealing of motor axles in submerged electric pumps, centrifuges, protectors, and separators. It performs exceptionally in adverse oil field conditions including high-speed rotation, sand abrasion, and gas corrosion. Applications include slide bearing sleeves, motor axle sleeves, aligning bearing sleeves, anti-thrust bearing sleeves, and seal axle sleeves.
Our Advantages
- Manufactured with 100% raw materials with strict incoming inspection
- Overpressure sintering increases alloy densification, extending lifespan by 30%
- Customizable to meet specific customer requirements
Production Process
Milling → Proportioning as required → Wet grinding → Drying → Granulation → Pressing → Sintering → Inspection → Packaging
Specifications
Standard tungsten carbide bushing specifications are shown below. Custom specifications are available upon request with drawings.
| Model | Specification | D | D1 | d | L | L1 |
| MJP-ZGA-101 | 0016 | 16.0 | 13.9 | 10.32 | 50.8 | 3.18 |
| MJP-ZGA-101 | 0014 | 16.0 | 13.9 | 10.32 | 76.2 | 3.18 |
| MJP-ZGA-101 | 0019 | 17.0 | 15.1 | 10.00 | 49.4 | 4.00 |
| MJP-ZGA-101 | 0018 | 22.0 | 18.88 | 14.29 | 25.4 | 3.18 |
| MJP-ZGA-101 | 0020 | 22.0 | 18.88 | 14.29 | 38.1 | 3.18 |
| MJP-ZGA-101 | 0021 | 22.0 | 18.88 | 14.29 | 50.81 | 3.18 |
| MJP-ZGA-101 | 0022 | 22.0 | 18.88 | 14.29 | 57.15 | 3.18 |
| MJP-ZGA-101 | 0023 | 22.0 | 18.88 | 14.29 | 69.85 | 3.18 |
| MJP-ZGA-101 | 0024 | 21.84 | 20.45 | 17.48 | 30.5 | 2.87 |
| MJP-ZGA-101 | 0025 | 23.4 | 21.0 | 15.00 | 61.0 | 4.00 |
| MJP-ZGA-101 | 0026 | 23.4 | 21.0 | 14.8 | 53 | 4.00 |
| MJP-ZGA-101 | 0027 | 23.4 | 21.0 | 14.8 | 61.0 | 4.00 |
| MJP-ZGA-101 | 0028 | 24 | 21.0 | 16.0 | 61.0 | 11 |

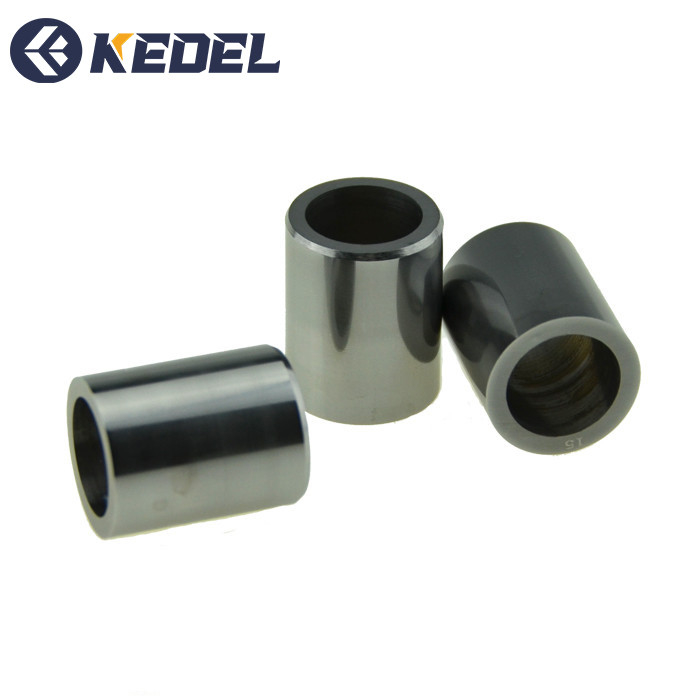

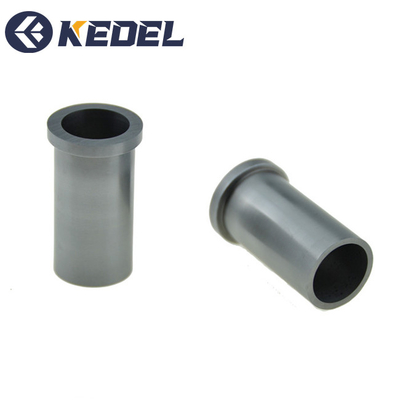

Product Showcase
Our Company
Chengdu Kedel Tools is a professional Chinese manufacturer specializing in tungsten carbide products. We focus on research, development, and production of various cemented carbide tools. With advanced equipment and a skilled technical team, we produce and sell a wide range of cemented carbide products including nozzles, bushings, plates, rods, rings, rotary files, end mills, circular blades, CNC inserts, and custom non-standard parts.
Our tungsten carbide components are exported worldwide to North America, South America, Europe, South Africa, and Southeast Asia. They serve diverse industries including oil and gas, coal mining, mechanical seals, aerospace, steel smelting, metal processing, military, new energy, packaging, printing, and automotive.
Production Equipment
Quality Control Equipment
Product Exhibition
Packing & Delivery
Packing Details: Tungsten carbide bushings are securely packed using plastic foam, solid plastic boxes, and cartons.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: How long is your delivery time?
A: Standard delivery is 5-10 days for in-stock items. Custom orders typically require 15-20 days, depending on quantity.
Q: Do you provide samples? Are they free or extra?
A: Yes, we provide free samples but customers are responsible for shipping costs.
Q: What are your payment terms?
A: For orders ≤$1000: 100% prepayment. For orders >$1000: 30% deposit with balance paid before shipment.
