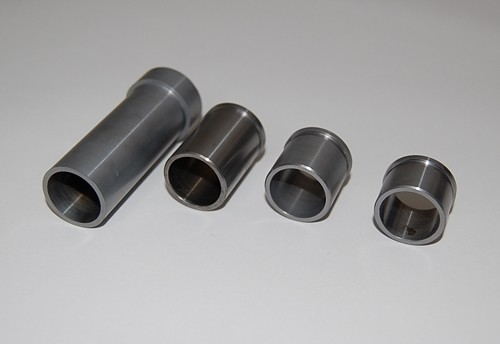

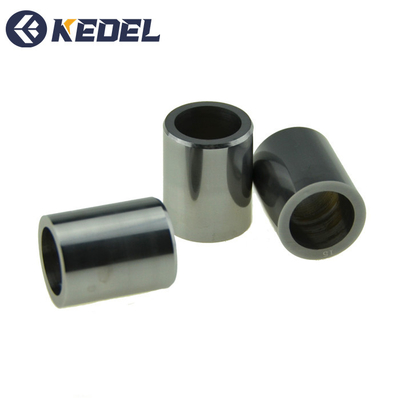

Oil Field Drill Bit YK05 Tungsten Carbide Sleeves / Shaft Sleeve With Keyway
Product Description
Hot Sale Cemented Carbide Axle Sleeve/Shaft Sleeve With Keyway. The cemented carbide axle sleeve is designed for rotating support, aligning anti-thrust and seal of the axle of motors, centrifuges, protectors and separators of submerged electric pumps in adverse working conditions of high speed rotation, sand lash abrasion and gas corrosion in oil fields. Applications include slide bearing sleeves, motor axle sleeves, aligning bearing sleeves, anti-thrust bearing sleeves and seal axle sleeves.
Production Process
Milling → Proportioning as required → Wet grinding → Dry → Granulation → Press → Sinter → Inspection → Package
Our Advantages
- Use 100% raw material with strict incoming inspection
- Overpressure sintering increases densification of alloy teeth and extends lifespan by 30%
- Customizable according to customer requirements
Specifications
Shock-resisting cemented carbide bushing nozzles
| Model |
Specification |
Large Outer Diameter D |
Small Outer Diameter D1 |
Inner Diameter d |
Total Length L |
Step Length L1 |
| MJP-ZGA-301 |
01 |
16.00 |
13.90 |
10.32 |
50.80 |
3.18 |
| MJP-ZGA-301 |
02 |
16.00 |
13.90 |
10.32 |
76.20 |
3.18 |
| MJP-ZGA-301 |
03 |
17.00 |
15.40 |
10.00 |
49.20 |
4.00 |
| MJP-ZGA-301 |
04 |
22.00 |
18.88 |
14.29 |
25.40 |
3.18 |
| MJP-ZGA-301 |
05 |
22.00 |
18.88 |
14.29 |
38.10 |
3.18 |
| MJP-ZGA-301 |
06 |
22.00 |
18.88 |
14.29 |
50.81 |
3.18 |
| MJP-ZGA-301 |
07 |
22.00 |
18.88 |
14.29 |
57.15 |
3.18 |
| MJP-ZGA-301 |
08 |
22.00 |
18.88 |
14.29 |
69.85 |
3.18 |
| MJP-ZGA-301 |
09 |
21.84 |
20.45 |
17.48 |
30.50 |
2.87 |
| MJP-ZGA-301 |
10 |
23.40 |
21.00 |
15.00 |
61.00 |
4.00 |
| MJP-ZGA-301 |
11 |
23.40 |
21.00 |
14.80 |
53.00 |
4.00 |
| MJP-ZGA-301 |
12 |
23.40 |
21.00 |
14.80 |
61.00 |
4.00 |
| MJP-ZGA-301 |
13 |
24.00 |
21.00 |
16.00 |
71.00 |
11.00 |
| MJP-ZGA-301 |
14 |
22.00 |
21.00 |
15.00 |
75.00 |
3.00 |
| MJP-ZGA-301 |
15 |
21.90 |
18.00 |
12.00 |
40.00 |
3.00 |
Related Products
Production Equipment
Quality Control Equipment
Product Exhibition
Company Information
Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. Our company is mainly engaged in research, development and production of various cemented carbide tools. The company has advanced equipment and first-class technical production team to produce and sell cemented carbide products of various shapes, sizes and grades, including cemented carbide nozzles, cemented carbide bushings, cemented carbide plates, cemented carbide rods, cemented carbide rings, cemented carbide rotary files and burrs, cemented carbide end mills and cemented carbide circular blades and cutters, Cemented carbide CNC inserts and other non-standard cemented carbide parts. We are proud that the tungsten carbide parts and components developed and manufactured by Kedel Tools have been exported to North America, South America, Europe, South Africa and Southeast Asia, and our tungsten carbide products are widely used in the following fields: oil and gas industry, coal mining, mechanical seal, aerospace and steel smelting, Metal processing, military industry, new energy industry, packaging and printing industry, auto parts industry, chemical industry.
Packaging & Payment
Packing Details: Packing Carbide oil spray nozzle, use plastic foam, solid plastic box and carton.
Payment supports L/C, D/A, D/P, T/T, Western Union, MoneyGram payments for offline orders.
Why Choose Us
- We are the first manufacturer to produce threaded nozzles in China
- A number of technical backbone workers have worked for more than ten years in the company
- We have professional team and advanced equipment
- All these to ensure our professional and sincere service
- Our Pdc Drill Bit nozzle products have the advantages of high hardness, corrosion resistance, wear resistance and good toughness. Our factory accepts non-standard customized products
FAQ
| Q: Are you trading company or manufacturer? |
A: We are factory. |
| Q: How long is your delivery time? |
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. |
| Q: Do you provide samples? is it free or extra? |
A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment? |
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. |
| Q: Are the picture the same as the real products? |
A: Yes, but the picture only shows some of our sample, if you have more size or special size design requirement, please contact with us before the order. |
| Q: How about the price range? |
A: About the latest price, send an inquiry to us please. We'll try our best to reply this asap. |
