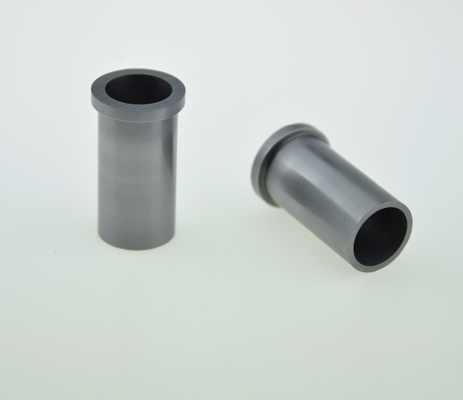

Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber

Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber

Large Image :  Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015
Model Number: KD-2001-05
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece/Pieces
Price: $2.60 - $32.00 / Piece
Packaging Details: foam + small box + carton for packing carbide shaft axle sleeve
Supply Ability: 1000000 Piece/Pieces per Week provide OEM service for carbide shaft axle sleeve
Contact Now

Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber

Description
Type: Sleeve, Broaching, Milling, Other Machining Material: Tungsten Carbide
Product Name: CNC Connector Sleeve Shaft Axle Sleeves Product Material: 100% Original Tungsten Cabride
Surface: Ground Or Unground Size: Customized
Property: Shock Absorber,wear Resistance, Aseessment Report: BV
Certificate: ISO9001:2008 Material Capabilities: Aluminum, Copper, Stainless Steel
Port: Shanghai/Shenzhen
Highlight:

Carbide connector sleeve

,

Kedel Shaft Axle Sleeves

,

BV connector sleeve

CNC Carbide Connector Sleeve Shaft Axle Sleeves Shock Absorber
Product Description

CNC connector sleeve shaft axle sleeves are designed for applications where bushing replacement isn't required during the jig's lifespan. Our headed press fit bushings are available with grinding stock for custom fitting or pre-ground to press fit specifications.

Key Advantages
  • Manufactured from 100% raw materials with strict incoming inspection
  • Overpressure sintering process increases alloy tooth densification, extending lifespan by 30%
  • Fully customizable to meet specific customer requirements
Production Process
Milling
Proportioning
Wet grinding
Dry
Granulation
Press
Sinter
Inspection
Package
Specifications

Standard tungsten carbide bushing specifications are shown below. Custom specifications are available based on customer drawings.

Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 0
Model Specification D D1 d L L1
MJP-ZGA-101 0016 16.0 13.9 10.32 50.8 3.18
MJP-ZGA-101 0014 16.0 13.9 10.32 76.2 3.18
MJP-ZGA-101 0019 17.0 15.1 10.00 49.4 4.00
MJP-ZGA-101 0018 22.0 18.88 14.29 25.4 3.18
MJP-ZGA-101 0020 22.0 18.88 14.29 38.1 3.18
MJP-ZGA-101 0021 22.0 18.88 14.29 50.81 3.18
MJP-ZGA-101 0022 22.0 18.88 14.29 57.15 3.18
MJP-ZGA-101 0023 22.0 18.88 14.29 69.85 3.18
MJP-ZGA-101 0024 21.84 20.45 17.48 30.5 2.87
MJP-ZGA-101 0025 23.4 21.0 15.00 61.0 4.00
MJP-ZGA-101 0026 23.4 21.0 14.8 53 4.00
MJP-ZGA-101 0027 23.4 21.0 14.8 61.0 4.00
MJP-ZGA-101 0028 24 21.0 16.0 61.0 11

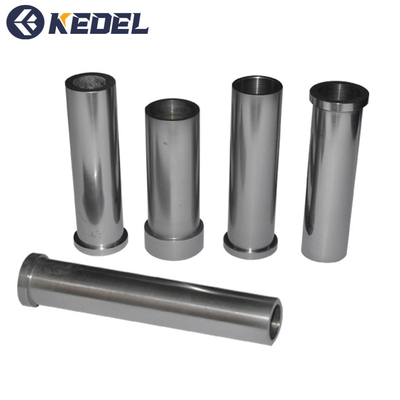

Product Showcase
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 1
Grade Selection Reference
Grade Physical & Mechanical Properties Recommended Applications
YG6 Density: 14.95 g/cm³
HRA: 89.5
TRS: 2580 N/mm²		 Universal grade for machining tools for cast iron, nonferrous metals, alloys, and nonmetal materials; wear parts
YG8 Density: 14.74 g/cm³
HRA: 89
TRS: 2710 N/mm²		 -
YG6X Density: 14.93 g/cm³
HRA: 91
TRS: 2480 N/mm²		 Semi-finishing of hard cast iron, nonferrous metals and alloys; semi-finishing and finishing of common cast iron and high manganese steel workpieces
YG6A Density: 14.89 g/cm³
HRA: 91.5
TRS: 2350 N/mm²		 -
YG8C Density: 14.69 g/cm³
HRA: 87.5
TRS: 2850 N/mm²		 Rock drilling, auger tips, well drilling tools, stone wall drilling, cementing construction, stone material machining
YG11C Density: 14.32 g/cm³
HRA: 86.5
TRS: 2940 N/mm²		 -
Related Products
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 2
Tungsten Carbide Button
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 3
Tungsten Carbide Seal Ring
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 4
Tungsten Carbide Sleeves
Production Equipment
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 5 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 6 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 7 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 8 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 9 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 10
Quality Control Equipment
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 11 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 12 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 13 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 14 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 15 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 16
Product Exhibition
Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 17 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 18 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 19 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 20 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 21 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 22 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 23 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 24 Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 25
Packing & Delivery

Packing Details: Carbide axle sleeves are packed with plastic foam, solid plastic box, and carton for optimal protection during shipping.

Tungsten Carbide CNC Sleeve 16mm Shaft Axle with Shock Absorber 26
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: How long is your delivery time?
A: Standard delivery is 5-10 days for in-stock items. Custom orders typically require 15-20 days depending on quantity.
Q: Do you provide samples? Is there a charge?
A: Yes, we provide free samples; customers only need to cover shipping costs.
Q: What are your payment terms?
A: For orders ≤$1000: 100% prepayment. For orders >$1000: 30% deposit with balance due before shipment.
