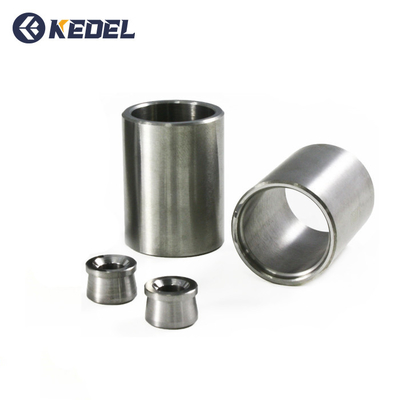

Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm

Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm

Large Image :  Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015
Model Number: KD-2001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Piece/Pieces
Price: $1.00 - $46.60 / Piece
Packaging Details: foam + small box + carton for carbide collar bushings
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 1000 Pieces per month
Contact Now

Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm

Description
Features: Wear-resisting Type: FLANGED, Sleeve
Material: Carbide Product Name: China Minjiang Guide Bushing Polishing Carbide Collar Bushings
Application: Oil Pump Product Material: 100% Original Tungsten Cabride
Finishing: Polished Size: Customized
Bush Types: Tube Grade: YG8C, YK05, Etc
Certificate: ISO9001:2008 Port: Shanghai/Shenzhen
Highlight:

Kedel Carbide drill guide bushing

,

Oil Pump bushing with collar

,

Polishing drill guide bushing

Carbide Drill Guide Bushing Polishing Oil Pump Collar Bushings
Factory-direct guide bushing polishing carbide collar bushings designed for rotating support, aligning anti-thrust, and sealing applications in motors, centrifuges, and submerged electric pumps under demanding conditions including high-speed rotation, sand abrasion, and gas corrosion.
Key Advantages
  • Manufactured with 100% raw materials and strict incoming inspection
  • Overpressure sintering process increases alloy densification, extending lifespan by 30%
  • Customizable to meet specific customer requirements
Production Process
Milling → Proportioning → Wet grinding → Drying → Granulation → Pressing → Sintering → Inspection → Packaging
Specifications
Standard tungsten carbide bushing specifications shown below. Custom specifications available upon request with drawings.
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 0
Model Specification D D1 d L L1
MJP-ZGA-101 0016 16.0 13.9 10.32 50.8 3.18
MJP-ZGA-101 0014 16.0 13.9 10.32 76.2 3.18
MJP-ZGA-101 0019 17.0 15.1 10.00 49.4 4.00
MJP-ZGA-101 0018 22.0 18.88 14.29 25.4 3.18
MJP-ZGA-101 0020 22.0 18.88 14.29 38.1 3.18
MJP-ZGA-101 0021 22.0 18.88 14.29 50.81 3.18
MJP-ZGA-101 0022 22.0 18.88 14.29 57.15 3.18
MJP-ZGA-101 0023 22.0 18.88 14.29 69.85 3.18
MJP-ZGA-101 0024 21.84 20.45 17.48 30.5 2.87
MJP-ZGA-101 0025 23.4 21.0 15.00 61.0 4.00
MJP-ZGA-101 0026 23.4 21.0 14.8 53 4.00
MJP-ZGA-101 0027 23.4 21.0 14.8 61.0 4.00
MJP-ZGA-101 0028 24 21.0 16.0 61.0 11

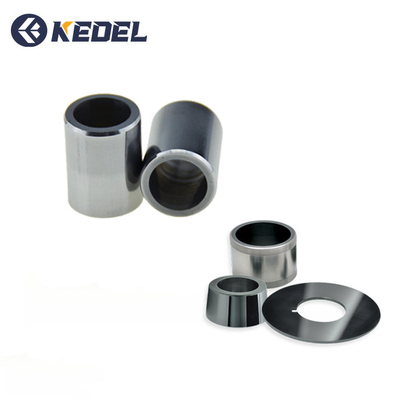

Product Gallery
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 1
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 2
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 3
Related Products
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 4
Tungsten Carbide Button
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 5
Tungsten Carbide Seal Ring
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 6
Tungsten Carbide Sleeves
Production Equipment
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 7
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 8
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 9
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 10
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 11
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 12
Quality Control
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 13
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 14
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 15
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 16
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 17
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 18
Product Exhibition
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 19
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 20
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 21
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 22
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 23
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 24
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 25
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 26
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 27
Packing & Delivery
Each carbide collar bushing is carefully packed using plastic foam, solid plastic boxes, and protective cartons to ensure safe transportation.
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 28
Product Features
Our carbide collar bushings offer superior performance with high hardness, excellent corrosion resistance, exceptional wear resistance, and good toughness. We specialize in custom non-standard products with pricing based on raw materials, production costs, and order quantity.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: How long is your delivery time?
A: Standard delivery is 5-10 days for in-stock items. Custom orders require 15-20 days production time, depending on quantity.
Q: Do you provide samples? Are they free?
A: Yes, we provide free samples but customers must cover shipping costs.
Q: What are your payment terms?
A: For orders ≤$1000: 100% payment in advance. For orders >$1000: 30% deposit with balance paid before shipment.
Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm 29
