Tungsten Carbide External Hexagon Oil Spray Nozzle YG8 Grade 24.03mm OD

Large Image : Tungsten Carbide External Hexagon Oil Spray Nozzle YG8 Grade 24.03mm OD

Product Details:

Place of Origin:	China
Brand Name:	KEDEL
Certification:	ISO9001:2015
Model Number:	WLJ-2524

Payment & Shipping Terms:

Minimum Order Quantity:	20 Piece/Pieces
Price:	Negotiable
Packaging Details:	plastic box +carton
Delivery Time:	25 days
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram
Supply Ability:	5000 pcs per montj

Contact Now

Tungsten Carbide External Hexagon Oil Spray Nozzle YG8 Grade 24.03mm OD

Description

Material:	Tungsten Carbide	MOQ:	20 PCS
Packing:	Planstic Box + Carton Box	Delivery Time:	25 Days
Payment Terms:	T/T,L/C,Western Union, Money Gram	Customized:	Accepted
Grade:	YG8/YG9C/YG11C/YG13C	Supply Ability:	5000 Pcs Per Month
Highlight:	Oil spray head nozzle Petroleum , External Hexagon nozzle Mechanic Industry , spray head nozzle Thread

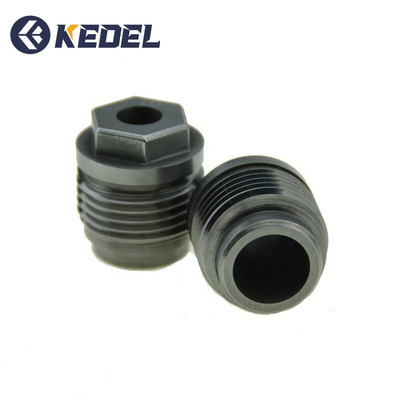

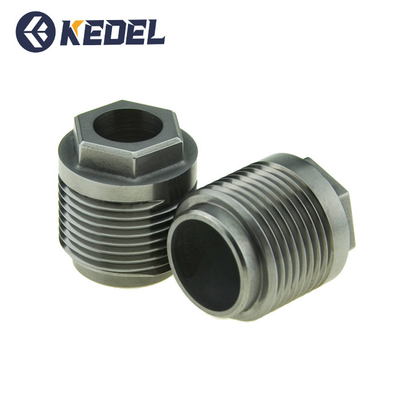

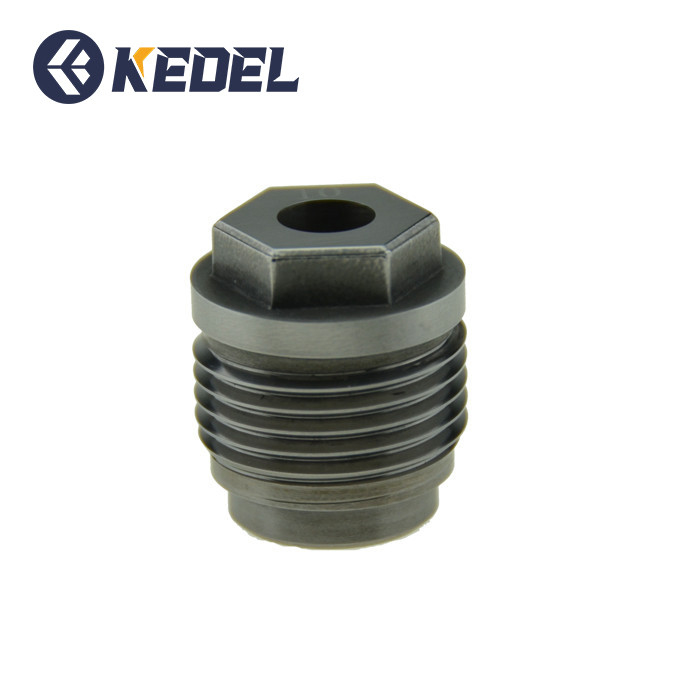

External Hexagon Oil Spray Head Nozzle Thread For Petroleum And Mechanic Industry

Product Description

External Hexagon Oil Spray Head Thread Nozzle designed for petroleum and mechanical industries, manufactured from high-quality tungsten carbide for superior performance in demanding environments.

Key Features

Constructed from premium tungsten carbide material
Exceptional resistance to high temperatures and corrosion
Superior wear resistance for extended service life
Precision-engineered for optimal performance
Designed for harsh industrial conditions

Product Specifications

Product Name	External Hexagon Oil Spray Head Thread Nozzle For Petroleum And Mechanic Industry
Brand	KEDEL
Material	100% Virgin Tungsten Carbide
Grade	YG8/YG11C/YG13C/YG15C
Type	Outer Hexagonal
Application	Drill bit
MOQ	20 PCS

Technical Dimensions

Model	Pore Diameter (B)
MJP-WJA-2416	09# \| 7.14
Outer Diameter (A)	24.03 \| 10# \| 7.95
Total Length (C)	25.40 \| 11# \| 8.74
Thread (M)	15/16"-16UNF \| 12# \| 9.53
Small Outer Diameter (D)	21.13 \| 13# \| 10.31
Length (L)	5.13 \| 14# \| 11.13
Inner Bore (E)	17.47 \| 15# \| 11.91
Inner Chamfer Angle (F×G)	1.14×20° \| 16# \| 12.7
Transition Arc (J)	19.56 \| 17# \| 13.5
Transition Arc (K)	6.86 \| 18# \| 14.29
-	- \| 19# \| 15.08
-	- \| 20# \| 15.8
