Product Details:
|
| Features: | Excellent Wear Resistant And High Hardness, Superior Wear-resistance And Impact Toughness, Wear-resisting, Abrasive Resistance, Corrosion Resistance | Material: | Tungsten Carbide, Metal, Silicon Carbide |
|---|---|---|---|
| Product Name: | Bushing/bush/sleeve/tube, Tungsten Carbide Bushinges&sleeves, Motor Shaft Tungsten Carbide Metal Bearing Sleeve, Customized Wear Tungsten Carbide Bush /bearing Bushing/thrust Sleeve, Tungsten Carbide Sleeve Bushing | Type: | Sleeve, Precision Nonstandard Parts(ODM OEM Service), Tungsten Pipes, Power Tool Parts, Cemented Carbide Bushing |
| Application: | Used For Water Pump, Oil Field, Oil Pump And Other Pump, Anti-corrosion | Grade: | YG8 YG6 YG10X YN6 YN8 YN9, Etc, |
| Highlight: | Cemented Tungsten Carbide Sleeves,Kedel axle shaft sleeve,YG8 Tungsten Carbide Sleeves |
||

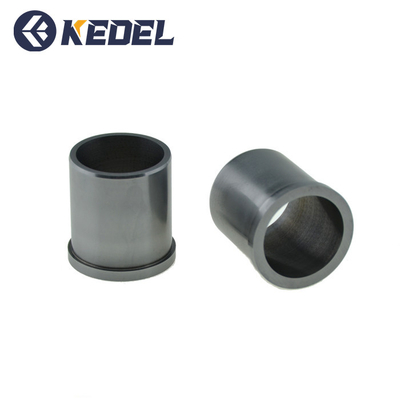

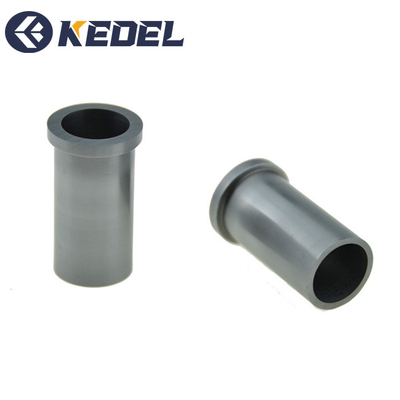

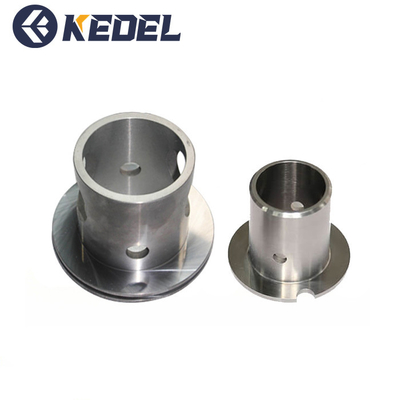

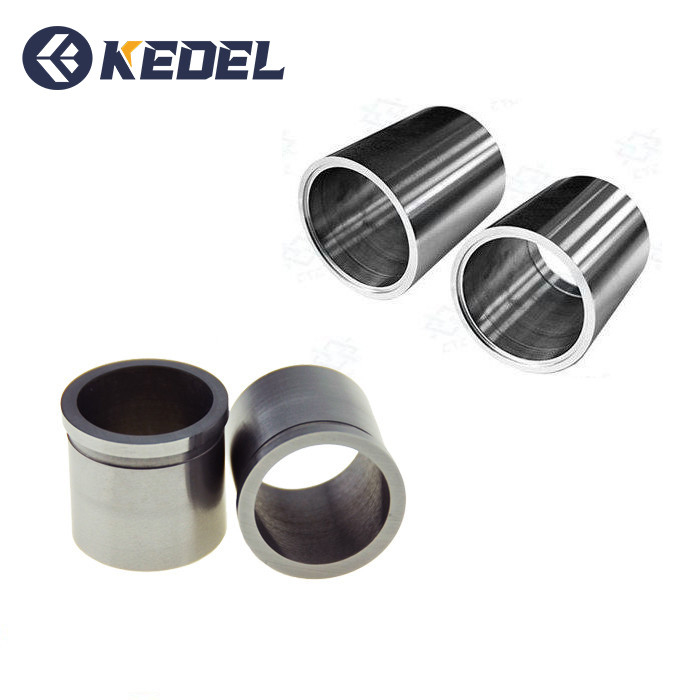

Cemented carbide bushings sleeves is a mechanical part with high wear resistance, high strength and corrosion resistance manufactured by cemented carbide powder pressing and sintering and precision grinding. It is widely used in petroleum machinery, coal mining, chemical sealing, pump valve production and other fields.
Our advantages:
1. 100% Raw material:
Bushings are produced with pure raw materials, which has the characteristics of long service life and stable performance.
2. Maching:
Bushings is processed by high-precision equipment:CNC machining center, grinding machine, milling machine, drilling machine,horizontal milling machine, chamfering machine, Metal Stamping ,CNC cutting machine etc.
3. Multiple sizes available:
We can provide bearing bushings different sizes, complete molds and short delivery time.7-10 days for samples .20-25 working days for mass productions
4. Quality assurance:
Unsurpassed Quality Standards.Our bushings sleeves bearings are designed and manufactured according to stringent quality standards that govern material selection, machining, surface finishing,inspection and packaging.
Common dimension reference:
|
Model No. |
Specification |
OD(D:mm) |
ID(D1:mm) |
Pore(d:mm) |
Length(L:mm) |
Step length(L1:mm) |
|
KD-2001 |
01 |
16.41 |
14.05 |
12.70 |
25.40 |
1.00 |
|
KD-2001 |
02 |
16.41 |
14.05 |
12.70 |
31.75 |
1.00 |
|
KD-2001 |
03 |
22.04 |
18.86 |
15.75 |
31.75 |
3.18 |
|
KD-2001 |
04 |
22.04 |
18.86 |
15.75 |
50.80 |
3.18 |
|
KD-2001 |
05 |
16.00 |
13.90 |
10.31 |
76.20 |
3.18 |
|
KD-2001 |
06 |
22.00 |
18.88 |
14.30 |
25.40 |
3.18 |
|
KD-2001 |
07 |
24.00 |
21.00 |
16.00 |
75.00 |
3.00 |
|
KD-2001 |
08 |
22.90 |
21.00 |
15.00 |
75.00 |
3.00 |
|
KD-2001 |
09 |
19.50 |
16.90 |
12.70 |
50.00 |
4.00 |
|
KD-2001 |
10 |
36.80 |
32.80 |
26.00 |
55.00 |
4.00 |
