Product Details:
|

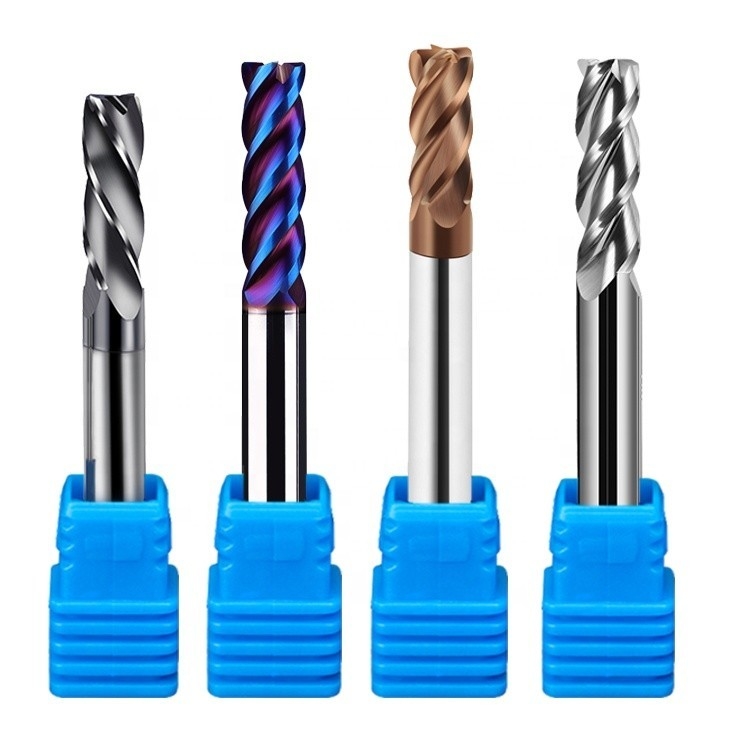

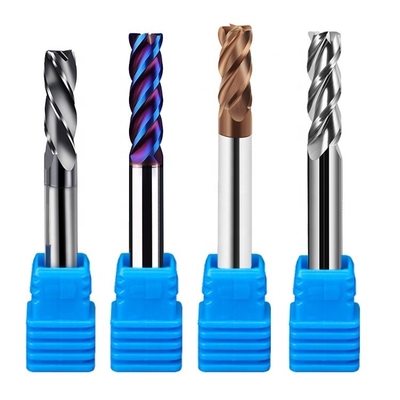

| Product Name: | 4 Flute Solid Tungsten Carbide Milling Cutter End Mill | Application: | Milling Machining |
|---|---|---|---|
| Hrc: | 45/55/60/65 HRC | Flute: | 1F/2F/3F/4F/6F And Customer-made |
| Suitable For: | Carbon Steel, Stainless Steel, Copper, Aluminum, Cast Iron | Diameter: | 1-20mm |
| Overall Length: | 50-150mm | Coating: | AlTiN,TiAIN, TiN, NANO, |
| High Light: | 4 Flute Carbide Indexable Cutters,Hrc65 Solid End Mill,D10 Carbide Indexable Cutters |
||

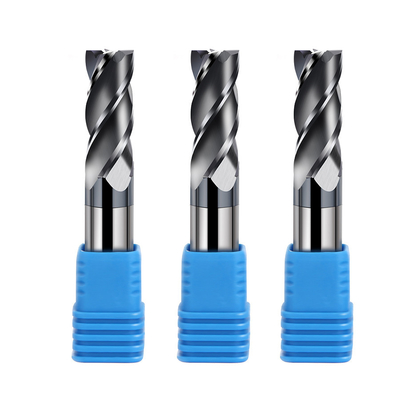

Carbide milling cutters are mainly used in CNC machining centers, CNC engraving machines and high-speed machines. They can also be installed on ordinary milling machines to process some hard and uncomplicated heat treatment materials. The 55 degree 4 flutes tungsten steel flat end milling cutter produced by Kedel has the characteristics of high hardness, strong wear resistance and provides you with sharp, wear-resistant and long-life cutting tools.
Advantage characteristics:
1. High quality alloy raw materials
Our company adopts imported raw materials with ultra-fine grain size to provide guarantee for the performance of products with high wear resistance and high strength.
2. Unique technology
Processing with imported equipment.Grinding machine like Walter, Anca and Rollomati. The cutter edge fine grinding process has good chip removal effect, high-speed machining and high finish.
3. Excellent chip removal groove design
Sharp angle and front angle knife edge fine grinding, 4 flutes geometric design, with large capacity chip removal, making the cutting more smooth, non stick knife, realizing high-efficiency machining, high workpiece precision and good gloss.
4. Specifications and models are complete, and conventional models are in stock.

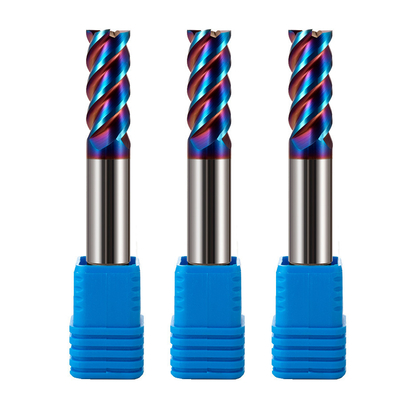

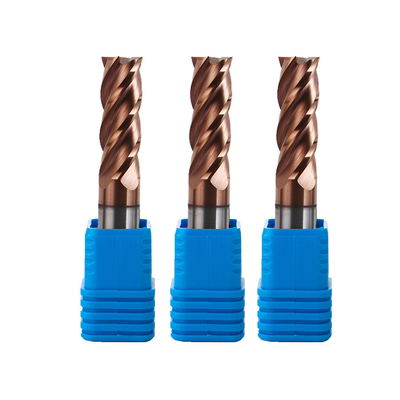

5. PVD Nano-structure coating
PVD coating provides for superior control of coating grain size from 10nm to 500nm, achieves excellent hardness, good oxidation,resistance and improved reduction of the resistance and improved reduction of the coefficient of friction.
General dimension reference:
| Size | D(mm) | Lc(mm) | d(mm) | L(mm) |
| 1*50 | 1 | 3 | 4 | 50 |
| 1.5*50 | 1.5 | 4 | 4 | 50 |
| 2*50 | 2 | 6 | 4 | 50 |
| 2.5*50 | 2.5 | 6 | 4 | 50 |
| 3*50 | 3 | 8 | 4 | 50 |
| 3.5*50 | 3.5 | 10 | 4 | 50 |
| 4*50 | 4 | 10 | 4 | 50 |
| 4*75 | 4 | 16 | 4 | 75 |
| 4*100 | 4 | 20 | 4 | 100 |
| 6*50 | 6 | 15 | 6 | 50 |
| 6*75 | 6 | 24 | 6 | 75 |
| 6*100 | 6 | 30 | 6 | 100 |
