Product Details:
|
Product Name: | Carbide Turning Inserts | Coating: | CVD/PVD/TIAN /TLIAN /TIN Etc, |
---|---|---|---|
Usage: | External Turning Tool | Hardness: | 92HRC |
Application: | Internal External Turning Inserts | Color: | Gray/golden/black |
Grade: | K10-K30 | Package: | Plastic Box+Wood Carton |
High Light: | TNMG 160404 Carbide CNC Inserts,metal lathe tools TNMG,K10 Carbide CNC Inserts |

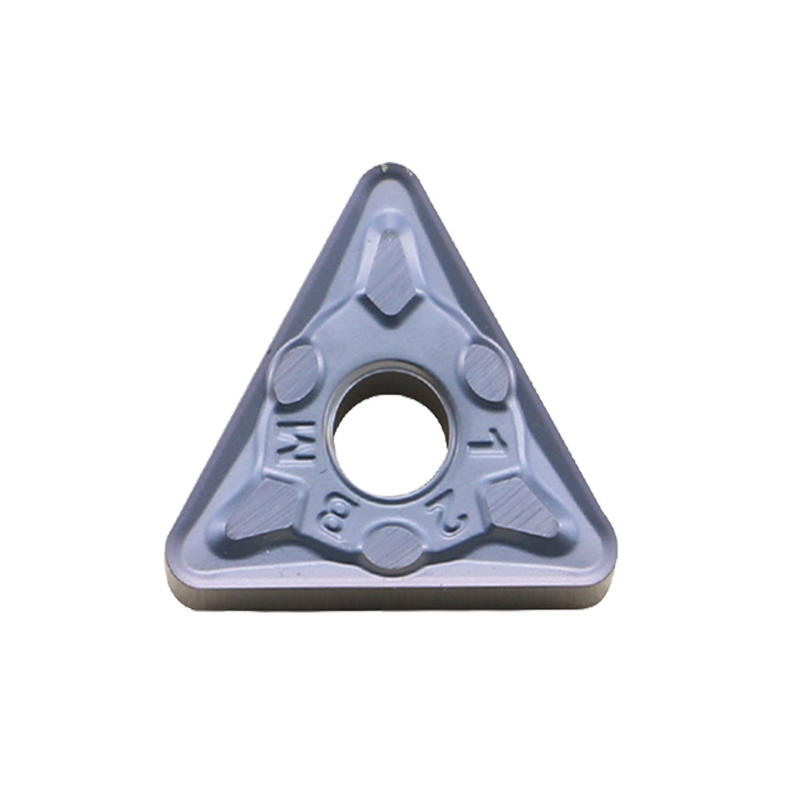

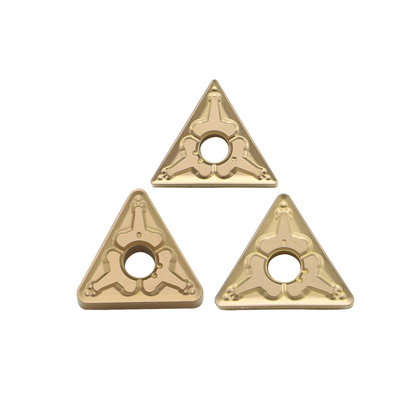

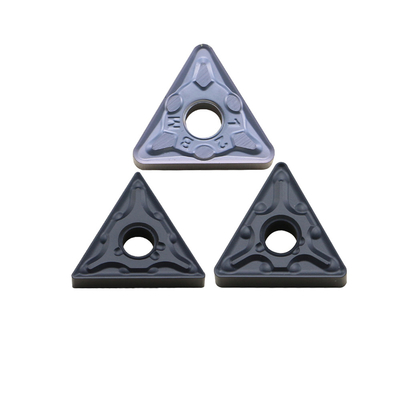

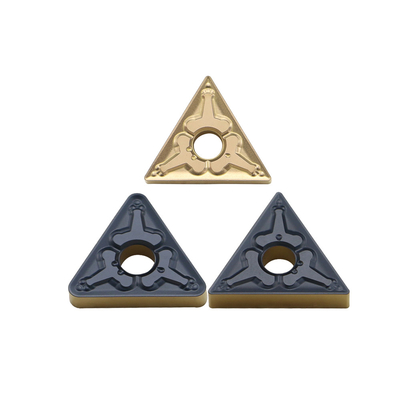

TNMG 160404 Carbide Inserts External Turning Tools CNC Metal Lathe Tools TNMG For Stainless Steel
Cemented carbide CNC T-series turning inserts are commonly used in mechanical lathe processing. They have the characteristics of sharp blade, smooth chip breaking, wear resistance and durability. They can be used for the processing of steel parts, stainless steel, cast iron, aluminum alloy and other materials. They are not easy to stick the knife,and have a long service life.
Good Features:
1. High wear-resistant, good smoothness;
2. Fine coating, easy to slotted;
3. Exellent performance, nanometer coating
4. Sharp blade, smooth cutting;
5. Steel material, easy handle.
Model | TNMG160404/08/12 | TNMG2204/08/12 | TNMG270612 |
Grade | KD2115,KD2125,KD3215 | ||
Wordpiece | steel/harded steel/stainless steel/cast iron | ||
Coating | CVD/PVD coating | ||
MOQ | 10 PCS | ||
Package | 10 pcs in one box | ||
Service | OEM/ODM |
Recommended material as below:
Grade | ISO Code | Density g/cm³ |
Hardness HRA |
T.R.S MPa |
Applications recommended |
YG3 | K05 | 15.10 | 92.0 | 1400 | Suitable for finishing of cast iron and nonferrous metal. |
YG6X | K10 | 14.95 | 91.5 | 1800 | The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
YG6 | K15 | 14.95 | 90.5 | 1900 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
YG8 | K20 | 14.80 | 89.5 | 2200 | |
YW1 | M10 | 13.10 | 91.6 | 1600 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
YW2 | M20 | 13.00 | 90.6 | 1800 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
YT15 | P10 | 11.4 | 91.5 | 1600 | Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
YT14 | P20 | 11.6 | 90.8 | 1700 | Suitable for the finishing and semi-finishing of steel and cast steel. |
YT5 | P30 | 12.9 | 90.5 | 2200 | Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
