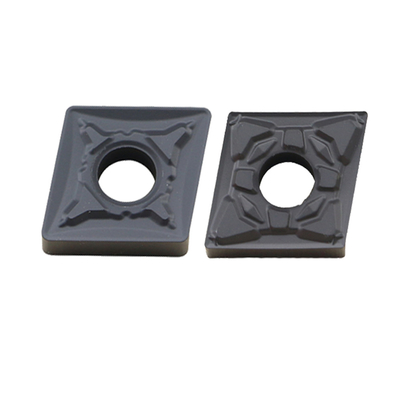

CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool

CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool

Large Image :  CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: DNMG120404
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: $0.60 - $8.00 / Piece
Packaging Details: box +carton
Delivery Time: 5-7 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20000 pcs per months

CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool

Description
Product Name: Carbide Turning Inserts Coating: CVD/PVD/TIAN /TLIAN /TIN Etc
Usage: Cnc Cutting Tools Material: 100% Virgin Raw Material,CNC Insert Cutting Tool Carbide Turning Inserts
Color: Gray/golden/black Hardness: 92HRC
Application: Metalworking Tool Package: 10pcs/plastic Box
High Light:

PVD Coating Carbide CNC Inserts

,

Metalworking Tool tungsten carbide inserts

,

CVD Coating Carbide CNC Inserts

     CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 0

     Cnc carbide turning insert SNMG DNMG120404 DNMG120408 DNMG120412 DNMG150612 DNMG190608 DNMG190612



   Kedel tungsten carbide indexable inserts with sharp cutting edge can reduce the vibration of machining process, which is beneficial to the insert surface with low roughness.
Optimized chipbreaker structure improve the cutting performance and chipping control, contributing to easy and fast cutting. The combination of specific substrate and coating, well balanced the different wear patterns of center inserts and surrounding inserts.



Chipbreaker introduction


CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 1

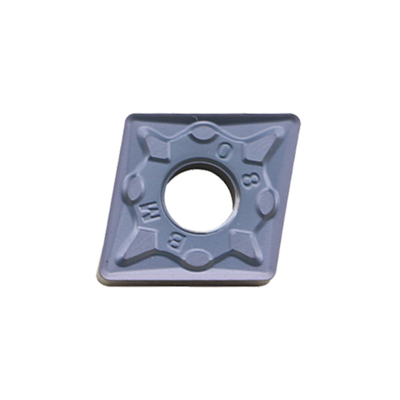

OPF-for steel finishing
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 2

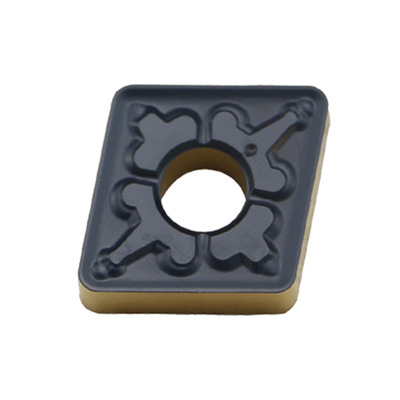

OPM-for steel semi-finishing
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 3

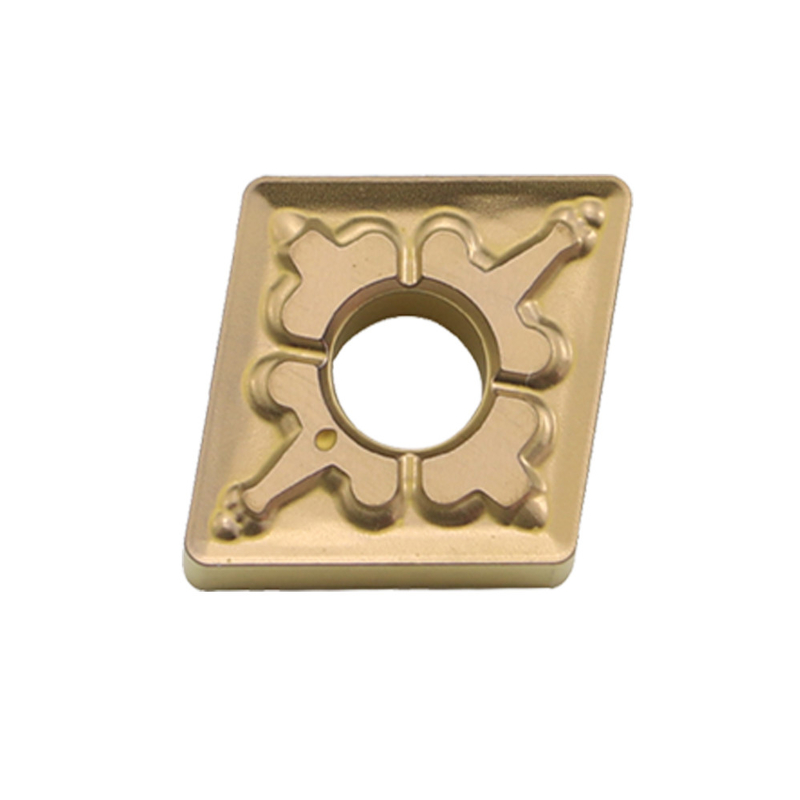

OPR-for steel roughing
CNMG1204 series grade introduction
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 4

KD2125

Color: black Hardness: 1480 Coating way: CVD(TICN+AL2O2) Work piece:steel Advantage:good wear-resistance Feature: the first choice for steel finishing and semi-finishing.



Specifications
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 5
Type
S
Ød
r
CNMG120404
4.76
5.16
0.4
CNMG120408
4.76
5.16
0.8
CNMG120412
4.76
5.16
1.2
CNMG120416
4.76
5.16
1.6













CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 6
TNMG120408
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 7
CNMG120408
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 8
SNMG120408
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 9
SNMG190612
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 10
RCMX1003
CVD / PVD Coating Carbide CNC Inserts CNC Cutting Metalworking Tool 11
CCMT09T304

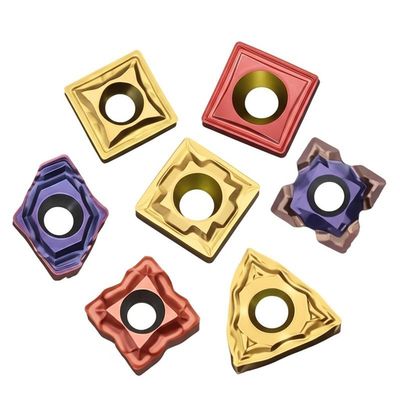

Major Products:

Milling Inserts:APMT APKT RDMT RPMT LNMU BLMP SEKT SDMT SOMT SEKN SEEN SPKN

TPKN TPKR TPMR 3PKT WNMU SNMU ONMU AOMT JDMT R390 BDMT

Turning Inserts: CNMG CCMT SNMG SCMT WNMG TNMG TCMT DCMT DNMG VNMG VBMT KNUX

Grooving Inserts: MGMN MRMN N151 N123 ZTFD TDC2 TDC3 TDC4

Inserts for aluminium: APGT APKT CCGT DCGT VCGT RCGT SCGT SEHT TCGT ZTED

Threading Inserts: 11IR 11ER 16ER 16IR 22ER 22IR
