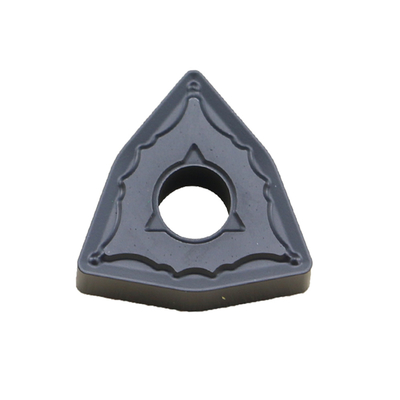

Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter

Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter
Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter

Large Image :  Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: WNMG080404
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Price: $0.60 - $18.00 / Piece
Packaging Details: box +carton
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 pcs per months

Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter

Description
Product Name: WNMG 080404 MS Lathe Cutter External Turning Tools Carbide CNC Inserts Material: 100% Virgin Raw Material
Usage: External Turning Tool Coating: CVD/PVD/TIAN /TLIAN /TIN Etc
Hardness: 92HRC Color: Gray/golden/black
Grade: K10-K30 Workpiece: Steel\ Stainless\ Cast Iron
High Light:

Semi Finishing Carbide CNC Inserts

,

92HRC tungsten carbide indexable inserts

,

K30 Carbide CNC Inserts

Steel Semi-Finishing WNMG080404 Carbide Turning Inserts Indexable Cutting Tool Cutter



Kedel tungsten carbide indexable inserts with sharp cutting edge can reduce the vibration of machining process, which is beneficial to the insert surface with low roughness.
Optimized chipbreaker structure improve the cutting performance and chipping control, contributing to easy and fast cutting. The combination of specific substrate and coating, well balanced the different wear patterns of center inserts and surrounding inserts.



Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter 0

 Specifications:



Type
Dimension
L
ΦI.C
S
Φd
r
WNMG060404
6.5
9.525
4.76
3.81
0.4
WNMG060408
6.5
9.525
4.76
3.81
0.8
WNMG080404
8.7
12.7
4.76
5.16
0.4
WNMG080408
8.7
12.7
4.76
5.16
0.8
WNMG080412
8.7
12.7
4.76
5.16
1.2
WNMG080416
8.7
12.7
4.76
5.16
1.6



Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter 1



Steel Semi Finishing Carbide CNC Inserts Indexable Cutting Tool Cutter 2
