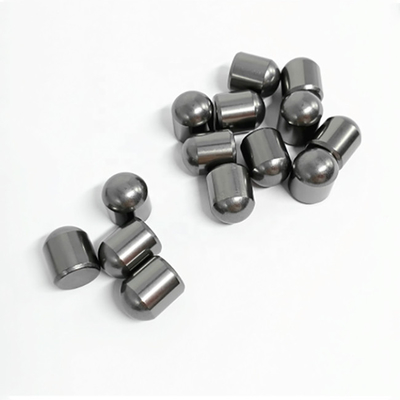

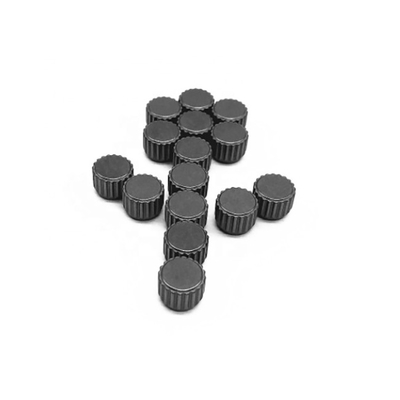

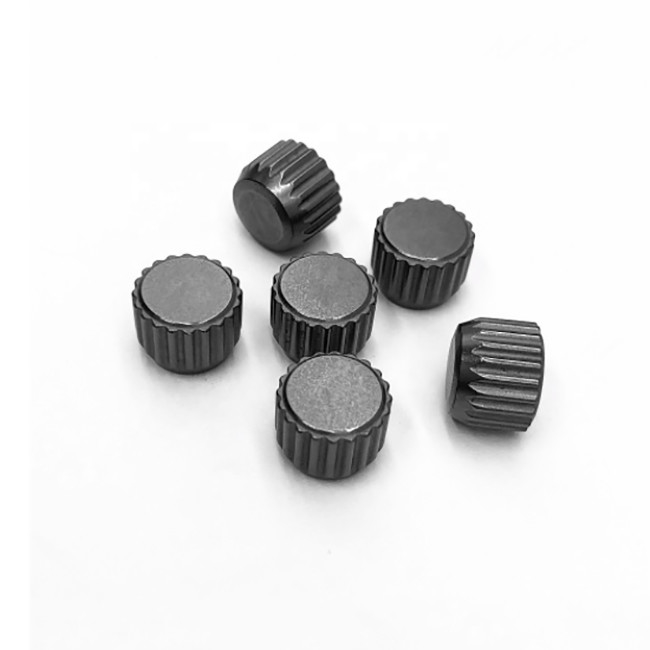

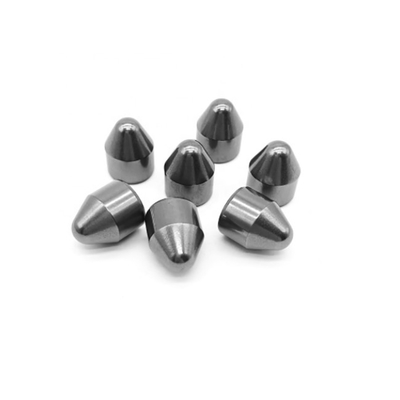

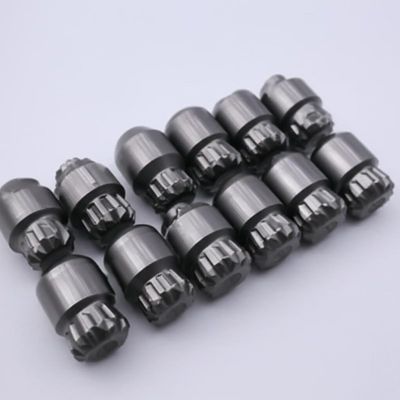

Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits

Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits
Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits

Large Image :  Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: KD-4001
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Price: $0.60 - $18.00 / Piece
Packaging Details: box +carton
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 pcs per months

Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits

Description
Features: High Strength, Good Wear Resistance Product Name: Carbide Wearing Teeth
Material: WC+CO Grade: YG8 YG10,YG10X,YG11C
Usage: Drilling Parts Hardness: 89.5-92.0
Service: OEM,ODM Surface: Rough Or Polished
High Light:

Oil Mining Tungsten Carbide Wear Parts

,

Serrated tungsten carbide teeth

,

Drilling Bits Tungsten Carbide Wear Parts

Tungsten Carbide Wear Parts Carbide Serrated Button Teeth For Oil Mining Drilling Bits



1. Material of Tungsten Carbide Button Teeth Insert Carbide Button Tips Gauge Protection for Mine Drill Bit

We use 100% virgin tungsten carbide material to reach the requires of good wear resistance and high impact resistance



2. Application of Tungsten Carbide Button Teeth Insert Carbide Button Serrated Tips Gauge Protection for Mine Drill Bit

The carbide button tips is welded onto the stabilizer to wear protection of oil-field and mining drill bits, mounted around the drill bit, to preveny excessive wear on the outer diameter of the bit and extend its service life.



3. Optional Grade of tungsten carbide tips for stabilizer:

Various grade is provided,like K30 / K40 / YG8 / KD8 / YG9 etc. or custom grade for cemented carbide button tips gauge protection of drill bits as per request are also available.



4. Some sizes of tungsten carbide button tooth for drill bits FYI

Type Dimensions
Diameter Height
SP07207 7.2 7
SP08207 8.2 7
SP09208 9.2 8
SP10208 10.2 8
SP14815 14.8 15
SP16215 16.2 15
SP17818 17.8 18
SP20217 20.2 17



5. Features of Hot sales Cemented Carbide Button Insert Carbide Button Tips for Mining Machinery parts

As for cemented carbide buttons , below are the general features for your reference. For more details of specific type, please inform us.

1) Made of special and excellent tungsten carbide raw material, have more stable properties, increase the yield of complete drilling and mining bit substantially;

2) Extra grain size available, have higher impact resistance and lower hot crack and breakage;

3) Ground and tumbled, ensuring uniform of dimension and surface smoothness, easier to mount;

4) HIP sintered, increase the strength substantially therefore extend service time;



Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits 0  Serrated Button Teeth Tungsten Carbide Wear Parts For Oil Mining Drilling Bits 1





Full range of types and specifications available.OEM & ODM is welcome.

Remark:

Not all listed, other dimension & types, and custom made carbide button inserts for stabilizer or other tungsten carbide products are also available!
