Product Details:
|
Material: | Tungsten Carbide | Thread: | 3/4-12UNF,1-12UNF, |
---|---|---|---|
Grade: | YG9C,YG11C | Prcessing: | Sintered |
Servide: | ODM,OEM | Application: | Mud Spray |
Warranty: | 1 Year | Quality Control: | Anti Corrosion\Anti Rust |
High Light: | Sintered Cemented Carbide Tools,PDC Bit Cemented Carbide Tools,threaded carbide nozzle |
Factory direct supply tungsten carbide thread nozzle YG8 YG10 YG15 for PDC bit
Carbide threaded nozzles are mainly used in PDC bits for drilling and mining and are made of all hard aggregates. It has high wear resistance, high strength and corrosion resistance. Kedal Tools can produce various types of carbide threaded nozzles, that is to say, there are standard products from world-renowned drilling and production companies, and ODM and OEM customized services can be accepted.
Product introduction:
Cemented carbide threaded nozzle is usually used on oil drill bits, which can clean drill bits and excavated bottoms, and is firm, wear-resistant, and has a long service life. Carbide nozzle is solid and durable, and has high cost performance. The cemented carbide nozzle is made of precision machinery and cemented carbide materials, with bending resistance of 2300N/mm and hardness of 90 degrees. When machining cemented carbide nozzles, we need to achieve precision grinding and surface treatment.
Product features:
1, 100% vergin raw material;
2, Different grades and sizes of nozzles are available according to customer requirements;
3) We have advanced precision grinding equipment and testing equipment to ensure high-quality products;
4) More than 10 years of production experience, rich production technology of workers to ensure product consistency;
5) Stable product quality and perfect after-sales service;
6) The product has high strength, high abrasion resistance and strong impact resistance;
Material grade performance table:
Grade | Co(%) | Density(g/cm3 ) | Hardness(HRA) | TRS(NN/mm²) |
YG6 | 5.5-6.5 | 14.90 | 90.50 | 2500 |
YG8 | 7.5-8.5 | 14.75 | 90.00 | 3200 |
YG9 | 8.5-9.5 | 14.60 | 89.00 | 3200 |
YG9C | 8.5-9.5 | 14.60 | 88.00 | 3200 |
YG10 | 9.5-10.5 | 14.50 | 88.50 | 3200 |
YG11 | 10.5-11.5 | 14.35 | 89.00 | 3200 |
YG11C | 10.5-11.5 | 14.35 | 87.50 | 3000 |
YG13C | 12.7-13.4 | 14.20 | 87.00 | 3500 |
YG15 | 14.7-15.3 | 14.10 | 87.50 | 3200 |

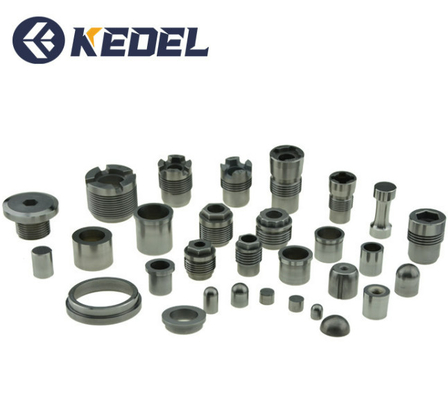

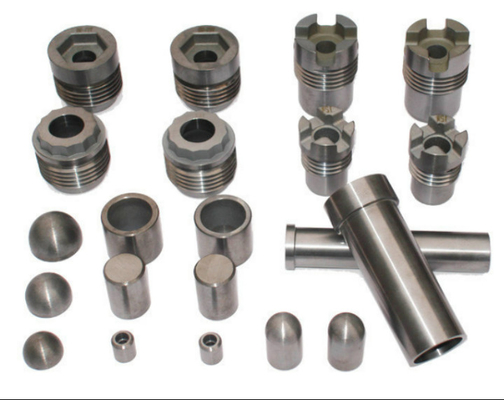

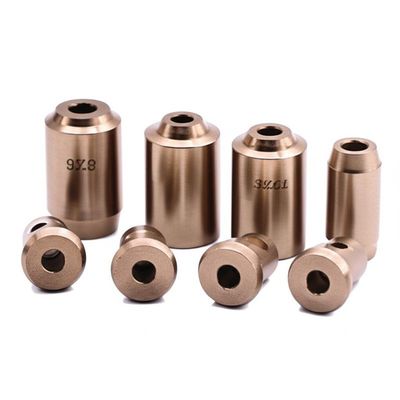

Product detail drawing:
Product application:
