High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit

High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit
High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit
High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit

Large Image :  High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit

Product Details:
Place of Origin: Sichuan,China
Brand Name: KEDEL
Certification: ISO9001:2005
Model Number: KD-0001
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: 15-20USD
Packaging Details: plastic box + carton box
Delivery Time: 3-4 weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 10000 PCS per month

High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit

Description
Features: High Strength\High Wear Resistance Material: Tungsten Carbide
Thread: 3/4-12UNF,1-12UNF, Grade: YG9C,YG11C
Prcessing: Sintered Servide: ODM,OEM
Application: Mud Spray Warranty: 1 Year
High Light:

YG10 tungsten carbide thread nozzle

,

YG8 tungsten carbide thread nozzle

,

PDC Bit tungsten carbide nozzles

Factory direct supply tungsten carbide thread nozzle YG8 YG10 YG15 for PDC bit







Product introduction:



Carbide threaded nozzles are mainly used in PDC bits for drilling and mining and are made of all hard aggregates. It has high wear resistance, high strength and corrosion resistance. Kedal Tools can produce various types of carbide threaded nozzles, that is, there are standard products from world-renowned drilling and production companies, and ODM and OEM customized services are acceptable.


Carbide threaded nozzles are usually used on oil drill bits, which can clean the drill bit and the bottom of the excavation, and are firm, wear-resistant, and have a long service life. Carbide nozzles are durable and cost-effective. The cemented carbide nozzle is made of precision machinery and cemented carbide material, with a bending strength of 2300N/mm and a hardness of 90 degrees. When machining cemented carbide nozzles, we need to achieve precision grinding and surface treatment.



Product features:



1. 100% virgin material;
2. Nozzles of different grades and sizes can be provided according to customer requirements;
3) We have advanced precision grinding equipment and testing equipment to ensure product quality;
4) More than 10 years of production experience, rich production skills of workers, to ensure product consistency;
5) Stable product quality and perfect after-sales service;
6) This product has high strength, wear resistance and strong impact resistance;



Material grade performance table:

Grade Co(%) Density(g/cm3 ) Hardness(HRA) TRS(NN/mm²)
YG6 5.5-6.5 14.90 90.50 2500
YG8 7.5-8.5 14.75 90.00 3200
YG9 8.5-9.5 14.60 89.00 3200
YG9C 8.5-9.5 14.60 88.00 3200
YG10 9.5-10.5 14.50 88.50 3200
YG11 10.5-11.5 14.35 89.00 3200
YG11C 10.5-11.5 14.35 87.50 3000
YG13C 12.7-13.4 14.20 87.00 3500
YG15 14.7-15.3 14.10 87.50 3200

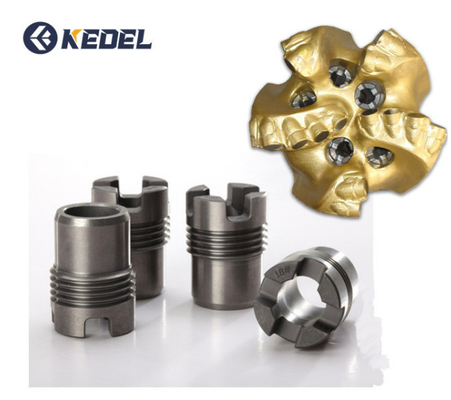

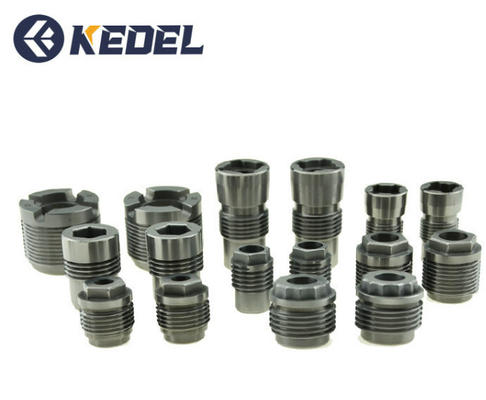

Product detail drawing:

High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit 0

Product application:

High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit 1

High Wear Resistance Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit 2
