Product Details:
|
Type: | Power Tool Parts | Product Name: | CIRCULAR SLITTER BLADE |
---|---|---|---|
Material: | Tungsten Carbide | Application: | Industrial Process Usage |
Finishing: | Polishing | Size: | Dia220/230/240/280mm |
Advantage: | Perfect High Cutting Efficiency | Certificate: | ISO9001:2008 |
Packing: | Carton | Thickness Tolerance: | ±0.01mm |
Port: | Shanghai,Guangzhou, | ||
Highlight: | Carbide Circular Slitter Knives,Dia 220mm Tungsten Carbide Blades,Dia 230mm Tungsten Carbide Blades |
Kedel Tools can produce various kinds of corrugated paper cutting circular knives, which can be matched with 20 multi brand models around the world, or customized to produce non-standard blades. Welcome to inquire!

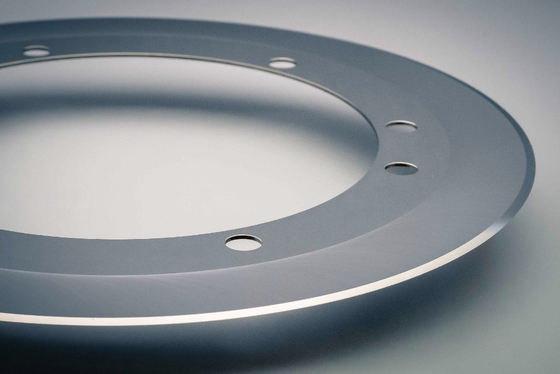

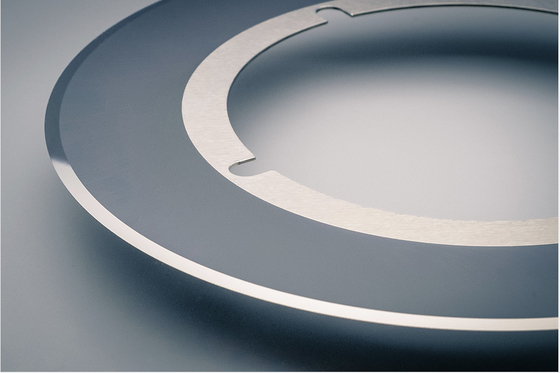

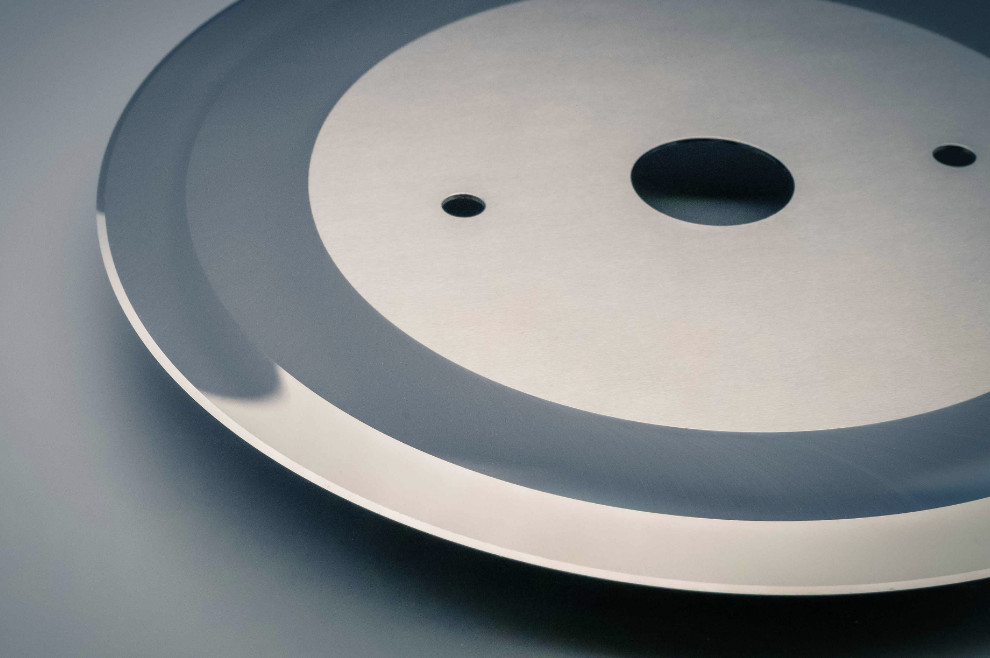

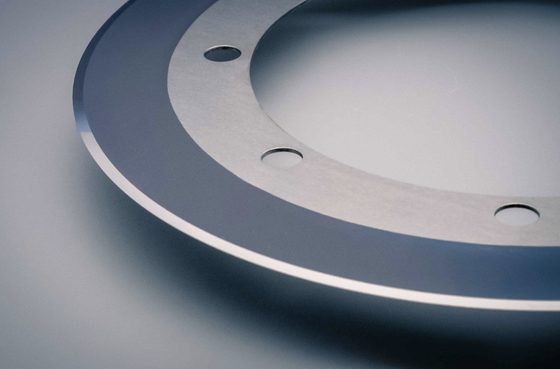

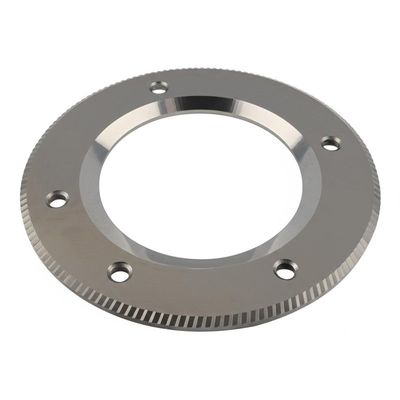

The corrugated paper slitting circular knife is a cemented carbide industrial slitting knife used on the corrugated cardboard production line slitting machine. Usually a knife is equipped with two diamond online grinding wheels to ensure that the blade is always sharp. Our company is the original tool supplier for many internationally renowned corrugated paper equipment manufacturers.
Kedel tungsten carbide knives advantages:
1, 100% virgin materials;
2, Micro-grain tungsten carbide;
3, Outstanding hardness and toughness;
4, Excellent wear and impact resistance;
5, Result in a clean-cut finish;
6, Extreme durability and extended service life;
7, Maximize performance;
8, Minimize downtime;
9, Varied sizes are available.
Main Materials:
Grade | Grain Size | Density (g/cm³) | Hardness (HRa) | T.R.S (N/m㎡) | Application |
YG12X | Submicron | 13.9-14.3 | 90.8-91.5 | 3200 | Suitable for processing cardboard |
The long-term cooperation with many well-known overseas and domestic corrugated cardboard enterprises is witnessed Kedel’s advanced techniques. We use the original raw material WC model through the precision grinding machine processing.
Model NO. | Sizes | Applicable machine |
F0001 | 220*115*1-3*9 | Agmari |
F0002 | 230*110*1.1-6*9 | Fosber |
F0003 | 230*135*1.1 | Fosber |
F0004 | 240*32*1.2-2*8.5 | BHS |
F0005 | 240*115*1-3*9 | Agmari |
F0006 | 250*150*0.8 | Peters |
F0007 | 257*135*1.1 | Fosber |
F0008 | 260*140*1.5 | Isowa |
F0009 | 260*168.3*1.2 | Marquip |
F0010 | 270*113*1.25 | Egypt |
F0011 | 280*202*1.4 | Mitsubishi |
F0012 | 291*203*1 | Mitsubishi |
For the corrugated cardboard conversion and carton manufacturing industry, we can offer you high performance Slitting Blades for machines like Agnati, BHS, Fosber, Gopfert, Isowa, Marquip,Mitsibishi, Peters, TCY. Actually, we can also produce the knives and blades according to your specific demands as per your drawing or sample. We welcome you to get a free quotation from us to get additional suggestions and options.
