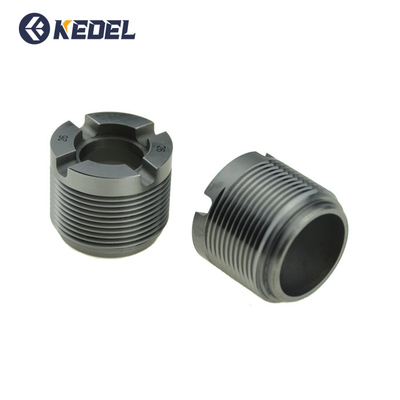

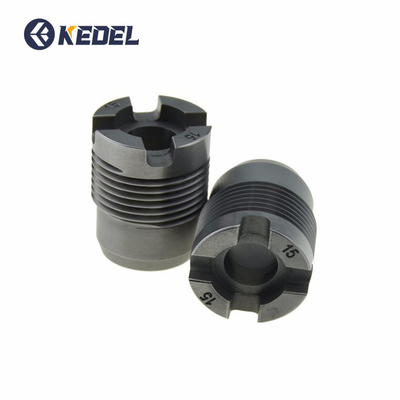

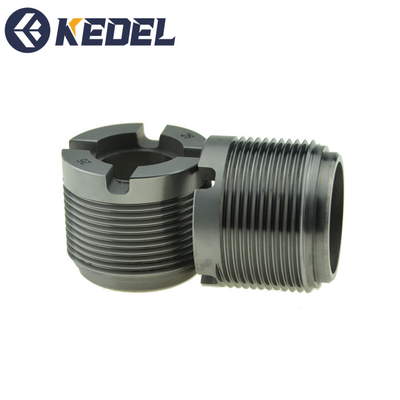

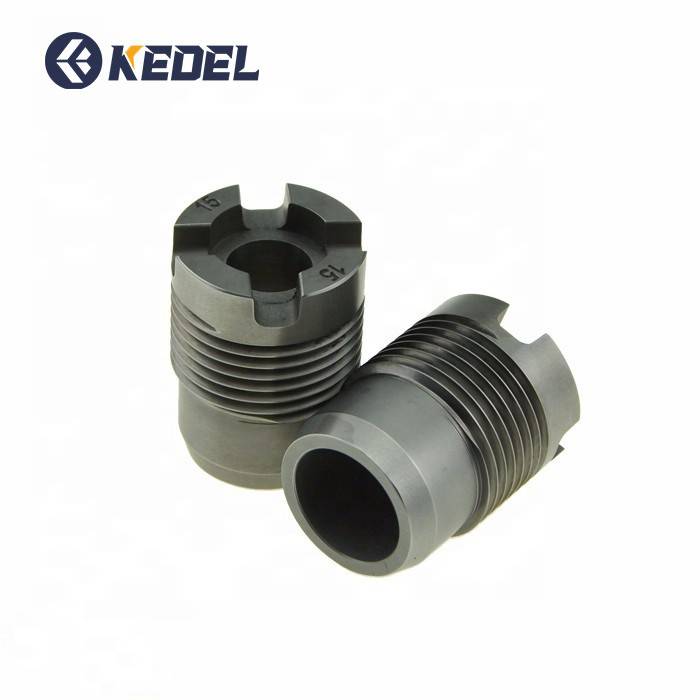

PDC Drill Bit Thread Cemented Tungsten Carbide Alloy Jet Spray Nozzle
Cemented carbide nozzle, also known as the tungsten carbide nozzle, is primarily used in chemical, food processing, machinery, metallurgy, and construction industries for applications including pulverizing, derusting, cleaning, and atomization. Our premium-quality hard alloy nozzles are manufactured from high-grade raw materials and feature exceptional temperature resistance, corrosion resistance, wear resistance, and precision.
Production Process
- Milling
- Proportioning as required
- Wet grinding
- Dry
- Granulation
- Press
- Sinter
- Inspection
- Package
Product Specifications
Below are two standard models. We also accept custom specifications based on your drawings.
Model: MJP-CSA-2512
| Parameter | Value |
|---|
| Outer Diameter | 25.21 |
| Total Length | 34.80 |
| Thread | 1-12UNF-2A |
| Small Outer Diameter | 22.2 |
| Length | 15.6 |
| Endoporus | 15.8 |
| Transition Arc(J) | 12.5 |
| Transition Arc(K) | 12.5 |
Model: MJP-CSA-2012
| Parameter | Value |
|---|
| Outer Diameter | 20.44 |
| Total Length | 30.61 |
| Thread | 3/4-12UFN-A-2A |
| Small Outer Diameter | 16.1 |
| Length | 11.56 |
| Endoporus | 12.6 |
| Transition Arc(J) | 12.7 |
| Transition Arc(K) | 12.7 |
Detailed Specifications
Model MJP-CSA-2512
| Parameter | Value |
|---|
| Outer Diameter (A) | 25.21 |
| Total Length (C) | 34.80 |
| Thread (M) | 1-20UN-2A |
| Small Outer Diameter (D) | 22.2 |
| Length (L) | 15.6 |
| Endoporus (E) | 15.8 |
| Chamfer Angle (F*G) | 3.4*20° |
| Transition Arc (J) | 12.5 |
| Transition Arc (K) | 12.5 |
Pore Diameter Options
| Size | Diameter (B) |
|---|
| 09# | 7.14 |
| 10# | 7.95 |
| 11# | 8.74 |
| 12# | 9.53 |
| 13# | 10.31 |
| 14# | 11.13 |
| 15# | 11.91 |
| 16# | 12.7 |
| 17# | 13.5 |
| 18# | 14.29 |
| 19# | 15.08 |
| 20# | 15.8 |
| 22# | 17.48 |
Product Gallery
Related Nozzle Products
Company Profile
Chengdu Kedel Tools is a professional Chinese manufacturer specializing in tungsten carbide products. We focus on research, development, and production of various cemented carbide tools. Equipped with advanced machinery and a skilled technical team, we produce carbide products in diverse shapes, sizes, and grades including:
- Cemented carbide nozzles
- Cemented carbide bushings
- Cemented carbide plates and rods
- Cemented carbide rotary files and burrs
- Cemented carbide end mills
- Cemented carbide CNC inserts
- Custom non-standard carbide parts
Our products are exported worldwide and serve industries including oil & gas, coal mining, aerospace, steel smelting, metal processing, military, and automotive sectors.
Why Choose Us
- China's first manufacturer of threaded nozzles
- Experienced technical team with 10+ years expertise
- Advanced production equipment
- Professional service and quality assurance
Related Products
Production Facilities
Quality Control Equipment
Product Exhibition
Packaging & Shipping
Packaging Details: PDC Drill Bit nozzles are securely packed using plastic foam, solid plastic boxes, and cartons for optimal protection during transit.
Product Certifications
Our PDC Drill Bit nozzles offer superior hardness, corrosion resistance, wear resistance, and toughness. We accept custom orders for non-standard products, with pricing based on material specifications, production costs, and order quantity.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: What is your delivery time?
A: Typically 5-10 days for in-stock items, or 15-20 days for out-of-stock items, depending on order quantity.
Q: Do you provide samples? Are they free?
A: Yes, we provide free samples but the customer covers shipping costs.
Q: What are your payment terms?
A: For orders ≤$1000, 100% payment in advance. For orders >$1000, 30% deposit with balance paid before shipment.
