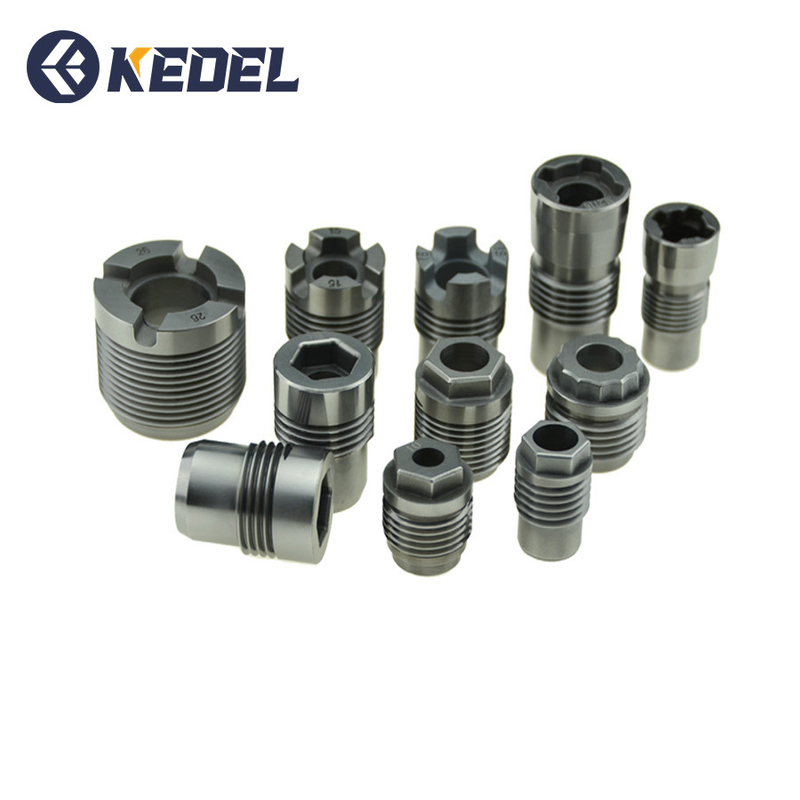

YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits

YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits

Large Image :  YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits

Product Details:
Place of Origin: Sichuan, China
Brand Name: KEDEL
Certification: ISO9001:2015
Model Number: WLJ-2722
Payment & Shipping Terms:
Minimum Order Quantity: 10-49 Pieces
Price: $18.00
Payment Terms: T/T,L/C,Western Union,MoneyGram
Contact Now

YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits

Description
Type: Coal Mining Tool, Oil Field Drill Bit Parts, Cross Slot Alloy Nozzle Grade: YG8/YG15/YG6X/YG6/YG20
Application: Petroleum, Chemical And Mech Material: Tungsten Carbide WC+Co
Product Name: Pdc Drill Bit Nozzle Surface: Finished
Commodity Name: Spherical Button Drill Bit MOQ: 10PCS
Selling Units: Single Item Single Package Size : 23X21X16 Cm
Single Gross Weight: 0.160 Kg Package Type: Foam + Small Box + Carton PDC Drill Bit Nozzle External Hexagon Alloy Nozzle And Spray Nozzle
Highlight:

Tungsten Carbide Thread Nozzle YG8

,

PDC Bit Thread Nozzle

,

Finished Tungsten Carbide Thread Nozzle

Factory Direct Supply Tungsten Carbide Thread Nozzle YG8 YG10 YG15 For PDC Bit

Factory direct sales of high quality wholesale carbide tungsten carbide PDC drill bit nozzles. The cemented carbide threaded nozzle is primarily used on PDC bits for drilling and mining applications, manufactured from all hard aggregate materials. These nozzles feature exceptional wear resistance, high strength, and corrosion resistance.

Key Features
  • Made from premium tungsten carbide materials (YG8, YG10, YG15 grades)
  • Exceptional wear resistance for extended service life
  • High strength construction for demanding drilling applications
  • Excellent corrosion resistance
  • Available in standard configurations or custom designs
  • ODM and OEM customization services available
Production Process
  1. Milling
  2. Proportioning as required
  3. Wet grinding
  4. Drying
  5. Granulation
  6. Pressing
  7. Sintering
  8. Inspection
  9. Packaging
Product Specifications

Below are two standard models. We also accept custom specifications based on your drawings.

Model MJP-CSA-2512 Model MJP-CSA-2012
Outer Diameter 25.21 Outer Diameter 20.44
Total Length 34.80 Total Length 30.61
Thread 1-12UNF-2A Thread 3/4-12UFN-A-2A
Small Outer Diameter 22.2 Small Outer Diameter 16.1
Length 15.6 Length 11.56
Endoporus 15.8 Endoporus 12.6
Transition Arc(J) 12.5 Transition Arc(J) 12.7
Transition Arc(K) 12.5 Transition Arc(K) 12.7
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 0
Model MJP-CSA-2512
Outer Diameter (A) 25.21
Total Length (C) 34.80
Thread (M) 1-20UN-2A
Small Outer Diameter (D) 22.2
Length (L) 15.6
Endoporus (E) 15.8
Chamfer Angle (F*G) 3.4*20°
Transition Arc (J) 12.5
Transition Arc (K) 12.5
Pore Diameter (B)
09# 7.14
10# 7.95
11# 8.74
12# 9.53
13# 10.31
14# 11.13
15# 11.91
16# 12.7
17# 13.5
18# 14.29
19# 15.08
20# 15.8
22# 17.48
Model MJP-CSA-2012
Outer Diameter (A) 20.44
Total Length (C) 30.61
Thread (M) 3/4"-16UNF-2A
Small Outer Diameter (D) 16.1
Length (L) 11.56
Endoporus (E) 12.6
Chamfer Angle (F*G) 1*20°
Transition Arc (J) 12.7
Transition Arc (K) 12.7
Pore Diameter (B)
09# 7.14
10# 7.95
11# 8.74
12# 9.53
13# 10.31
14# 11.13
15# 11.91
16# 12.7
Model MJP-CSA-2002
Outer Diameter (A) 20.30
Total Length (C) 30.80
Thread (M) M20*2-6h
Small Outer Diameter (D) 16.1
Length (L) 11.55
Endoporus (E) 12.7
Chamfer Angle (F*G) 2.4*20°
Transition Arc (J) 12.7
Transition Arc (K) 12.7
Pore Diameter (B)
09# 7.14
10# 7.95
11# 8.74
12# 9.53
13# 10.31
14# 11.13
15# 11.91
16# 12.7

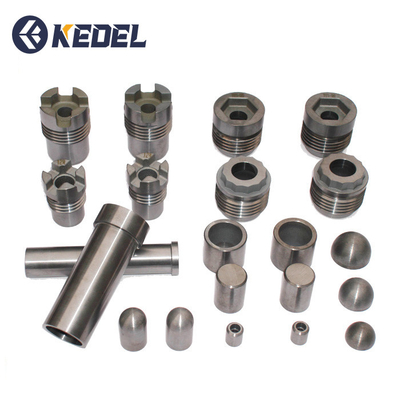

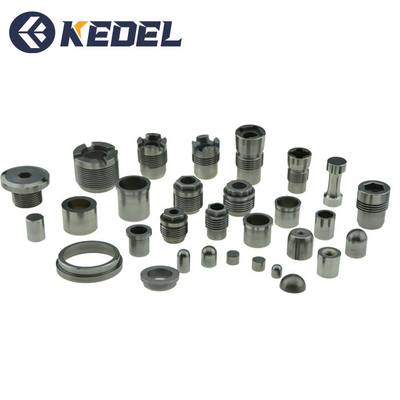

Product Showcase
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 1
Additional Nozzle Types
Cinquefoil Alloy Nozzle
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 2
Model MJP-YHA-2712
Outer Diameter (A) 27.00
Total Length (C) 25.24
Thread (M) 1 1/16-12UNF-2A
Small Outer Diameter (D) 21.9
Length (L) 5
Endoporus (E) 17.03
Chamfer Angle (F*G) 1*45°
Transition Arc (J) 12.7
Transition Arc (K) 12.7
Company Information

Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. Our company specializes in research, development and production of various cemented carbide tools. With advanced equipment and a first-class technical production team, we produce and sell cemented carbide products of various shapes, sizes and grades, including:

  • Cemented carbide nozzles
  • Cemented carbide bushings
  • Cemented carbide plates
  • Cemented carbide rods
  • Cemented carbide rings
  • Cemented carbide rotary files and burrs
  • Cemented carbide end mills
  • Cemented carbide circular blades and cutters
  • Cemented carbide CNC inserts
  • Other non-standard cemented carbide parts

Our tungsten carbide parts and components are exported to North America, South America, Europe, South Africa and Southeast Asia, serving industries including:

  • Oil and gas industry
  • Coal mining
  • Mechanical seal
  • Aerospace
  • Steel smelting
  • Metal processing
  • Military industry
  • New energy industry
  • Packaging and printing industry
  • Auto parts industry
  • Chemical industry
Why Choose Us
  • We are the first manufacturer to produce threaded nozzles in China
  • Our technical team includes workers with over ten years of experience
  • Professional team and advanced equipment
  • Commitment to professional and sincere service
Related Products
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 3
Tungsten Carbide Button
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 4
Tungsten Carbide Seal Ring
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 5
Tungsten Carbide Sleeves
Production Equipment
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 6
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 7
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 8
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 9
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 10
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 11
Quality Control Equipment
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 12
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 13
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 14
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 15
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 16
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 17
Product Exhibition
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 18
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 19
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 20
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 21
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 22
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 23
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 24
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 25
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 26
Packing & Delivery

PDC Drill Bit nozzles are packed using plastic foam, solid plastic boxes, and cartons for optimal protection during shipping.

YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 27
Product Applications
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 28
YG8 Tungsten Carbide Nozzle 25.21mm Outer Diameter for PDC Bits 29
Product Advantages

Our PDC Drill Bit nozzle products offer superior hardness, corrosion resistance, wear resistance and excellent toughness. We accept non-standard custom product requests, with pricing based on raw material costs, production requirements, and order quantity.

Frequently Asked Questions
Q: Are you a trading company or manufacturer?

A: We are the factory.

Q: How long is your delivery time?

A: Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.

Q: Do you provide samples? Are they free or extra?

A: Yes, we offer samples free of charge but the customer pays for freight costs.

Q: What are your payment terms?

A: For orders ≤$1000, 100% payment in advance. For orders >$1000, 30% T/T deposit with balance paid before shipment.
