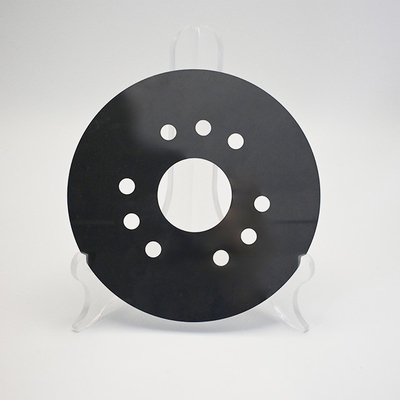

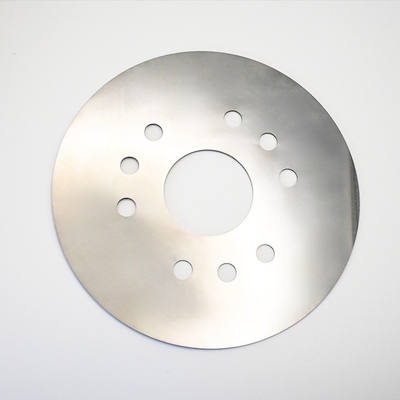

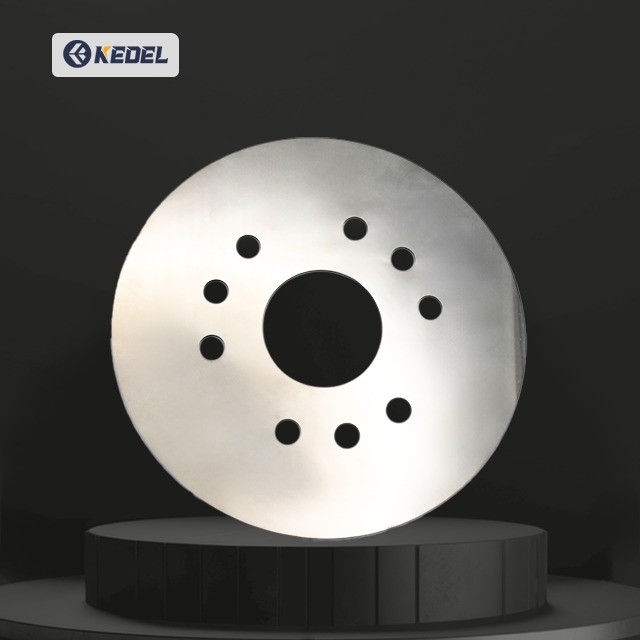

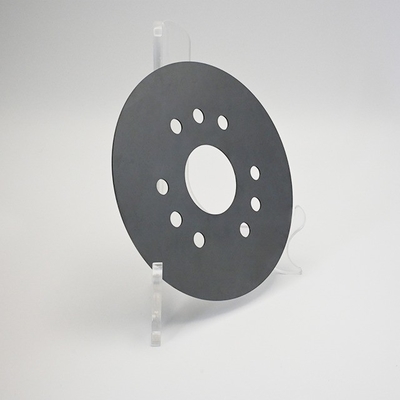

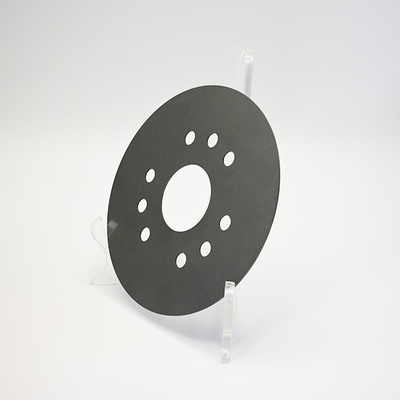

Nine Hole Circular Knife with Longer Cutting Life and Custom Size for Die-cutting Applications

Large Image : Nine Hole Circular Knife with Longer Cutting Life and Custom Size for Die-cutting Applications

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	CN¥356.89/pieces 5-199 pieces

Contact Now

Nine Hole Circular Knife with Longer Cutting Life and Custom Size for Die-cutting Applications

Description

Place Of Origin:	Sichuan, China	Warranty:	6 Months
Video Outgoing-inspection:	Not Available	Machinery Test Report:	Provided
Core Components:	Gear	Type:	Blade
Brand Name:	Kedel	Product Name:	Nine Hole Round Blade
Material:	100% Carbide Powder Raw Material	Advantage:	Longer Cutting Life
Size:	Customer's Drawing	Packing:	Plastic Box Packing
Application Machine:	DIE CUTTING MACHINE	Shape:	Round Shape
OEM & ODM:	Support	MOQ:	5 Pieces
Color:	Silver
Highlight:	Nine Hole Circular Knife Blade , Die Cutting Round Blade , Cemented Circular Knife Blade

Circular Knife Cemented Tungsten Carbide Blade Nine Hole Die-cutting Round Blade

High-performance cemented tungsten carbide blade designed for precision die-cutting applications.

Material Specifications

Grade	Composition (% in weight)	Density g/cm³ (±0.1)	Hardness HRA (±0.5)	TRS Mpa (min)	Porosity	Grain size (μm)
WC	Ni	Ti	TaC
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.00	2700.00	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.80	3800.00	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.50	2500.00	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.00	3200.00	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.00	3200.00	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.00	3200.00	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.50	3200.00	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.00	3200.00	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.50	3000.00	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.70	3500.00	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	13.0	-	-	14.20	87.00	3500.00	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.50	3500.00	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.50	3500.00	A02/B00/C00	1.6-2.4
KD118/YG8X	91.5	8.5	-	-	14.50	93.60	3800.00	A02/B00/C00	0.4-0.6
KD338/YG12X	88.0	12.0	-	-	14.10	92.80	4200.00	A02/B00/C00	0.4-0.6
KD25/P25	77.4	8.5	6.5	6.0	12.60	91.80	2200.00	A02/B00/C00	1.0-1.6
KD35/P35	69.2	10.5	5.2	13.8	12.70	91.10	2500.00	A02/B00/C00	1.0-1.6
KD10/M10	83.4	7.0	4.5	4.0	13.25	93.00	2000.00	A02/B00/C00	0.8-1.2
KD20/M20	79.0	8.0	7.4	3.8	12.33	92.10	2200.00	A02/B00/C00	0.8-1.2

NOTE: Customization available per customer drawing or actual sample

Frequently Asked Questions

How to obtain an accurate quotation from Kedel Tools?

Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.

How does our company ensure the quality of its products?

We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

How long does a typical production cycle take?

For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

What is our company's payment method?

We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
