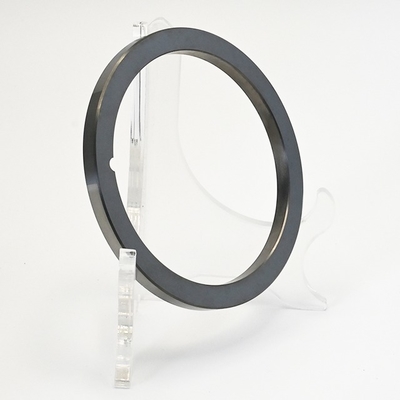

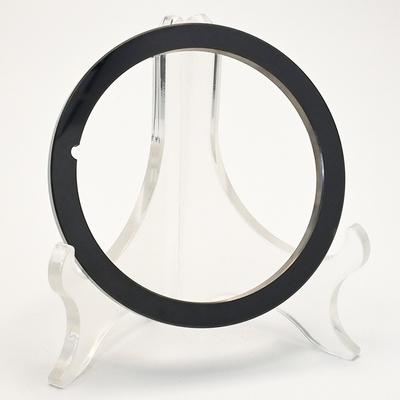

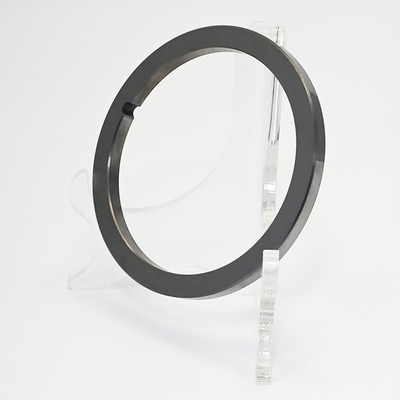

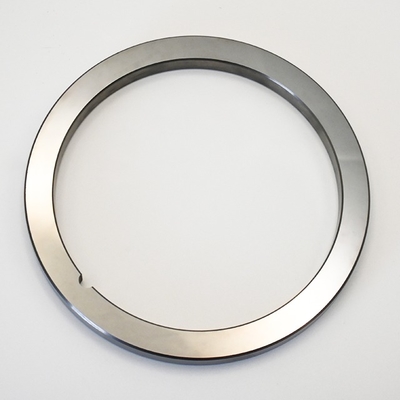

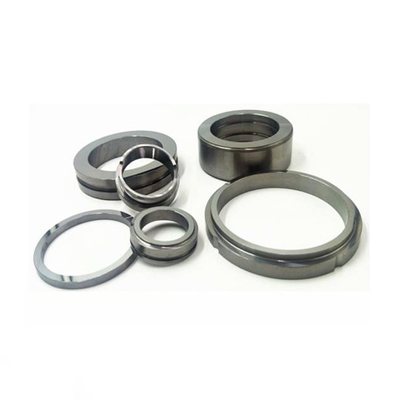

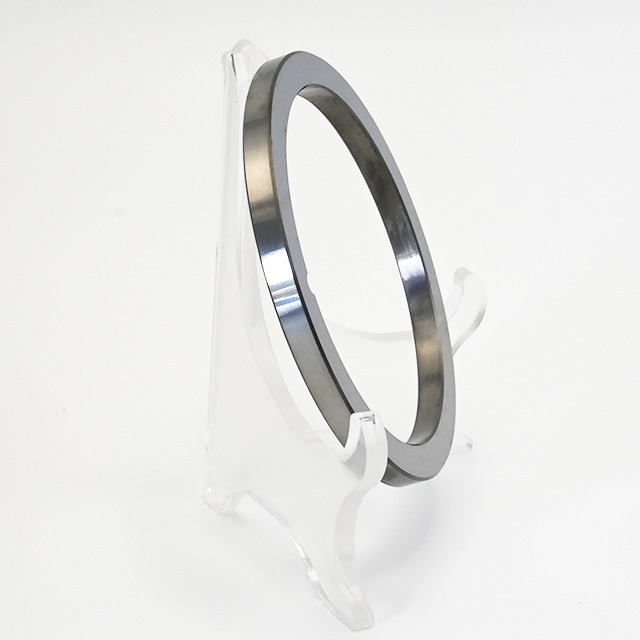

Custom Cemented Tungsten Carbide Alloy Positioning Groove Sealing Ring Sealing High-Performance Pumps YG8 YG9C YG11 YG13

Name: Custom Cemented Tungsten Carbide Alloy Positioning Groove Sealing Ring Sealing High-Performance Pumps YG8 YG9C YG11 YG13
Brand: Chengdu Kedel Technology Co.,Ltd
Price: 40.50 USD
Availability: InStock

All Products

Cemented Carbide Tools
(22)

Cemented Carbide Nozzle
(55)

Tungsten Carbide Sleeves
(20)

Cemented Carbide Buttons
(31)

Tungsten Carbide Rods
(16)

Tungsten Carbide Plates
(9)

Tungsten Carbide Seal Ring
(17)

Tungsten Carbide Blades
(19)

Carbide Rotary Burr
(20)

Tungsten Carbide End Mill
(22)

Tungsten Carbide Brazed Tips
(5)

Tungsten Carbide Valve
(5)

Carbide CNC Inserts
(10)

Tungsten Carbide Wear Parts
(14)

Circular Slitting Knife
(10)

Industrial Cutting Tools
(50)

Ungrouped
(0)

Certification

Customer Reviews

Kedel tool’s sales is very professional and patient, and when we get the goods, the carbide knives’ quality exceeds our expectations.We will maintain our cooperation and continue to repurchase products, hoping for a long-term partnership.

—— Emilia Baczynska

A very friendly factory that helps us deal with any problems in a timely manner. The quotation is very fast, and the staff is very friendly. Working together is worry free and enjoyable.

—— Susan Garnet

A very friendly factory that helps us deal with any problems in a timely manner. The quotation is very fast, and the staff is very friendly. Working together is worry free and enjoyable.

—— Kamlesh Patel

High cost-effective products, professional services, fast transportation, Kedel Tool are the one of the most trustful companies I know.

—— Andrey Skutin

I'm Online Chat Now

Custom Cemented Tungsten Carbide Alloy Positioning Groove Sealing Ring Sealing High-Performance Pumps YG8 YG9C YG11 YG13

Large Image : Custom Cemented Tungsten Carbide Alloy Positioning Groove Sealing Ring Sealing High-Performance Pumps YG8 YG9C YG11 YG13

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	$13.50-68 / piece

Contact Now

Custom Cemented Tungsten Carbide Alloy Positioning Groove Sealing Ring Sealing High-Performance Pumps YG8 YG9C YG11 YG13

Description

Surface:	Glossy	Power Source:	Electric
Engine Type:	Electric	Product Name:	Silicon Carbide Ring
Material:	100% Pure Silicon Carbide Powder	Advantage:	High Temperature Resistance
Size:	Customer Required	Packing:	Paper Case
Application:	Mechanical Seal	Shape:	Circle
MOQ:	5 PIECES	Color:	Black
Application Machine:	High Performance Pump
Highlight:	Tungsten Carbide Alloy Sealing Ring , Pumps Sealing Ring , Custom Cemented Sealing Ring

Products Description

Product Paramenters

Grade	Composition(% in weight)							Physical Properties						Grain size(μm)
	Composition(% in weight)									Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity
		WC	Ni	Ti	TaC				A/B/C	Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.8	3800	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.5	2500	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.0	3200	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.0	3200	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.0	3200	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.5	3200	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.0	3200	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.5	3000	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.7	3500	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	16.0	-	-	14.20	87.0	3500	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.5	3500	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.5	3500	A02/B00/C00	1.6-2.4
KD118/YG8X	91.5	8.5	-	-	14.50	93.6	3800	A02/B00/C00	0.4-0.6
KD338/YG12X	88.0	12.0	-	-	14.10	92.8	2200	A02/B00/C00	0.4-0.6
KD25/P25	77.4	8.5	6.5	6.0	12.60	91.8	2200	A02/B00/C00	1.0-1.6
KD35/P35	69.2	10.5	5.2	13.8	12.70	91.1	2500	A02/B00/C00	1.0-1.6
KD10/M10	83.4	7.0	4.5	4.0	13.25	93.0	2000	A02/B00/C00	0.8-1.2
KD20/M20	79.0	8.0	7.4	3.8	12.33	92.1	2200	A02/B00/C00	0.8-1.2

NOTE: Customization available per customer drawing or actual sample

Grade	Composition(% in weight)					Physical Properties							Equivalen to domestic
	Composition(% in weight)							Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity A\B\C	Grain size(μm)
		WC	Ni	Ti				Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity A\B\C	Grain size(μm)
KDN6	93.8	6.0	0.2	14.6-15.0	89.5-90.5	1800	A02\B00\C00	0.8-2.0	YN6
KDN7	92.8	7.0	0.2	14.4-14.8	89.0-90.0	1900			0.8-1.6	YN7
KDN8	91.8	8.0	0.2	14.5-14.8	89.0-90.0	2200			0.8-2.0	YN8
KDN12	87.8	12.0	0.2	14.0-14.4	87.5-88.5	2600			0.8-2.0	YN12
KDN15	84.8	15.0	0.2	13.7-14.2	86.5-88.0	2800			0.6-1.5	YN15
