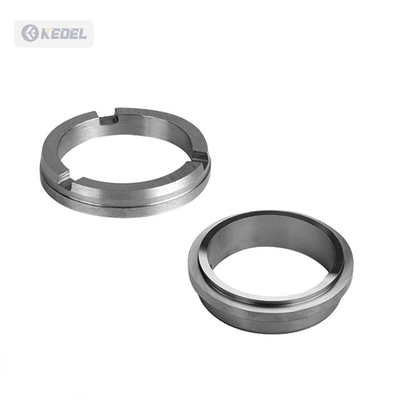

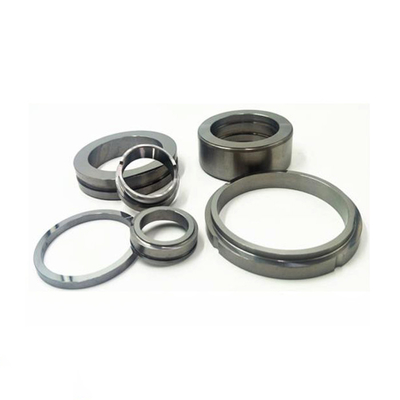

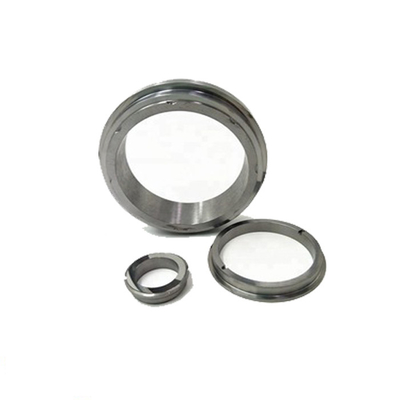

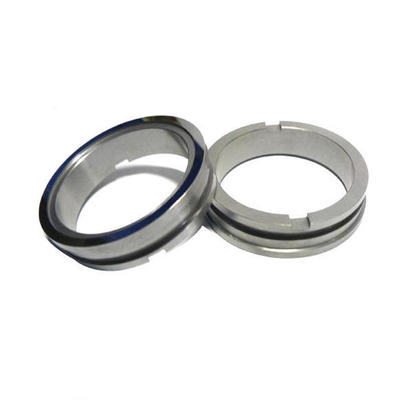

100% Pure Tungsten Carbide Powder Custom Cemented Sealing Ring for Highly Sealing Applications

Large Image : 100% Pure Tungsten Carbide Powder Custom Cemented Sealing Ring for Highly Sealing Applications

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	$14-70 / piece

Contact Now

100% Pure Tungsten Carbide Powder Custom Cemented Sealing Ring for Highly Sealing Applications

Description

Surface:	Glossy	Power Source:	Electric
Engine Type:	Electric	Product Name:	Tungsten Carbide Rings
Material:	100% Pure Tungsten Carbide Powder	Advantage:	High Wear Resistance
Size:	Customer Required	Packing:	Paper Case
Application:	Mechanical Seal	Shape:	Circle
Grade:	YG8/YG9C/YG11C	MOQ:	5 PIECES
Color:	Black
Highlight:	Cemented Tungsten Carbide Seal Ring , 100% Tungsten Carbide Seal Ring , Highly Sealing Tungsten Carbide Seal Ring

Products Description

Product Paramenters

Grade	Composition(% in weight)							Physical Properties						Grain size(μm)
	Composition(% in weight)									Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity
		WC	Ni	Ti	TaC				A/B/C	Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.8	3800	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.5	2500	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.0	3200	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.0	3200	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.0	3200	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.5	3200	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.0	3200	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.5	3000	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.7	3500	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	16.0	-	-	14.20	87.0	3500	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.5	3500	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.5	3500	A02/B00/C00	1.6-2.4
KD118/YG8X	91.5	8.5	-	-	14.50	93.6	3800	A02/B00/C00	0.4-0.6
KD338/YG12X	88.0	12.0	-	-	14.10	92.8	2200	A02/B00/C00	0.4-0.6
KD25/P25	77.4	8.5	6.5	6.0	12.60	91.8	2200	A02/B00/C00	1.0-1.6
KD35/P35	69.2	10.5	5.2	13.8	12.70	91.1	2500	A02/B00/C00	1.0-1.6
KD10/M10	83.4	7.0	4.5	4.0	13.25	93.0	2000	A02/B00/C00	0.8-1.2
KD20/M20	79.0	8.0	7.4	3.8	12.33	92.1	2200	A02/B00/C00	0.8-1.2

NOTE: Customization available per customer drawing or actual sample

Grade	Composition(% in weight)					Physical Properties							Equivalen to domestic
	Composition(% in weight)							Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity A\B\C	Grain size(μm)
		WC	Ni	Ti				Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity A\B\C	Grain size(μm)
KDN6	93.8	6.0	0.2	14.6-15.0	89.5-90.5	1800	A02\B00\C00	0.8-2.0	YN6
KDN7	92.8	7.0	0.2	14.4-14.8	89.0-90.0	1900			0.8-1.6	YN7
KDN8	91.8	8.0	0.2	14.5-14.8	89.0-90.0	2200			0.8-2.0	YN8
KDN12	87.8	12.0	0.2	14.0-14.4	87.5-88.5	2600			0.8-2.0	YN12
KDN15	84.8	15.0	0.2	13.7-14.2	86.5-88.0	2800			0.6-1.5	YN15
