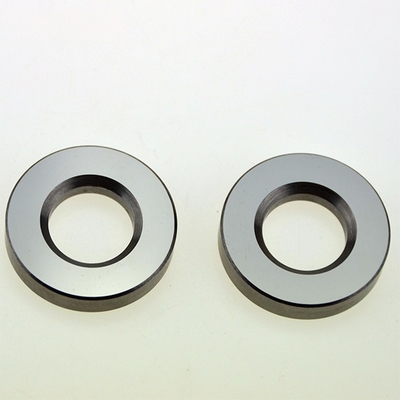

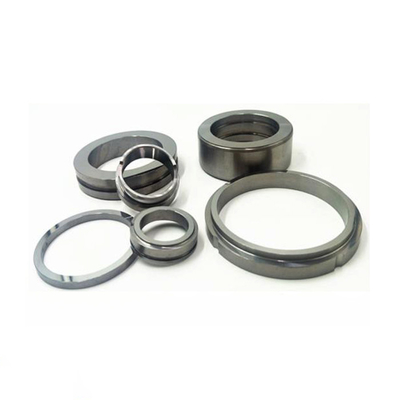

Oil Well Pipeline Valve Equipment Mechanical Seal and High Wear Resistance in Custom Cemented Tungsten Carbide Sealing Ring

Large Image : Oil Well Pipeline Valve Equipment Mechanical Seal and High Wear Resistance in Custom Cemented Tungsten Carbide Sealing Ring

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	8 pieces
Price:	$13-66 / piece

Contact Now

Oil Well Pipeline Valve Equipment Mechanical Seal and High Wear Resistance in Custom Cemented Tungsten Carbide Sealing Ring

Description

Surface:	Glossy	Power Source:	Electric
Engine Type:	Electric	Product Name:	Tungsten Carbide Rings
Material:	100% Tungsten Carbide Raw Material	Advantage:	High Wear Resistance
Size:	Customer Required	Packing:	Paper Case
Application:	Mechanical Seal	Shape:	Circle
Grade:	YG8/YG9C/YG11C	MOQ:	5 PIECES
Color:	Black
Highlight:	Oil Well Pipeline Valve Seal , Cemented Tungsten Carbide Sealing Ring

Products Description

Product Paramenters

Grade	Composition(% in weight)							Physical Properties						Grain size(μm)
	Composition(% in weight)									Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity
		WC	Ni	Ti	TaC				A/B/C	Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.8	3800	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.5	2500	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.0	3200	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.0	3200	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.0	3200	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.5	3200	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.0	3200	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.5	3000	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.7	3500	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	16.0	-	-	14.20	87.0	3500	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.5	3500	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.5	3500	A02/B00/C00	1.6-2.4
KD118/YG8X	91.5	8.5	-	-	14.50	93.6	3800	A02/B00/C00	0.4-0.6
KD338/YG12X	88.0	12.0	-	-	14.10	92.8	2200	A02/B00/C00	0.4-0.6
KD25/P25	77.4	8.5	6.5	6.0	12.60	91.8	2200	A02/B00/C00	1.0-1.6
KD35/P35	69.2	10.5	5.2	13.8	12.70	91.1	2500	A02/B00/C00	1.0-1.6
KD10/M10	83.4	7.0	4.5	4.0	13.25	93.0	2000	A02/B00/C00	0.8-1.2
KD20/M20	79.0	8.0	7.4	3.8	12.33	92.1	2200	A02/B00/C00	0.8-1.2

NOTE: Customization available per customer drawing or actual sample

Grade	Composition(% in weight)					Physical Properties							Equivalen to domestic
	Composition(% in weight)							Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity A\B\C	Grain size(μm)
		WC	Ni	Ti				Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity A\B\C	Grain size(μm)
KDN6	93.8	6.0	0.2	14.6-15.0	89.5-90.5	1800	A02\B00\C00	0.8-2.0	YN6
KDN7	92.8	7.0	0.2	14.4-14.8	89.0-90.0	1900			0.8-1.6	YN7
KDN8	91.8	8.0	0.2	14.5-14.8	89.0-90.0	2200			0.8-2.0	YN8
KDN12	87.8	12.0	0.2	14.0-14.4	87.5-88.5	2600			0.8-2.0	YN12
KDN15	84.8	15.0	0.2	13.7-14.2	86.5-88.0	2800			0.6-1.5	YN15

Details Images

Why Choose Us

Company Profile

Exhibition

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward
