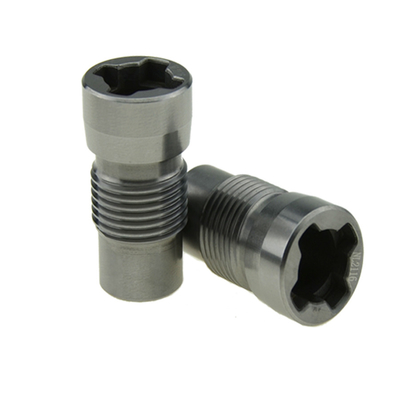

PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface

PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface
PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface

Large Image :  PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001
Model Number: PZ4/PZ1/PZ2
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: $1.00 - $30.00 / Piece
Packaging Details: foam + small box + carton for drill bit nozzle gauge
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 1000000 Piece/Pieces per Week provide OEM service for drill bit nozzle gauge
Contact Now

PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface

Description
Warranty: Unavailable Applicable Industries: Energy & Mining
After Warranty Service: No Service Local Service Location: None
Showroom Location: None Condition: New
Product Name: Factory Supply PDC Tungsten Carbide Oil Drill Bit Nozzle Material: 100% Virgin Tungsten Carbide
MOQ: 10pcs Model No.: PZ1,PZ2,PZ4
Type: Cleaning Equipments Grade Recommendation: YG6A, YG8, YG15, YG15C, YG20, YG20C
Size/ Type: 103x103x2.3mm (accept Non-standard Orders) Applications: Spray
Surface: Polished Port: Shanghai/Shenzhen
Highlight:

Kedel Cemented Carbide Tools YG15

,

YG15C Oil Drill Bit Nozzle

,

PDC Cemented Carbide Tools

PDC Cemented Carbide Tools YG15 YG15C Oil Drill Bit Nozzle

Factory Supply PDC Tungsten Carbide Oil Drill Bit Nozzle

Product Overview
Product Name carbide drill bit nozzle
Brand KEDEL
Model Customized
Type Crossing slot/Inner hexagonal/Outter hexagonal/Cinquefoil/Triangular slot/Inner crossing
Material 100% Virgin Tungsten Carbide
Grade YG6/YG8/YG11/YG13
Usage Drill bit
MOQ 10 Pieces
Product Images

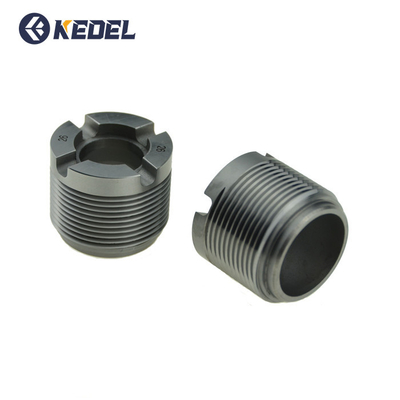

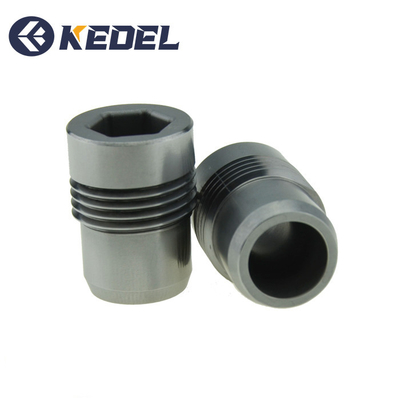

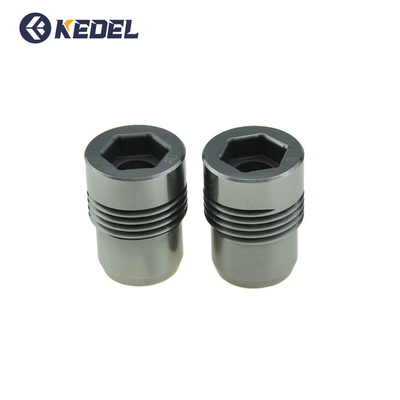

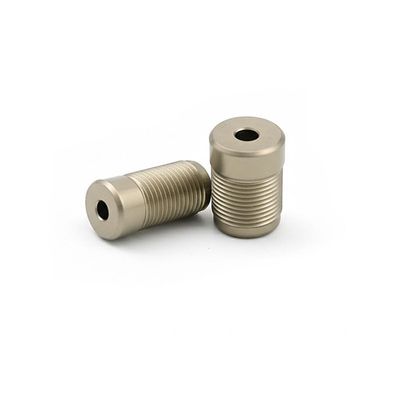

PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface 0
PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface 1
PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface 2
PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface 3
PDC Drill Bit Nozzle Tungsten Carbide Nozzle with 100% Virgin Tungsten Carbide for Energy & Mining with Polished Surface 4
Model Pore Diamter (B)
MJP-LJA-2712 09# 7.14
Outer Diameter (A) 27.00 10# 7.95
Total Length (C) 25.40 11# 8.74
Thread (M) 1 1/16"-12UNF-2A 12# 9.53
Small Outer Diameter (D) 21.92 13# 10.31
Length (L) 4.75 14# 11.13
Inner Bore (E) 18 15# 11.91
Chamfer Angle (F×G) 0.67×30° 16# 12.7
Transition Arc (J) 12.7 17# 13.5
Transition Arc (K) 5 18# 14.29
- - 19# 15.08
- - 20# 15.8
- - 22# 17.48
