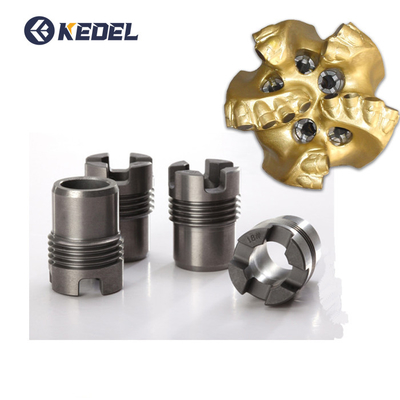

YG8 Tungsten Carbide Nozzle 25.21mm for PDC Drill Bits

Large Image : YG8 Tungsten Carbide Nozzle 25.21mm for PDC Drill Bits

Product Details:

Place of Origin:	CHINA
Brand Name:	KEDEL
Certification:	ISO9001:2015
Model Number:	PZ4/PZ1/PZ2

Payment & Shipping Terms:

Minimum Order Quantity:	10 - 49 Pieces
Price:	$22.00
Packaging Details:	foam + small box + carton Chengdu manufacturer tungsten carbide drill bit for PDC drilling Bits
Supply Ability:	1000000 Piece/Pieces per Week tungsten carbide drill bit for PDC drilling Bits

Contact Now

YG8 Tungsten Carbide Nozzle 25.21mm for PDC Drill Bits

Description

Alloy Specification:	YG13C	Grade:	YG8/YG15/YG6X/YG6/YG20
Application:	Petroleum, Chemical And Mech	Material:	Tungsten Carbide WC+Co
Product Name:	Pdc Drill Bit Nozzle	Type:	Cross Slot Alloy Nozzle
Surface:	Finished	Commodity Name:	Spherical Button Drill Bit
Usage:	Oil Drilling Tools	MOQ:	10PCS
Highlight:	PZ4 Cemented Carbide Nozzle , Tungsten Carbide Drill Nozzle YG13C , PZ1 Cemented Carbide Nozzle

PZ4 PZ1 Cemented Carbide Nozzle For Chemical Spherical Button Drill Bit

Chengdu manufacturer tungsten carbide drill bit for PDC drilling Bits. Cemented carbide nozzle, also known as the tungsten carbide nozzle, is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc. The hard alloy nozzles produced by our company have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Production Process

Milling
Proportioning as required
Wet grinding
Dry
Granulation
Press
Sinter
Inspection
Package

Specifications

There are two examples as below showed, we also accept your inquiry with drawings.

Model	MJP-CSA-2512	Model	MJP-CSA-2012
Outer Diameter	25.21	Outer Diameter	20.44
Total Length	34.80	Total Length	30.61
Thread	1-12UNF-2A	Thread	3/4-12UFN-A-2A
Small Outer Diameter	22.2	Small Outer Diameter	16.1
Length	15.6	Length	11.56
Endoporus	15.8	Endoporus	12.6
Transition Arc(J)	12.5	Transition Arc(J)	12.7
Transition Arc(K)	12.5	Transition Arc(K)	12.7

Model	Specification
Model	MJP-WJA-2214
Outer Diameter (O)	22.22
Total Length (C)	25.40
Small Outer Diameter (D) (7/8"-14UNF-2A)	17.1
Length (L)	5.7
Inner Hole Diameter (E)	12.8
Chamfer Angle (F*G)	0.8*45°
Transition Arc (R)	18.2
Bore Diameter - 08#	7.14
Bore Diameter - 10#	7.95
Bore Diameter - 11#	8.74
Bore Diameter - 12#	9.53
Bore Diameter - 13#	10.31
Bore Diameter - 14#	11.13
Bore Diameter - 15#	11.91
Bore Diameter - 16#	12.7
Thread	12UNF

Cinquefoil alloy nozzle

Model	Specification
Model	MJP-YHA-2712
Outer Diameter (O)	27.00
Total Length (L)	25.24
Small Outer Diameter (D)	1 1/16"-12UNF-2A
Length (L)	21.9
Inner Chamfer Angle (F*G)	1*45°
Transition Arc (R)	17.03
Transition Arc (R)	12.7
Transition Arc (R)	12.7
Bore Diameter (B) - 09#	7.14
Bore Diameter (B) - 10#	7.95
Bore Diameter (B) - 11#	8.74
Bore Diameter (B) - 12#	9.53
Bore Diameter (B) - 13#	10.31
Bore Diameter (B) - 14#	11.13
Bore Diameter (B) - 15#	11.91
Bore Diameter (B) - 16#	12.7
Bore Diameter (B) - 17#	13.5
Bore Diameter (B) - 18#	14.29
Bore Diameter (B) - 19#	15.08
Bore Diameter (B) - 20#	15.8
Thread	12UNF

Cross slot alloy nozzle

Model	Specification
Model	MJP-CSA-2512
Outer Diameter (A)	25.21
Total Length (C)	34.80
Small Outer Diameter (D)	1 1/2"-20UN-2A
Thread (M)	1-22UN-2A
Length (L)	15.6
Chamfer Angle (F*G)	3*45°
Transition Arc (R)	12.4-20°
Transition Arc (R)	12.5
Bore Diameter (B) - 00#	7.14
Bore Diameter (B) - 09#	7.95
Bore Diameter (B) - 10#	8.74
Bore Diameter (B) - 11#	9.53
Bore Diameter (B) - 12#	10.31
Bore Diameter (B) - 13#	11.13
Bore Diameter (B) - 14#	11.91
Bore Diameter (B) - 15#	12.7
Bore Diameter (B) - 16#	13.5
Bore Diameter (B) - 17#	14.29
Bore Diameter (B) - 18#	15.08
Bore Diameter (B) - 19#	15.8
Bore Diameter (B) - 20#	17.88

Model	Specification
Model	MJP-CSA-2012
Outer Diameter (A)	20.44
Total Length (C)	30.61
Small Outer Diameter (D)	3/4"-12UN-2A
Thread (M)	16L
Length (L)	11.56
Chamfer Angle (F*G)	1*45°
Transition Arc (R)	12.7
Transition Arc (R)	12.7
Bore Diameter (B) - 00#	7.14
Bore Diameter (B) - 09#	7.95
Bore Diameter (B) - 10#	8.74
Bore Diameter (B) - 11#	9.53
Bore Diameter (B) - 12#	10.31
Bore Diameter (B) - 13#	11.13
Bore Diameter (B) - 14#	11.91
Bore Diameter (B) - 15#	12.7
Bore Diameter (B) - 16#	12.7

Model	Specification
Model	MJP-CSA-2002
Outer Diameter (A)	20.30
Total Length (C)	30.80
Small Outer Diameter (D)	M20*2-6H
Thread (M)	16L
Length (L)	11.55
Chamfer Angle (F*G)	2*45°
Transition Arc (R)	12.7
Transition Arc (R)	12.7
Bore Diameter (B) - 00#	7.14
Bore Diameter (B) - 09#	7.95
Bore Diameter (B) - 10#	8.74
Bore Diameter (B) - 11#	9.53
Bore Diameter (B) - 12#	10.31
Bore Diameter (B) - 13#	11.13
Bore Diameter (B) - 14#	11.91
Bore Diameter (B) - 15#	12.7
Bore Diameter (B) - 16#	12.7

Company Information

Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products from China. Our company is mainly engaged in research, development and production of various cemented carbide tools. The company has advanced equipment and first-class technical production team to produce and sell cemented carbide products of various shapes, sizes and grades, including cemented carbide nozzles, cemented carbide bushings, cemented carbide plates, cemented carbide rods, cemented carbide rings, cemented carbide rotary files and burrs, cemented carbide end mills and cemented carbide circular blades and cutters, Cemented carbide CNC inserts and other non-standard cemented carbide parts. We are proud that the tungsten carbide parts and components developed and manufactured by Kedel Tools have been exported to North America, South America, Europe, South Africa and Southeast Asia, and our tungsten carbide products are widely used in the following fields: oil and gas industry, coal mining, mechanical seal, aerospace and steel smelting, Metal processing, military industry, new energy industry, packaging and printing industry, auto parts industry, chemical industry.

Let's find out:

We are the first manufacturer to produce threaded nozzles in China.
A number of technical backbone workers have worked for more than ten years in the company.
We have professional team and advanced equipment.
All these to ensure our professional and sincere service.

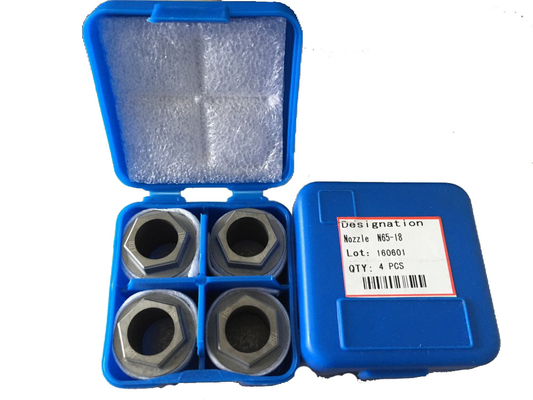

Packing & Delivery

Packing Pdc Drill Bit nozzle, use plastic foam, solid plastic box and carton.
