YG8C Cemented Carbide Straight Tube Axle Tungsten Carbide Sleeves With Keyway
Product Description
Cemented carbide axle sleeve designed for rotating support, aligning anti-thrust, and sealing applications in motors, centrifuges, protectors, and separators of submerged electric pumps. Ideal for harsh conditions including high-speed rotation, sand abrasion, and gas corrosion in oil field applications.
Key Features
- Constructed from 100% raw material with strict incoming inspection
- Overpressure sintering process increases alloy densification by 30%
- Customizable to meet specific customer requirements
- Available in various configurations including slide bearing, motor axle, aligning bearing, anti-thrust bearing, and seal axle sleeves
Production Process
- Milling
- Proportioning as required
- Wet grinding
- Dry
- Granulation
- Press
- Sinter
- Inspection
- Package
Specifications
Standard tungsten carbide bushing specifications shown below. Custom specifications available upon request with drawings.
| Model | Specification | D | D1 | d | L | L1 |
| MJP-ZGA-101 | 0016 | 16.0 | 13.9 | 10.32 | 50.8 | 3.18 |
| MJP-ZGA-101 | 0014 | 16.0 | 13.9 | 10.32 | 76.2 | 3.18 |
| MJP-ZGA-101 | 0019 | 17.0 | 15.1 | 10.00 | 49.4 | 4.00 |
| MJP-ZGA-101 | 0018 | 22.0 | 18.88 | 14.29 | 25.4 | 3.18 |
| MJP-ZGA-101 | 0020 | 22.0 | 18.88 | 14.29 | 38.1 | 3.18 |
| MJP-ZGA-101 | 0021 | 22.0 | 18.88 | 14.29 | 50.81 | 3.18 |
| MJP-ZGA-101 | 0022 | 22.0 | 18.88 | 14.29 | 57.15 | 3.18 |
| MJP-ZGA-101 | 0023 | 22.0 | 18.88 | 14.29 | 69.85 | 3.18 |
| MJP-ZGA-101 | 0024 | 21.84 | 20.45 | 17.48 | 30.5 | 2.87 |
| MJP-ZGA-101 | 0025 | 23.4 | 21.0 | 15.00 | 61.0 | 4.00 |
| MJP-ZGA-101 | 0026 | 23.4 | 21.0 | 14.8 | 53 | 4.00 |
| MJP-ZGA-101 | 0027 | 23.4 | 21.0 | 14.8 | 61.0 | 4.00 |
| MJP-ZGA-101 | 0028 | 24 | 21.0 | 16.0 | 61.0 | 11 |

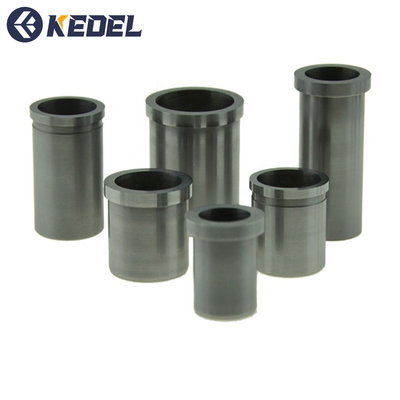

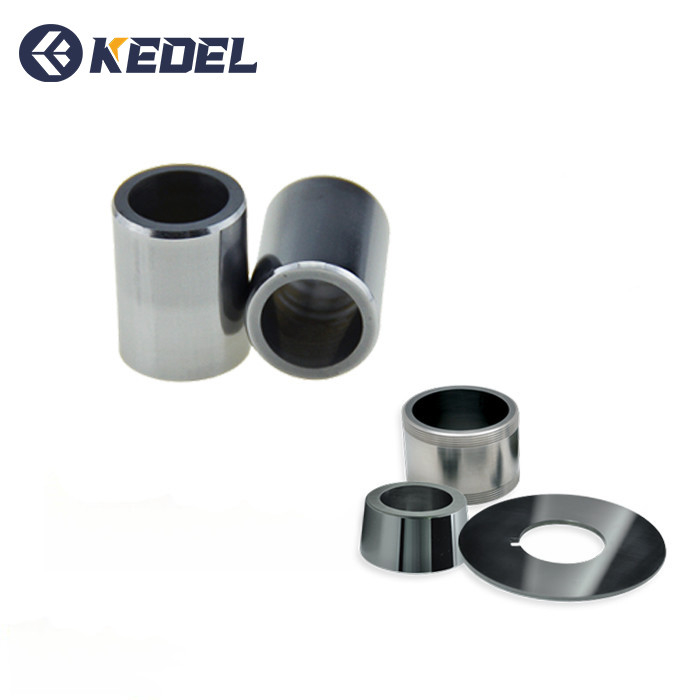

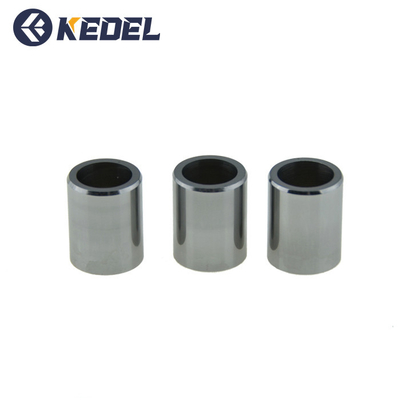

Product Showcase
About Our Company
Chengdu Kedel Tools is a professional manufacturer of tungsten carbide products based in China. We specialize in research, development, and production of various cemented carbide tools. Our facility features advanced equipment and a skilled technical team capable of producing carbide products in diverse shapes, sizes, and grades.
Our product range includes:
- Cemented carbide nozzles
- Cemented carbide bushings
- Cemented carbide plates
- Cemented carbide rods
- Cemented carbide rings
- Cemented carbide rotary files and burrs
- Cemented carbide end mills
- Cemented carbide circular blades and cutters
- Cemented carbide CNC inserts
- Custom non-standard cemented carbide parts
Our tungsten carbide products are exported worldwide and used in various industries including oil and gas, coal mining, mechanical seals, aerospace, steel smelting, metal processing, military, new energy, packaging and printing, auto parts, and chemical industries.
Production Equipment
Quality Control Equipment
Product Exhibition
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. For out-of-stock items, delivery takes 15-20 days depending on quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer samples free of charge but the customer must pay for shipping costs.
Q: What are your payment terms?
A: For payments ≤ $1000 USD: 100% in advance. For payments ≥ $1000 USD: 30% T/T in advance, balance before shipment.
