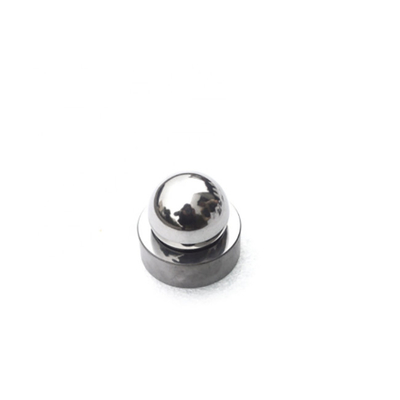

V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves

Large Image : V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Kedel
Certification:	ISO9001:2015,SGS,
Model Number:	KD-9002

Payment & Shipping Terms:

Minimum Order Quantity:	20 Piece/Pieces
Price:	$515.0- $35.0 / Piece
Packaging Details:	box +carton
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	2000 pcs per months

Contact Now

V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves

Description

Product Name:	V11-125 Blank Tungsten Carbide Valve Seats For API Oil Valves	Grade:	K30,K20,K10,YG6,YG8C
Material:	100% Virgin Tungsten Carbide	Application:	Chemical And Mechanic Industry
Size:	Customer's Request,0.5 - 80mm	Surface:	Blank/ Rough Grinded/ Polished
Shape:	Round	Sample:	Available
Oem:	Accepte	Usage:	Sealing And As The Bearing Balls
Highlight:	YG8C Tungsten Carbide Valve , K10 tungsten carbide sphere , YG6 Tungsten Carbide Valve

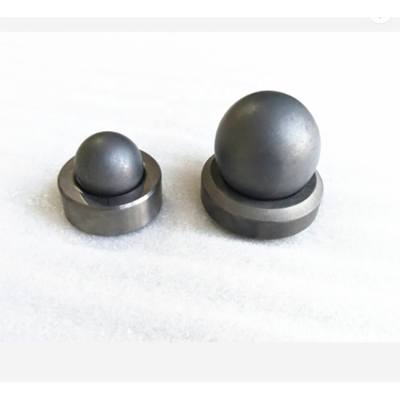

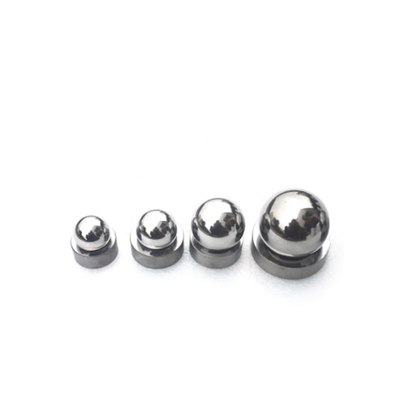

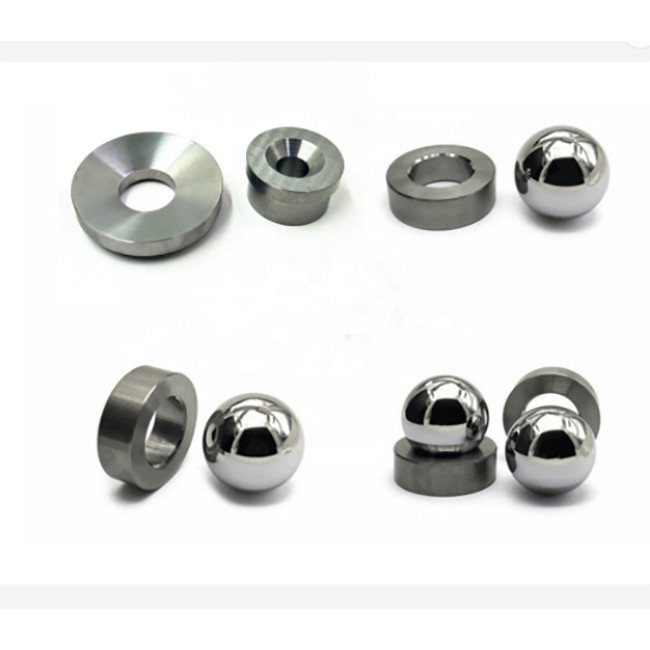

K10 YG6 YG8C Tungsten Carbide Valve Ball And Valve Seat

G100 G1000 5/16" 5/32" 1/2" 1/8" 1-3/4" tungsten carbide polish ball

Tungsten Carbide Sucker Rod Pump Valve Components

The valve ball and valve seat are critical components of sucker rod pumps
Manufactured and inspected according to API Specification 11AX standards
Material offers exceptional wear and corrosion resistance
Excellent anti-compression and thermal shock properties
High precision with maximum roundness deviation of 0.003mm
Superior sealing capability (5 seconds without leakage under 64 Mpa vacuum)
Surface roughness maintained at Ra0.1 μm maximum

Technical Specifications

API Type/Symbol	V11-106	V11-125	V11-150	V11-175	V11-200	V11-225	V11-250	V11-375
Ball-D(mm)	5/8" 15.88	3/4" 19.05	15/16" 23.83	1-1/8" 28.58	1-1/4" 31.75	1-3/8" 34.93	1-2/3" 42.88	2-1/4" 57.15
Seat-H(mm)	12.7	12.7	12.7	12.7	12.7	12.7	12.7	19.05
Seat-OD(mm)	20.14	23.32	29.67	35.26	37.57	43.69	51.05	78.03
Seat-ID(mm)	11.68	13.97	17.02	20.96	24.38	26.92	33.27	45.47
R	1.6	1.6	2.0	2.0	2.4	2.4	2.4	3.5

We also produce blank surface tungsten carbide ball and seat components.

Material & Applications

Materials: Cobalt-base alloy, nickel-base alloy, stellite alloy, titanium carbide, and other corrosion-resistant materials
Applications: Subsurface pumps, oilfield tubing pumps, insert pumps, sealing systems
Industry Use: Petroleum industry and other applications requiring corrosion-resistant machine parts
Properties: Excellent resistance against corrosion and oxidation for oilfield insert pumps

Tungsten carbide valve balls and seats are essential components in petroleum drilling and exploitation equipment. These precision components serve as stationary and moving unidirectional valves in various tube-type oil suction pumps, offering high hardness, superior wear and corrosion resistance, along with excellent anti-compression and thermal shock characteristics for optimal pump performance.
