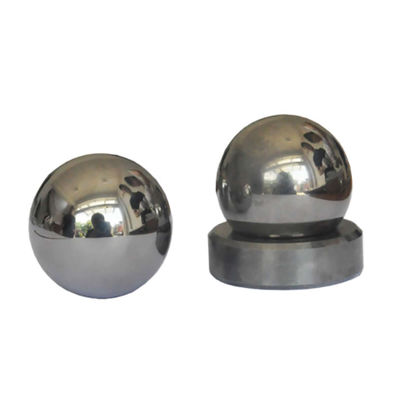

Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry

Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry
Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry

Large Image :  Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $0.80-3
Contact Now

Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry

Description
Material: 100% Tungsten Carbide Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Shape: Cylindrical Surface: Glossy
Color: Black Alloy Power Source: Electric
Engine Type: Electric Density: 12.00-14.90 G/cm³
Hardness: 86.5-93.6 HRA TRS: 2000-3800 Mpa
Porosity: A02/B00/C00 Grain Size: 0.4-2.4 μm
Ball Diameter: 15.88-57.15 Mm Seat Height: 12.7 Mm
Seat OD: 20.14-78.03 Mm
Highlight:

100% Tungsten Carbide Material Cemented Tungsten Carbide Ball Valve

,

YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification Tungsten Carbide Valve

,

Customized Size Tungsten Carbide Valve Seat and Ball

Customized Cemented Tungsten Carbide Alloy Ball Valve With High Sealing Performance for the Chemical and Pharmaceutical Industry
Product Overview

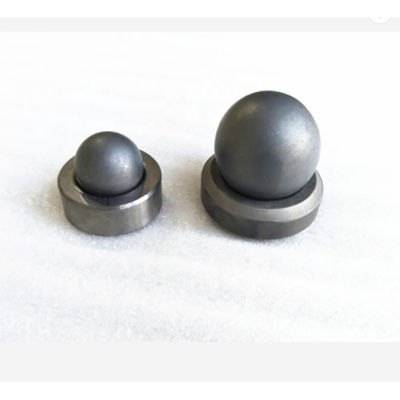

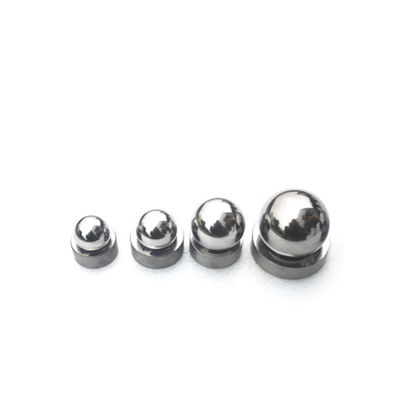

Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry 0 Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry 1
Technical Specifications
Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry 2
GradeComposition(% in weight)WCNiTiTaCDensity g/cm³(±0.1)Hardness HRA(±0.5)TRS Mpa(min)Porosity A/B/CGrain size(μm)
KD115/YG6X
93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X
89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG6
94.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG8
92.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG9
91.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C
91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG10
90.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG11
89.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C
89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG13
87.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C
87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG15
85.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C
85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X
91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X
88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P25
77.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P35
69.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M10
83.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M20
79.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
API Specifications
API Type/SymbolV11-106V11-125V11-150V11-175V11-200V11-225V11-250V11-375
Ball-D(mm)5/8"15.883/4"19.0515/16"23.831-1/8"28.581-1/8"28.581-3/8"34.9312/3"42.882-1/4"57.15
Seat-H(mm)12.712.712.712.712.712.712.712.7
Seat-OD(mm)20.1423.3229.6735.2637.5743.6951.0578.03
Seat-ID(mm)11.6813.9717.0220.9624.3826.9233.2745.47
R1.61.6222.42.42.43.5
Product Gallery

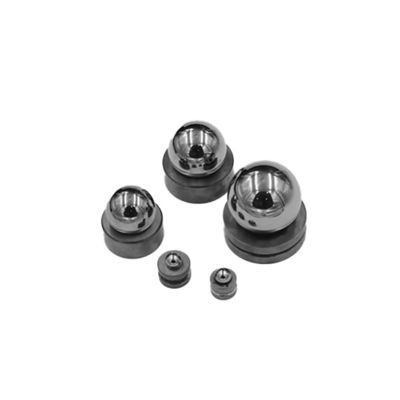

Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry 3

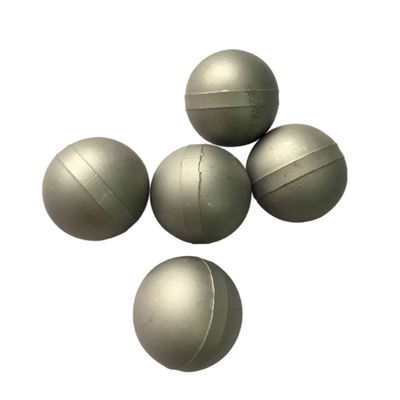

Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry 4

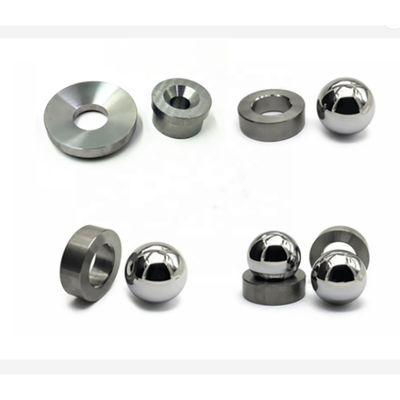

Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry 5


About Our Company
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.
Trade Show Exhibitions
Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry 6
Customized Tungsten Carbide Ball Valve with High Density (12.00-14.90 g/cm³), High Hardness (86.5-93.6 HRA), and High TRS (2000-3800 Mpa) for the Chemical and Pharmaceutical Industry 7



FAQ

Q: How to obtain an accurate quotation from Kedel Tools?

A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.

Q: How does our company ensure the quality of its products?

A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q: How long does a typical production cycle take?

A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q: What is our company’s payment method?

A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
