YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion

YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion

Large Image :  YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: KD-7004
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Price: $5.0 - $35.0 / Piece
Packaging Details: box +carton
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 2000 pcs per months
Contact Now

YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion

Description

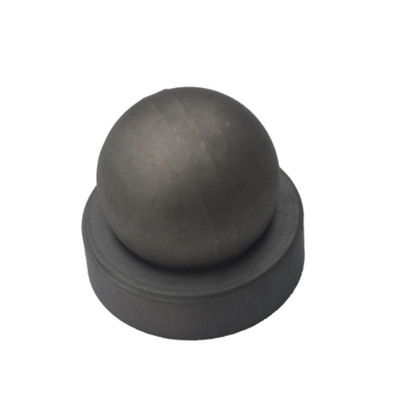

Product Name: Tungsten Carbide Ball Valve And Seat Grade: YG6,YG8C
Material: 100% Virgin Tungsten Carbide Characters: Anti-corrosion,Wear- Resistance
Surface: Blanks Or Polished Grinding Application: Chemical And Mechanic Industry
Highlight:

Tungsten Carbide Valve YG6

,

Blanks tungsten carbide ball

,

Tungsten Carbide Valve Anti Corrosion

Tungsten Carbide Valve YG6 Grade Anti Corrosion
Product Description

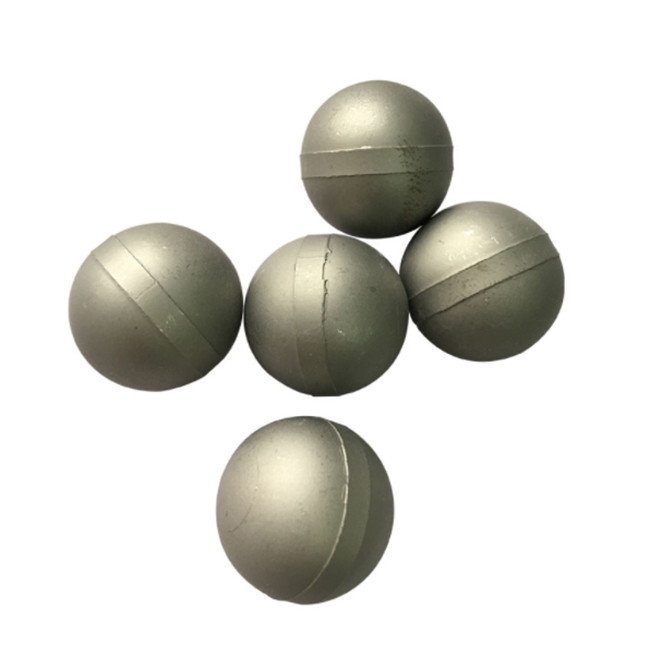

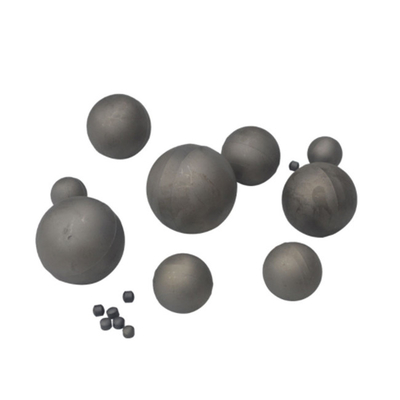

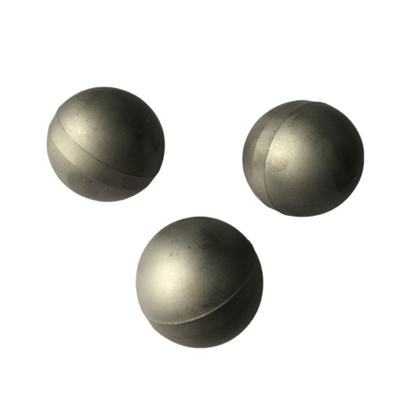

High precision tungsten carbide balls (TC alloy balls) composed of high-hardness refractory metal carbide micron powder with cobalt or nickel as binder, sintered in vacuum furnace or hydrogen reduction furnace.

YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 0 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 1
Product Specifications
Product Name Tungsten carbide ball
Series YG6, YG8, YN6, YN13, YT15
Feature High hardness, wear resistance, corrosion resistance, bending resistance. Can replace all steel ball products. Hardness ≥ 90.5, density = 14.9g/cm³.
Density 14.9g/cm³
Production Process

The production process includes: powder preparation → recipe formulation → wet grinding → mixing → crushing → drying → sieving → adding molding agent → drying → sieving → granulation → cold isostatic pressing → forming → sintering → forming (blank) → packaging → storage.

Applications

Tungsten carbide balls are used in applications requiring extreme hardness and resistance to wear and abrasion, capable of withstanding hard shocks and impacts. Common applications include:

  • Ball valves
  • Flow meters
  • Ball bearings
  • Linear bearings
  • Tungsten carbide grinding balls
  • Ball screws
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 2
Product Parameters
Grade WC% CO% Hardness (HRA) Density (G/cm³) T.R.S (Mpa) Application
YG6 94% 6% 91 14.6-15.0 1700 Hardware industry, valve, bearing, die casting, punching, grinding measurement
YG6X 94% 6% 92 14.6-15.0 1450 Hardware industry, valve, bearing, die casting, punching, grinding measurement
YG8 92% 8% 89 14.4-14.8 1800 Valves, bearing, die casting, punching, grinding measurement, hardness tester, petroleum, chemical industry, aeronautics and astronautics
Production Facility
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 3 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 4 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 5 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 6 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 7 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 8
Quality Control
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 9 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 10 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 11 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 12 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 13 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 14
Product Exhibition
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 15 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 16 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 17 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 18 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 19 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 20 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 21 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 22 YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion 23
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer.
Do you make customized products?
Yes, we often make customized products.
Do you provide free samples?
We can provide free samples, but do not pay freight cost.
How long is your delivery time?
Generally 1-5 days if we have stock, 30 days if the product is customized.

Tag:

Tungsten Carbide Valve Seats,

Rod Deep Pump ball and seat valve,

API Oilfield Tungsten Carbide Valve
