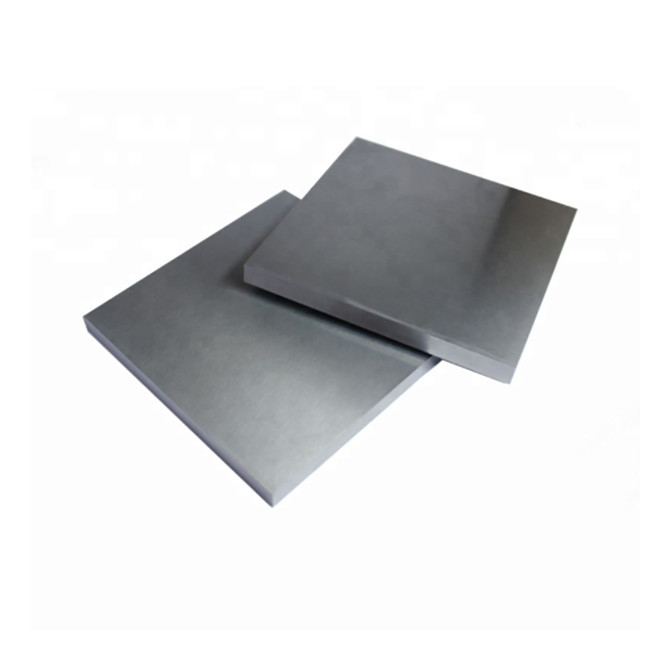

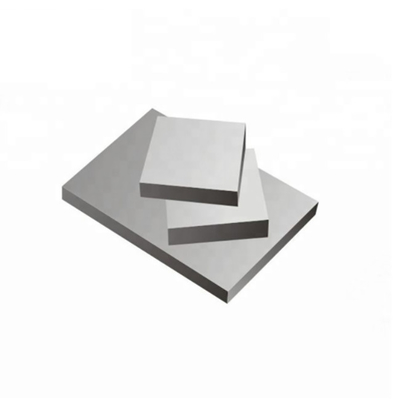

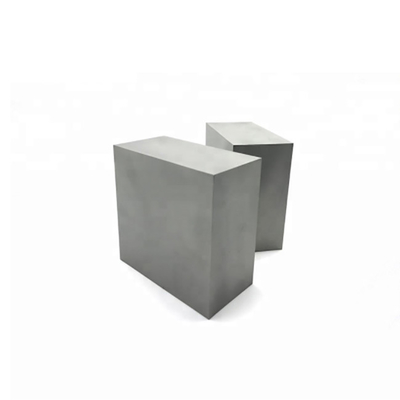

K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90

K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90
K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90 K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90 K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90 K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90

Large Image :  K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: KD-7002
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Price: $0.60 - $18.00 / Piece
Packaging Details: box +carton
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 pcs per months

K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90

Description
Grade: K10/K20/K30,YG6/YG8/YG10X/YG20C Type: Power Tool Parts
Application: Planer Cutting Tool / Pliner Plates / Metal Working / Stone Working Product Name: Sheet,cemented Tungsten Carbide Plate
Shape: Flat,Cube,Sheet,Rectangular Solid Hardness: HRA90-HRA92.1
Keywords: China Tungsten Carbide Wear Plate Manufacturer Density: 14.3--14.90g/m3
High Light:

K20 Tungsten Carbide Plates

,

K10 tungsten carbide strip

,

Tungsten Carbide Plates HRA90

Tungsten Carbide Plate & Strip Features:

  1. High stability, long lifespan circle.
  2. Customized as your requirements.
  3. Approved factory for oil and natural gas industry TOP5 customers.
  4. With ASP9100 certificate ,  ISO9001:2015
  5. With a Special Thread Processing Workshop

Tungsten Carbide plates Application: Main used for machining copper sheet, stainless steel, SPCC, silicon steel sheet, also used for stampling die for electronic connector, LED lead frame, Electric motor rotor.
Some size of tungsten carbide plates in K10, K20, K30, K40:
125x65xT1.5-15 mm
105x105xT6.0-70 mm
150x150xT20-70 mm
205x205xT15-45 mm
255x255xT15-35 mm
300x300xT15-30 mm
Also we many other different sizes of plates, like 50x50xT, 100x100xT, 120x120xT........, in addition, we can do customized size, simply you can find the plates from us in size width 1-300 mm x Depth 1-300 mm x Thickness 1-300 mm. For further information, please kindly contact us.

Recommend grade list of Carbide Plate & Strip:

The grades which used more frequently are YG8, YG15, YG20, YG10.2, YG2T, YG10X etc.Other grades can be offered according to customers' requirements. Afterwards the board can be broken out from the panel.

Grade ISO Grade Cobalt Density HRA TRS Grain size Application
YG6 K10 6% 14.9g/cm3 90.5 2000 Medium for machining general wood and some other soft material
YG8 K30 8% 14.76g/cm3 90.0 2200 Medium for soft wood and hardwood
UF07H K05 7% 14.7g/cm3 92.9 3000 Submicron for cutting MDF, HDF and plywood board
UF16H K20 8% 14.76g/cm3 91.2 2500 Fine for machining fiber board and hardwood
UF18H K20 10% 14.5g/cm3 91.8 3200 Submicron for machining hardwood



Wear parts hard alloy widia cemented tungsten carbide board block bar plates

K10 K20 Tungsten Carbide Plates Carbide Plate Bar HRA90 1
