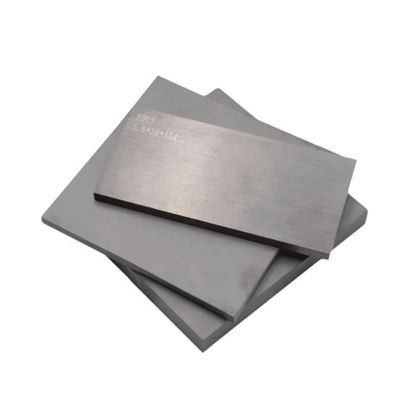

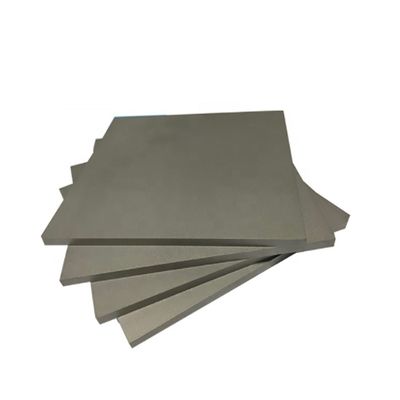

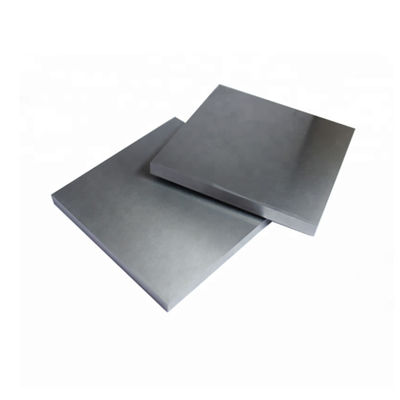

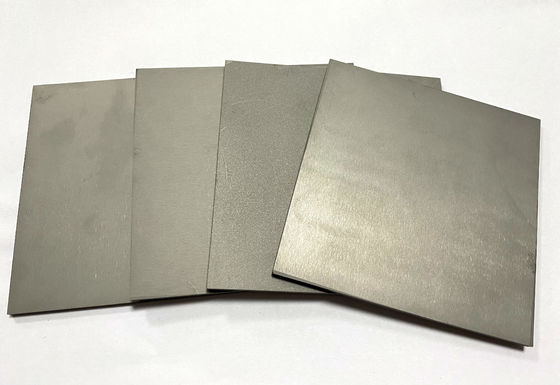

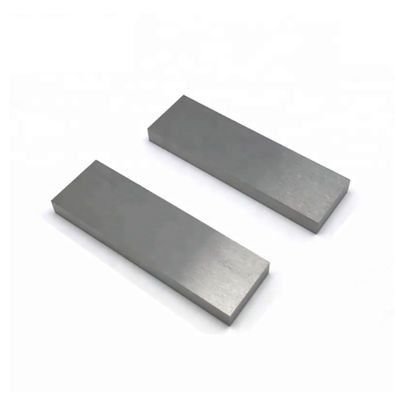

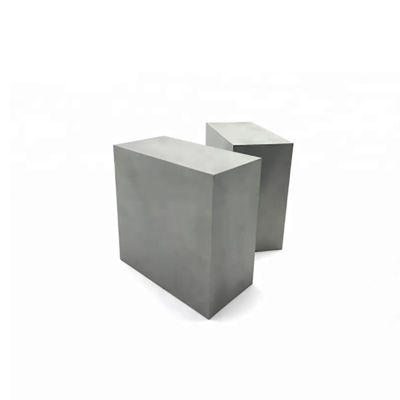

High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools

High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools

Large Image :  High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG9
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $5-25
Contact Now

High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools

Description
Material Composition: Tungsten Carbide And Cobalt Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish: Glossy Shape: Plates
Density Range: 12.10-14.90 G/cm³ Hardness Range: 86.5-93.6 HRA
TRS Range: 2000-3800 Mpa Porosity Grade: A02/B00/C00
Grain Size: 0.4-2.4 μm WC Content: 69.2-94.0%
Ni Content: 6.0-15.0% Ti Content: 0-7.4%
TaC Content: 0-13.8% Customizable Size: Yes
Minimum Order: 5 Pieces
Highlight:

Customized Size Tungsten Carbide Plate

,

High Wear Resistance Tungsten Carbide Sheet

,

Glossy Surface Cemented Carbide Plate

Customized Tungsten Carbide Alloy Sheet
Wear-Resistant Material for Cutting Tools
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 0
Product Description
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 1
Product Parameters
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 2
GradeComposition (% in weight)Physical PropertiesGrain size (μm)

WCNiTiTaCDensity g/cm³ (±0.1)Hardness HRA (±0.5)TRS Mpa (min)Porosity A/B/C
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
Product Details
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 3
Why Choose Us
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 4
Company Profile
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 5
Exhibition
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 6
High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 7

High Density Low Porosity Fine Grain Size Tungsten Carbide Plate Cemented Carbide Plate for Cutting Tools 8
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.
FAQ
Q How to obtain an accurate quotation from Kedel Tools?

A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.

Q How does our company ensure the quality of its products?

A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

Q How long does a typical production cycle take?

A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

Q What is our company's payment method?

A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
