Product Details:
|
Product Name: | Brazed Inserts Tips | Material: | 100% Virgin Tungsten Carbide |
---|---|---|---|
Surface: | Sand-blasted Finished,Rough/well Grinded | Application: | Cutting,drilling Tools And So On |
Advantage: | Durable | Size: | Available,OEM Accepted |
Other Name: | Brazed Blade,ISO Brazed Tips | Sample: | Available |
Highlight: | 15x10x5 Tungsten Carbide Brazed Tips,Carbide Cutting Tips 20x12x3,Tungsten Carbide Brazed Tips SS10 |

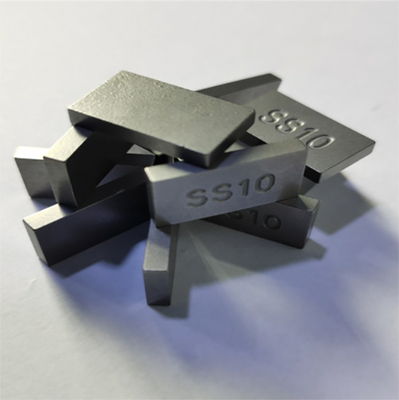

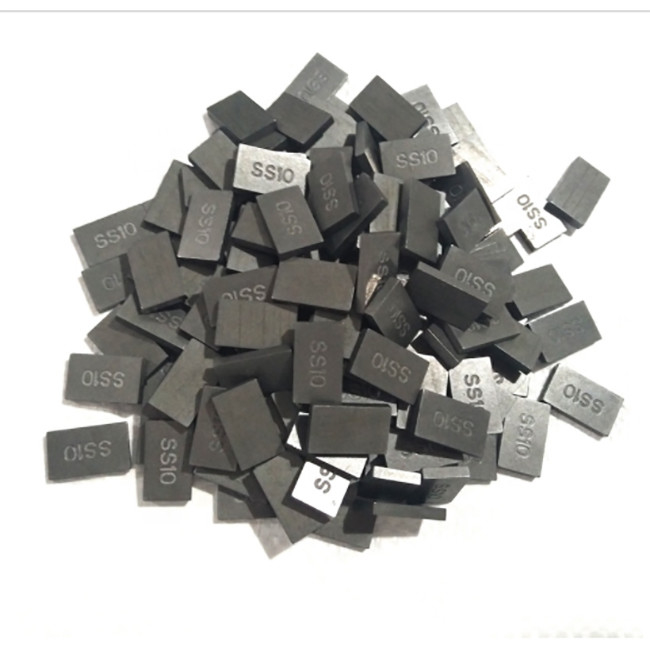

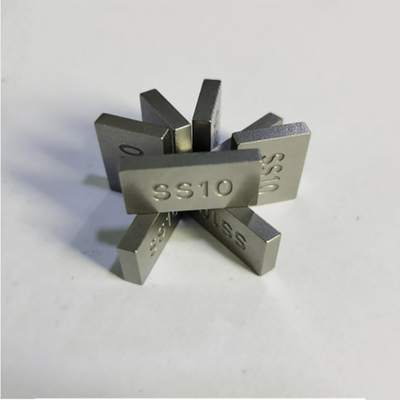

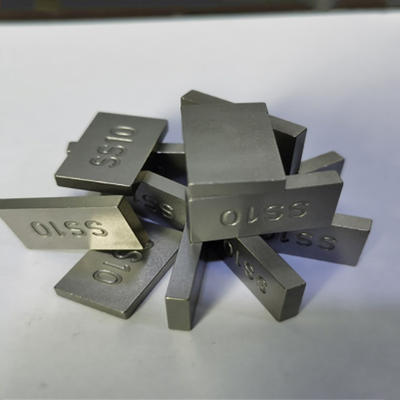

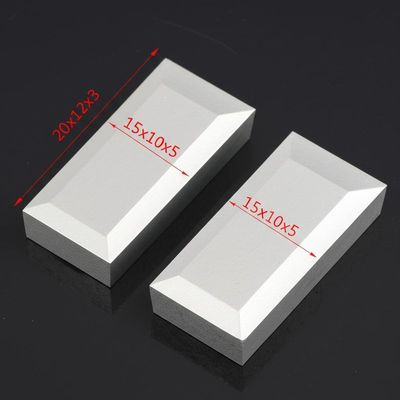

Size Of 20*12*3 Or 15*10*5 Carbide Cutting Tips SS10 For Quarry Stone
SS10 carbide tips to be welded onto the seats on the blades for stone cutting machines, it can be used for the processing of various kinds of stones, such as limestone, sandstone, tufa stone, granite etc.
Basic grades of tungsten carbide saw tips
ISO Grade | Co% | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Grain Size(μm) | Suitable for |
HRA (ISO3738) |
||||||
K01 | 3 | 15 | 94.2 | 2750 | 0.6 | Shaving board, density board, brass & aluminum alloy |
K05
|
6 | 14.9 | 93.3 | 3200 | 0.6 | Solid hard wood, plywood boar, MDF |
K10 | 6 | 14.8 | 92 | 3200 | 0.8 | Hard wood(excelent performance grade) |
K20 | 7 | 14.9 | 91 | 2600 | 1.2 | Ordinary wood and plasticmaterial |
K30 | 8 | 14.8 | 90 | 2700 | 1.2 | For ordinary aluminum |
M30 | 12 | 13.0 | 91 | 2400 | 0.8 | For angle steel, stainless steel and normal steel, like C45 |
M40 | 12 | 13 | 90 | 2400 | 1.4 |
Metallurgical saw blade only
|
