YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm

Certification
China Chengdu Kedel Technology Co.,Ltd certification
China Chengdu Kedel Technology Co.,Ltd certification
Customer Reviews
Always timely delivery, fast delivery and a factory with happy cooperation

—— Kamlesh Patel

You are the one of the most trustful companies I know.

—— Andrey Skutin

I'm Online Chat Now

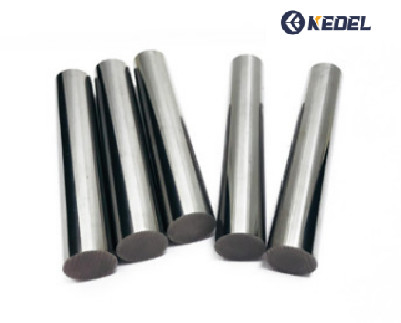

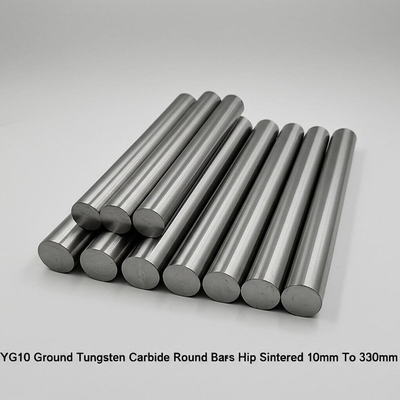

YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm

YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm
YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm
YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm

Large Image :  YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001:2015,SGS,
Model Number: KD-2001
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Price: $0.60 - $18.00 / Piece
Packaging Details: box +carton
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 2000 pcs per months

YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm

Description
Product Name: Round Bars Solid Carbide Rods Tungsten Carbide Rods Size: Dia3x330-Dia30x330
Grade: K05/K10/K20/K30 Advantage: HIP Sintering, Long Lifespan
Appplication: Making Drills,mold Punches, Milling Cutter,end Mills Surface: Ground/unground
Service: Customized Available Performance: Wear Resistant\rustResistant
High Light:

YG10 Tungsten Carbide Round Bars

,

tungsten carbide round bar Hip Sintered

,

carbide round bars HIP Sintering

YG6 YG8 YG10 Length 10-330 mm Solid Carbide Round Blank Bar Solid Tungsten Carbide Rod



Tungsten carbide raw material 10% cobalt tungsten alloy carbide rod stock D8x60mm

We manufactured and stocked a large range of tungsten carbide rod with or without hole for you.
Our Diameter from 0.3mm to 40mm, the inner hole can be 0.1mm min
length in 310mm, 330mm or 340mm, or any length.
Grade inYL10.2, K10, K20 K30, K35 or etc.


Products Advantages
1. We use 100% raw materials to manufacture tungsten carbide cooling rods
2. According to different applications, we have different grades to choose from: YL10.2/YG8/YG6/YG6X/K10/K20
3. Performance: Our products have high hardness, wear/corrosion resistance, good roughness, high performance
4. Size: diameter 1/2/3/4/5/6*length 330mm. We can provide various sizes according to your application
5. Surface: as your request, blank or unpolished
6. Advanced production equipment and complete quality control system
7. 100% inspection before shipment
8. We are a real factory in Chengdu. Our quality is guaranteed and the price is competitive.

Application Are

Due to its good material properties, tungsten carbide is widely used in various industries: paper making, packaging, printing, non-ferrous metal processing industry, machinery, chemical industry, petroleum, metallurgy, electronics and defense industry.

Diameter(mm)
Length(mm)
Tolerance of D
1-3mm
330
h5/h6
4
330
h5/h6
5
330
h5/h6
6
330
h5/h6
7
330
h5/h6
8
330
h5/h6
9
330
h5/h6
9.5
330
h5/h6
10
330
h5/h6
11
330
h5/h6
12
330
h5/h6
13
330
h5/h6
14
330
h5/h6
15
330
h5/h6
16
330
h5/h6
17
330
h5/h6
18
330
h5/h6
19
330
h5/h6
20
330
h5/h6
.......
330
h5/h6
37
330
h5/h6

We are able to help you customized various diameter and length carbide rod. gound or unground both available. We generally have inventory size from Dia1mm to Dia20mm with Length 300mm/330mm



Some grade information for reference
Grade
Density(g/cm3)
Hardness (HRA)
T.R.S (N/mm2)
Composition(%)
Grain Size (μm)
ISO
YL10.2
14.4-14.6
92.5-92.8
3800
10%Co+90%WC
0.6
K25-K35
YG8
14.65-14.85
89.5
2320
8%Co+92%WC
0.8-1.2
K30
YG6
14.85-15
90
2150
6%Co+94%WC
0.8-1.2
K20
YG12X
14.3-14.5
92
2500
12%Co+88%WC
0.6-0.8

YG10X
14.3-14.7
90
2200
10%Co+90%WC
0.6-0.8
K35
YG15
13.9-14.2
87
2100
15%Co+85%WC
0.8-1.2

Other grade and dimension are also available for choosing based your specific application. please contact us at any time
Production Process:
tungsten carbide rods process, to ensure high quality, we commit our customers that:
1. All materials are tested in terms of purity ,density, hardness and T.R.S before use.
2. Every piece of product is inspected before shipment

YG10 Ground Tungsten Carbide Round Bars Hip Sintered 10mm To 330mm 0

We Guarantee:
1. produced with advanced equipments and process.
2. high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
3. all products go through in-process and final inspection.
4. Quality Control System and strict inspection.
5. stable and continuous production ability.
6. free online technical service available.
7. OEM and ODM are accepted as well.
8. Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for
consistent performance capacity of your tools.
9. Undertake orders of non-standard sizes at customer's requests.
Other Carbide rod type:
For tungsten carbide rod,we can make various type
* solid carbide rod
* grinding carbide rod
* blank carbide rod
* carbide rod with chamfer
* carbide rod with single hole
* custom carbide rod
* carbide rod with tap
