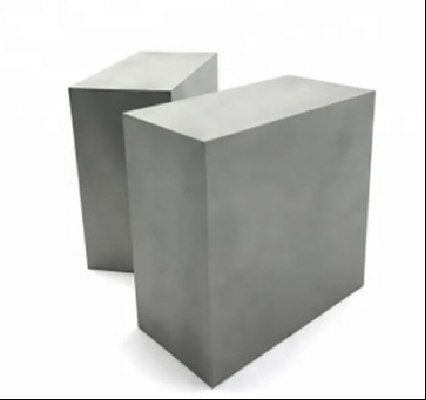

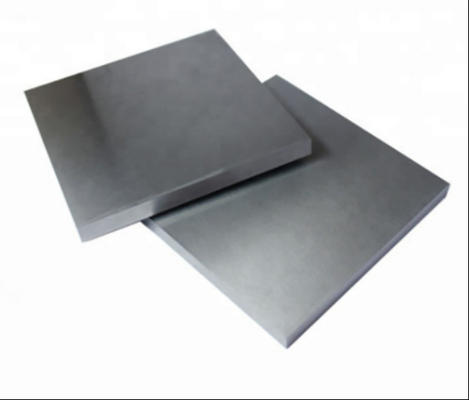

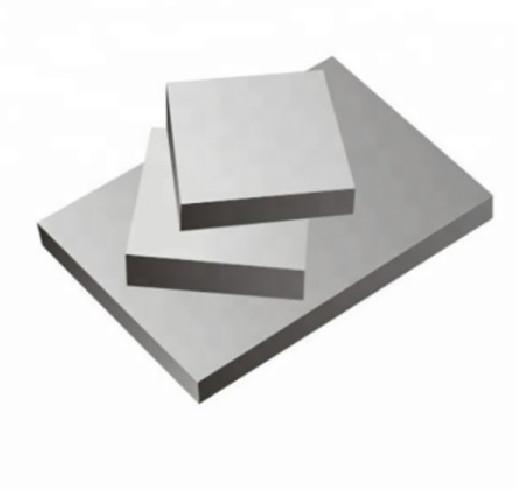

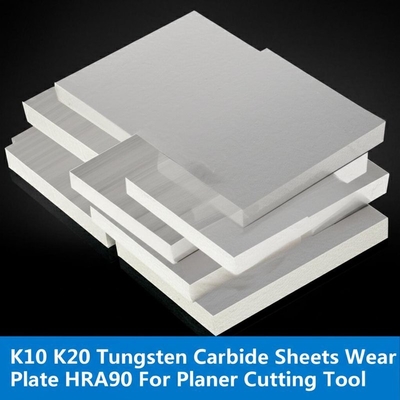

K10 K20 Tungsten Carbide Sheets Wear Plate HRA90 For Planer Cutting Tool
High-performance K10 K20 Tungsten Carbide Plates and Bars with HRA90 hardness rating, ideal for industrial cutting applications.
Tungsten Carbide Plate Features
- Exceptional stability and long service life
- Custom manufacturing available to specifications
- Certified supplier for top oil and natural gas industry clients
- ASP9100 and ISO9001:2015 certified production
- Specialized thread processing capabilities
Applications
Designed for processing copper plate, stainless steel, SPCC, silicon steel sheet, and specialized applications including:
- Stamping dies for electronic connectors
- LED lead frame production
- Motor rotor manufacturing
Standard Sizes Available
- 125 * 65 * T1.5-15 mm
- 105 * 105 * T6.0-70 mm
- 150 * 150 * T20-70 mm
- 205 * 205 * T15-45 mm
- 255 * 255 * T15-35 mm
- 300 * 300 * T15-30 mm
Custom sizes available from 1-300 mm in width, depth, and thickness. Contact us for specific requirements.
Recommended Grades
Most frequently used grades: YG8, YG15, YG20, YG10.2, YG2T, YG10X. Other grades available upon request.
| Grade |
ISO Grade |
Cobalt |
Density |
HRA |
TRS |
Grain Size |
Application |
| YG6 |
K10 |
6% |
14.9g/cm³ |
90.5 |
2000 |
Medium |
General wood and soft materials |
| YG8 |
K30 |
8% |
14.76g/cm³ |
90.0 |
2200 |
Medium |
Soft and hardwood |
| UF07H |
K05 |
7% |
14.7g/cm³ |
92.9 |
3000 |
Submicron |
MDF, HDF and plywood |
| UF16H |
K20 |
8% |
14.76g/cm³ |
91.2 |
2500 |
Fine |
Fiber board and hardwood |
| UF18H |
K20 |
10% |
14.5g/cm³ |
91.8 |
3200 |
Submicron |
Hardwood machining |
Production Equipment
Quality Control Equipment
Product Exhibition
Packaging & Payment
Packing Details: Carbide oil spray nozzles are packed with plastic foam, solid plastic box, and carton.
Payment Methods: L/C, D/A, D/P, T/T, Western Union, MoneyGram payments for offline orders.
Packing and Delivery
Packing Details: Packing PDC carbide cylinder nozzle, use plastic foam, solid plastic box and carton.
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, depending on quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
