Product Details:
|
Material: | 100% Virgin Tungsten Carbide | Application: | Planer Cutting Tool / Pliner Plates / Metal Working / Stone Working,Mining |
---|---|---|---|

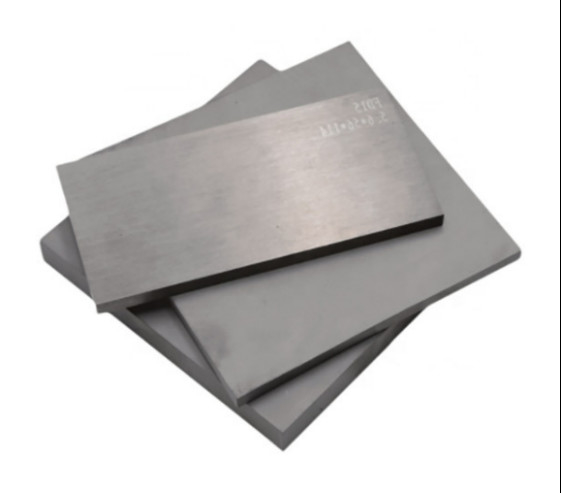

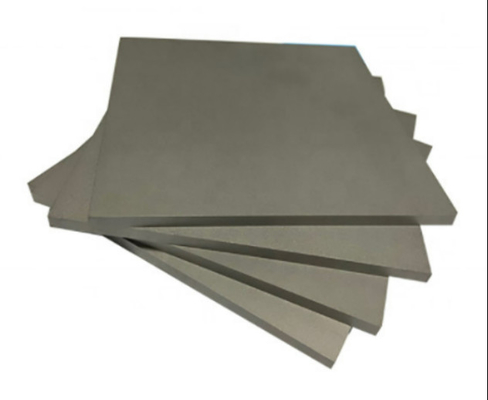

Name: | Tungsten Carbide Plate | Grade: | YG8 YG6 YG10X YN6 YN8 YN9, Etc, |
Model: | KD-1101 | Certification: | ISO9001:2015, SGS |
Highlight: | Tungsten Carbide Plates K10,Wear Resistance Tungsten Carbide Plates,K20 Cemented Carbide Plates |
Information
Main Features
1. Stable performance: Test pieces before mass production to ensure the stable performance of carbide flat parts.
2. Small subsidy: Small subsidy helps to control our production cost and reduce your import cost.
3. Various grades and sizes: With our CNC machining system, even for rectangular carbide blanks of 1 PC is feasible.
Dimension
These dimensions are just part of our moulds,if you can't find the dimension you are looking for,please contact us for confirmation.
Sr.No | Length(mm) | Width(mm) | Thickness(mm) | Sr.No | Length(mm) | Width(mm) | Thickness(mm) |
1 | 50 | 50 | 2-40 | 11 | 250 | 250 | 2-200 |
2 | 70 | 70 | 2-50 | 12 | 300 | 300 | 2-200 |
3 | 100 | 100 | 2-70 | 13 | 70 | 50 | 2-40 |
4 | 102 | 102 | 2-70 | 14 | 110 | 80 | 2-50 |
5 | 105 | 105 | 2-70 | 15 | 125 | 72 | 2-50 |
6 | 125 | 125 | 2-80 | 16 | 150 | 60 | 2-50 |
7 | 120 | 120 | 2-80 | 17 | 155 | 60 | 2-50 |
8 | 150 | 150 | 2-100 | 18 | 150 | 100 | 2-80 |
9 | 180 | 180 | 2-150 | 19 | 200 | 100 | 2-80 |
10 | 200 | 200 | 2-150 | 20 | 300 | 200 | 2-80 |
Quality Grades
Main grade grade K10(YG6X),K20(YG6),K30(YG8),YG15,YG20,YT15(P10),YW1(M10),for more information
please contact us through email.
