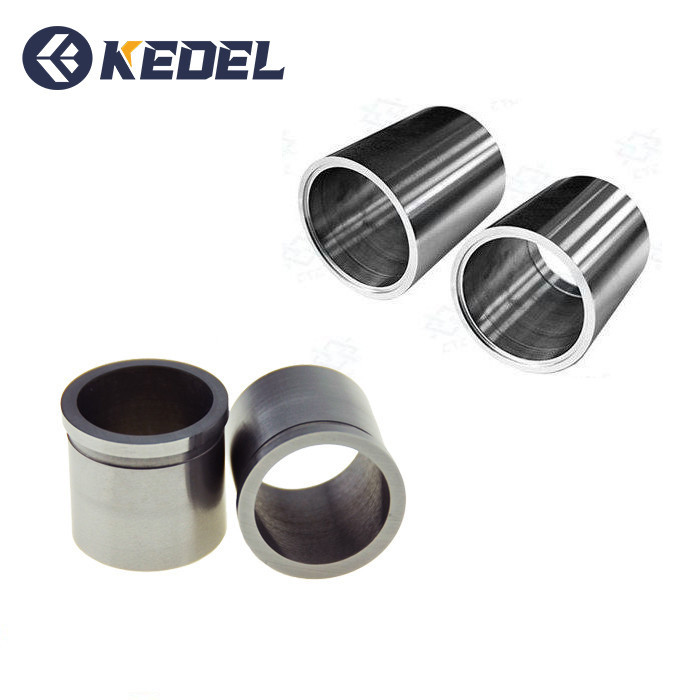

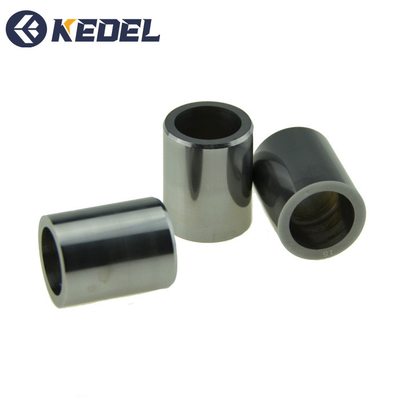

YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings

YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings
YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings
YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings

Large Image :  YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Certification: ISO9001
Model Number: KD-2001-04
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece/Pieces
Price: $1.00 - $30.00 / Piece
Packaging Details: foam + small box + carton for PDC carbide cylinder nozzle
Supply Ability: 1000000 Piece/Pieces per Week provide OEM service for PDC carbide cylinder nozzle
Contact Now

YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings

Description
Applicable Industries: Energy & Mining Condition: New
Product Name: PDC Bit Carbide Bushings Material: 100% Virgin Tungsten Carbide
MOQ: 10pcs Model No.: MJP-CSA-2512
Type: Cleaning Equipments Grade Recommendation: YG6, YG8, YG15, YG15C, YG20, YG20C
Size/ Type: 103x103x2.3mm (accept Non-standard Orders) Applications: Spray
Surface: Polished Port: Shanghai/Shenzhen
Highlight:

Tungsten Carbide Spray Bushings

,

YG9C PDC Bit

,

YG9C Tungsten Carbide Spray Bushings

YG9C PDC Bit Carbide Sleeves Tungsten Carbide Spray Bushings
Factory Direct Supply YG9C PDC Bit Carbide Sleeves Tungsten Carbide Spray Bushing. We are manufacturer, supplier and exporter of Tungsten Carbide Sleeves with high hardness for 25 years experience in Chengdu, Sichuan, China. Our tungsten carbide nozzles feature high strength, wear resistance, high precision and excellent temperature and corrosion resistance. Various sizes and types available, with custom specifications to meet your requirements.
Product Characteristics
  • Excellent material quality and performance
  • Superior wear and corrosion resistance
  • Maintains operating accuracy during long-term use
  • Extends service life of rotating shafts
  • Average service life up to 20,000 hours
Common Sizes
Model No. Specification OD (D:mm) ID (D1:mm) Pore (d:mm) Length (L:mm) Step length (L1:mm)
KD-20010116.4114.0512.7025.401.00
KD-20020216.4114.0512.7031.751.00
KD-20030322.0418.8615.7531.753.18
KD-20040422.0418.8615.7550.803.18
KD-20050516.0013.9010.3176.203.18
KD-20060622.0018.8814.3025.403.18
KD-20070724.0021.0016.0075.003.00
KD-20080822.9021.0015.0075.003.00
KD-20090919.5016.9012.7050.004.00
KD-20101036.8032.8026.0055.004.00
Grade Chart
GRADE ISO DENSITY g/cm³ TRS N/mm² HARDNESS (HRA) APPLICATION
YG6AK1014.8175092Excellent wear resistance and strong rigidity, suitable for machining cast iron, non-ferrous metals, wood, and bamboo
YG8K2014.7190089High bending strength, used for processing blades and wear resistance parts
YG15K4014.2250086.5Used for punching dies, stamping dies and wear resistance parts
YG15CK4014270085Used for punching dies, stamping dies and wear resistance parts
YG20K4013.5275084High bending strength, used for step dies and other stamping dies
YG20CK4013.4280082Dies for wear resistant or impact resistant applications
Product Details
YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 0
Our Manufacturing Capabilities
Production Equipment
YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 1 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 2 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 3 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 4 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 5 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 6
Quality Control Equipment
YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 7 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 8 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 9 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 10 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 11 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 12
Product Exhibition
YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 13 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 14 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 15 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 16 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 17 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 18 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 19 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 20 YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 21
Packing and Delivery
Packing Details: PDC carbide cylinder nozzles are packed with plastic foam, solid plastic boxes, and cartons for secure transportation.
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the factory.
Q: How long is your delivery time?
A: Generally 5-10 days for in-stock items, or 15-20 days for out-of-stock items depending on quantity.
Q: Do you provide samples? Are they free or extra?
A: Yes, we offer free samples but the customer pays for shipping costs.
Q: What are your payment terms?
A: For orders ≤$1000, 100% payment in advance. For orders >$1000, 30% T/T deposit with balance before shipment.
YG9C PDC Bit Carbide Sleeves 103x103x2.3mm Tungsten Carbide Spray Bushings 22
