Product Details:
|
Product Name: | Round Bars Solid Carbide Rods Tungsten Carbide Rods | Size: | Dia3x330-Dia30x330 |
---|---|---|---|
Grade: | K05/K10/K20/K30 | Advantage: | HIP Sintering, Long Lifespan |
Appplication: | Making Drills,mold Punches, Milling Cutter,end Mills | Surface: | Ground/unground |
Service: | Customized Available | Performance: | Wear Resistance |
High Light: | Raw Pure Cemented Carbide Bar,High Precision Carbide Polished Rods,Tungsten Carbide Polished Rods |

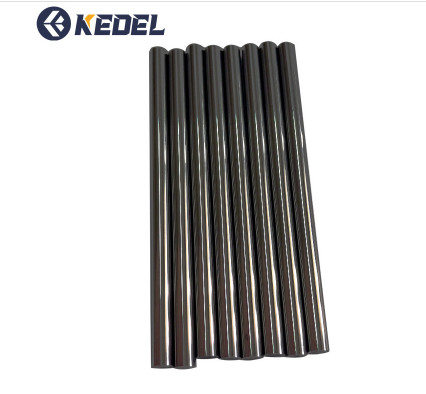

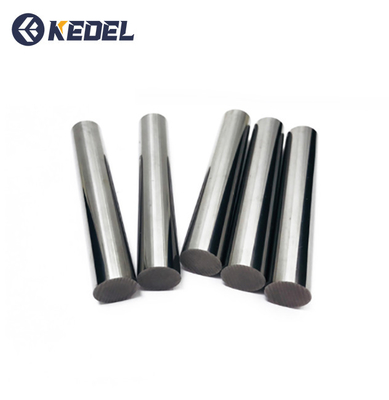

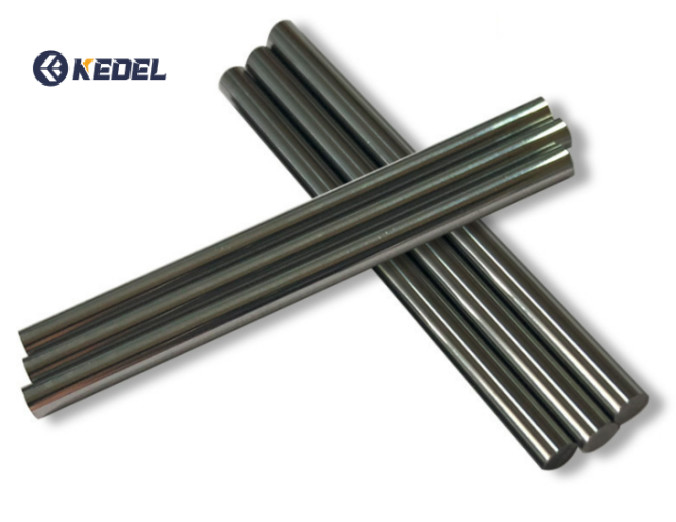

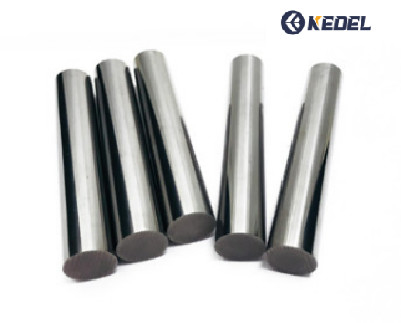

The tungsten carbide solid round rods we produced are with good high hardness and precision, with super high wear resistant and impact-resistant. Kedel Tool carbide rods are also with excellent performance in some sticky metal cutting which needs good shock and bending resistance.
Tungsten Carbide is often referred to as a Hard Metal due to it’s very high hardness in relation to other metals. Typically a Tungsten Carbide can have a hardness value of 1600 HV, whereas mild steel would be in the region of 160 HV a factor of 10 lower. Tungsten Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy, titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products have been widely recognized by worldwide makers of cutting tools.
Our advantage of tungsten carbide rod
1,ISO 9001:2015 Certification
2, Use 100% tungsten carbide raw material
3,Advanced technology , automatic pressing , HIP sintering
4, with over ten year experience
5, And precision grinding
6,the tolerance of polish and ground can be +0.005/-0.005mm
7,Full ability to accept OEM & ODM orders
8.Stringent quality control and quality consistency.
9,Strict inspection for quality of raw material and finished products.
Diameter(mm)
|
Length(mm)
|
Tolerance of D
|
1-3mm
|
330
|
h5/h6
|
4
|
330
|
h5/h6
|
5
|
330
|
h5/h6
|
6
|
330
|
h5/h6
|
7
|
330
|
h5/h6
|
8
|
330
|
h5/h6
|
9
|
330
|
h5/h6
|
9.5
|
330
|
h5/h6
|
10
|
330
|
h5/h6
|
11
|
330
|
h5/h6
|
12
|
330
|
h5/h6
|
13
|
330
|
h5/h6
|
14
|
330
|
h5/h6
|
15
|
330
|
h5/h6
|
16
|
330
|
h5/h6
|
17
|
330
|
h5/h6
|
18
|
330
|
h5/h6
|
19
|
330
|
h5/h6
|
20
|
330
|
h5/h6
|
.......
|
330
|
h5/h6
|
37
|
330
|
h5/h6
|
We are able to help you customized various diameter and length carbide rod. gound or unground both available. We generally have inventory size from Dia1mm to Dia20mm with Length 300mm/330mm
Grade
|
Density(g/cm3)
|
Hardness (HRA)
|
T.R.S (N/mm2)
|
Composition(%)
|
Grain Size (μm)
|
ISO
|
YL10.2
|
14.4-14.6
|
92.5-92.8
|
3800
|
10%Co+90%WC
|
0.6
|
K25-K35
|
YG8
|
14.65-14.85
|
89.5
|
2320
|
8%Co+92%WC
|
0.8-1.2
|
K30
|
YG6
|
14.85-15
|
90
|
2150
|
6%Co+94%WC
|
0.8-1.2
|
K20
|
YG12X
|
14.3-14.5
|
92
|
2500
|
12%Co+88%WC
|
0.6-0.8
|
|
YG10X
|
14.3-14.7
|
90
|
2200
|
10%Co+90%WC
|
0.6-0.8
|
K35
|
YG15
|
13.9-14.2
|
87
|
2100
|
15%Co+85%WC
|
0.8-1.2
|
|
