Cemented Carbide Thread Nozzle for Oil Drilling 26.30mm Length YG8 Grade

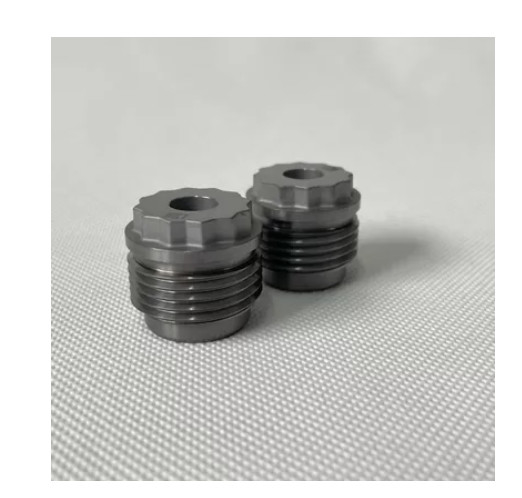

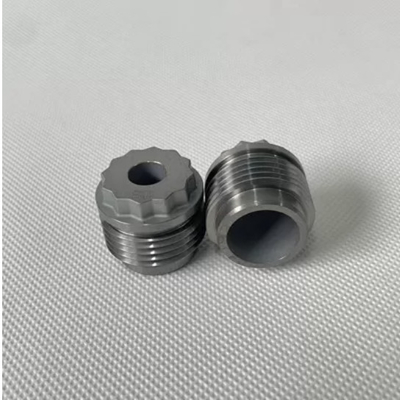

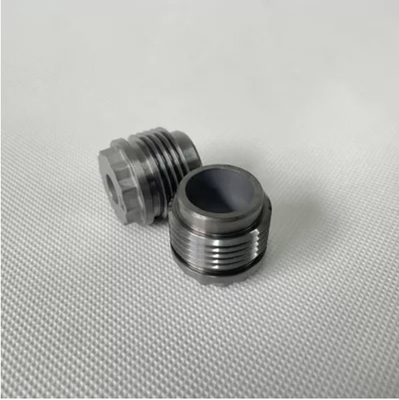

Large Image : Cemented Carbide Thread Nozzle for Oil Drilling 26.30mm Length YG8 Grade

Product Details:

Place of Origin:	Sichuan China
Brand Name:	Kedel
Certification:	ISO90001:2015
Model Number:	PZ-YH-14.3

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$10.00 - $32.00 / Piece
Packaging Details:	plastic and carton box
Delivery Time:	20-25 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	5000 pieces per month

Contact Now

Cemented Carbide Thread Nozzle for Oil Drilling 26.30mm Length YG8 Grade

Description

Type:	Nozzle	Machine Type:	Drilling Tool Accessories
Particle:	Tungsten Carbide	Head Hardness:	90-92 HRA
Usage:	Oil Field Drilling Bit Parts	Sample:	Available
Trade Mark:	KEDEL	Density:	14.5-15.0 G/cm3
Idustry Material:	Tungsten Carbide WC+Co	Compressive Strength:	≥ 3200 MPa
Surface Treat:	Shaping Mode	Surface Finish:	Ground Or Polished
Total Length:	26.30	Grade:	YG8/YG15/YG6X/YG6/YG20
Single Gross Weight:	0.160 Kg
Highlight:	Mining Cemented Carbide Thread Nozzle , Cemented Carbide Thread Nozzle , Oil Field Drilling Cemented Carbide Nozzle

China Manufacture Cemented Carbide Thread Nozzle For Bits Mining And Oil Field Drilling

The cemented carbide threaded nozzle is mainly used on PDC bits for drilling and mining, and is made of all hard aggregate materials. It is characterized by high wear resistance, high strength and corrosion resistance. Kedal Tools can produce various types of cemented carbide threaded nozzles, including standard products from world-famous drilling companies, and accepts ODM and OEM customized services.

Product Introduction

The cemented carbide threaded nozzle is made of 100% tungsten carbide powder by pressing and sintering. It features strong wear resistance, corrosion resistance and high hardness. The threads are generally of metric and inch systems, used to connect the nozzle and drill base.

Nozzle Types

Nozzle types are generally divided into four categories:

Cross groove type
Inner hexagon type
Outer hexagon type
Quincunx type

We can customize different types of nozzle heads according to customer requirements.

Types of Carbide Nozzles

There are two main types of carbide nozzles for drill bits:

With thread (primarily used on PDC drill bits)
Without thread (mainly used on roller bits)

Threaded Nozzle Variants

According to different handling tool wrenches, there are 6 types of threaded nozzles for PDC bits:

Cross groove thread nozzles
Plum blossom type thread nozzles
Outer hexagonal thread nozzles
Internal hexagonal thread nozzles
Y type (3 slot/grooves) thread nozzles
Gear wheel drill bit nozzles and press fracturing nozzles

Material Grade Specifications

Grade	Co(%)	Density(g/cm³)	Hardness(HRA)	TRS(N/mm²)
YG6	5.5-6.5	14.90	90.50	2500
YG8	7.5-8.5	14.75	90.00	3200
YG9	8.5-9.5	14.60	89.00	3200
YG9C	8.5-9.5	14.60	88.00	3200
YG10	9.5-10.5	14.50	88.50	3200
YG11	10.5-11.5	14.35	89.00	3200
YG11C	10.5-11.5	14.35	87.50	3000
YG13C	12.7-13.4	14.20	87.00	3500
YG15	14.7-15.3	14.10	87.50	3200
