Product Details:
|
| Type: | Nozzle | Machine Type: | Drilling Tool Accessories |
|---|---|---|---|
| Particle: | Tungsten Carbide | Head Hardness: | 90-92 HRA |
| Usage: | Oil Field Drilling Bit Parts | Sample: | Available |
| Trade Mark: | KEDEL | Density: | 14.5-15.0 G/cm3 |
| Idustry Material: | Tungsten Carbide WC+Co | Compressive Strength: | ≥ 3200 MPa |
| Surface Treat: | Shaping Mode | Surface Finish: | Ground Or Polished |
| Total Length: | 26.30 | Grade: | YG8/YG15/YG6X/YG6/YG20 |
| Single Gross Weight: | 0.160 Kg | ||
| Highlight: | Mining Cemented Carbide Thread Nozzle,Cemented Carbide Thread Nozzle,Oil Field Drilling Cemented Carbide Nozzle |
||

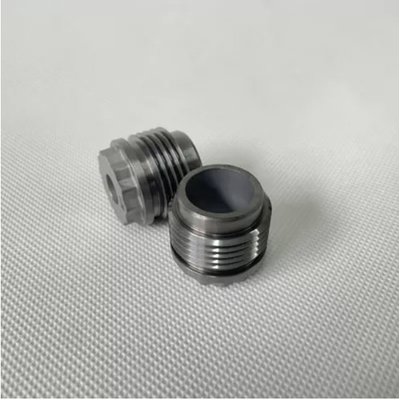

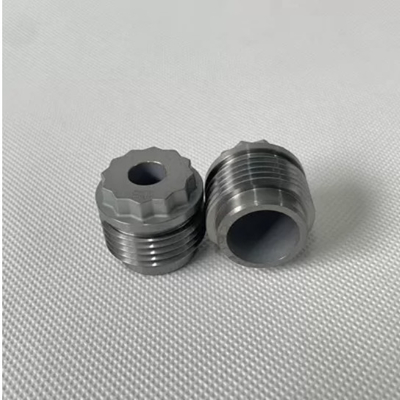

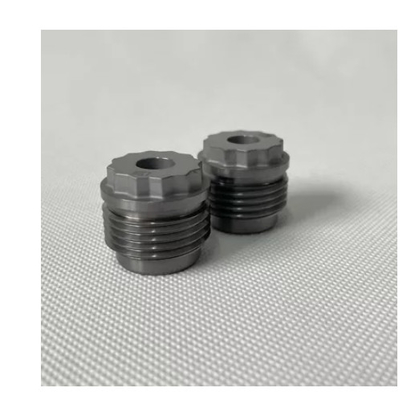

China manufacture cemented carbide thread nozzle for bits mining and oil field drilling
The cemented carbide threaded nozzle is mainly used on PDC bits for drilling and mining, and is made of all hard aggregate materials. It is characterized by high wear resistance, high strength and corrosion resistance. Kedal Tools can produce various types of cemented carbide threaded nozzles, that is, there are standard products from world-famous drilling and production companies, and can accept ODM and OEM customized services.
Product introduction:
The cemented carbide threaded nozzle is made of 100% tungsten carbide powder by pressing and sintering. It has strong wear resistance, corrosion resistance and high hardness. The threads are generally of metric and inch systems, which are used to link the nozzle and drill base. Nozzle types are generally divided into four types, cross groove type, inner hexagon type, outer hexagon type and quincunx type. We can customize and produce different types of nozzle heads according to different customer needs.
Types of the carbide nozzles
There are two main types of carbide nozzles for the drill bits. One is with thread, and the other is without thread. Carbide nozzles without thread are mainly used on the roller bit, carbide nozzles with thread are applied mostly on the PDC drill bit. According to different handling tool wrench, there are 6 types of threaded nozzles for PDC bits:
1. Cross groove thread nozzles
2. Plum blossom type thread nozzles
3. Outer hexagonal thread nozzles
4. Internal hexagonal thread nozzles
5. Y type (3 slot/grooves) thread nozzles
6. gear wheel drill bit nozzles and press fracturing nozzles.
Material Grade:
| Grade | Co(%) | Density(g/cm3 ) | Hardness(HRA) | TRS(NN/mm²) |
| YG6 | 5.5-6.5 | 14.90 | 90.50 | 2500 |
| YG8 | 7.5-8.5 | 14.75 | 90.00 | 3200 |
| YG9 | 8.5-9.5 | 14.60 | 89.00 | 3200 |
| YG9C | 8.5-9.5 | 14.60 | 88.00 | 3200 |
| YG10 | 9.5-10.5 | 14.50 | 88.50 | 3200 |
| YG11 | 10.5-11.5 | 14.35 | 89.00 | 3200 |
| YG11C | 10.5-11.5 | 14.35 | 87.50 | 3000 |
| YG13C | 12.7-13.4 | 14.20 | 87.00 | 3500 |
| YG15 | 14.7-15.3 | 14.10 | 87.50 | 3200 |
