Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance

Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance
Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance

Large Image :  Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: $5-8 / piece
Contact Now

Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance

Description
Size: Customizable Shape: Round
Usage: Oil Field Drilling Bit Parts Original: Sichuan Chengdu
Single Gross Weight: 0.075 Kg High Temperature Resistance: Up To 1000°C
Type: Drill Bit Equipments Porosity: A02/B00/C00
Machine Type: Drilling Tool Accessories Process: Sintered
Particle: WC+CO Tungsten Engine Type: Electric
Porosity Grade: A02/B00/C00 Advantage: Oil & Gas Industry,Pump Etc
Chemical Resistance: Strong
Highlight:

Spanner T Socket Hex Allen Wrench

,

High Quality Long Arm Allen Wrench

,

Hexagonal Nozzle Socket Allen Wrench

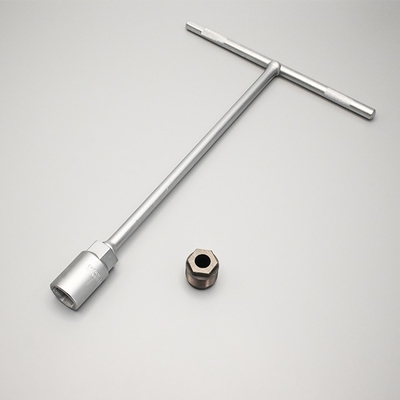

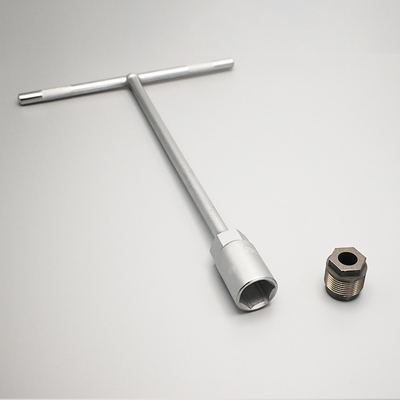

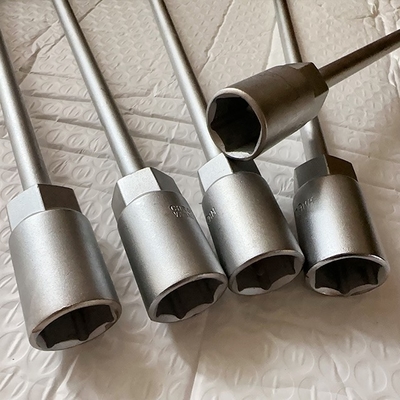

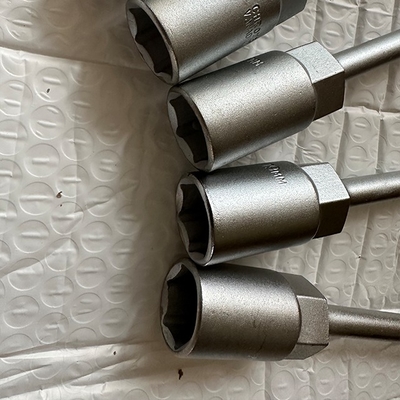

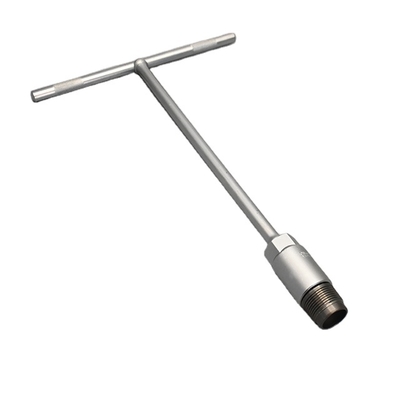

High Quality Long Arm T-Type Socket Allen Wrench Hex Key Spanner for Installing Hexagonal Nozzles
Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 0 Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 1 Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 2 Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 3
Product Parameters
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC Densityg/cm³(±0.1) HardnessHRA(±0.5) TRS Mpa(min) Porosity
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
Pore Diameter Specifications
No. Pore Diameter (MM)
09#7.14
10#7.95
11#8.74
12#9.53
13#10.31
14#11.13
15#11.91
16#12.7
Product Details
Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 4 Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 5
Company Profile
Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 6
Exhibition
Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 7 Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 8 Customizable Cemented Carbide Nozzle for Oil Field Drilling 1000°C Resistance 9
Frequently Asked Questions
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company's payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.

Tag:

YG20 Tungsten Carbide Thread Nozzle,

PDC Drill Bit Cemented Carbide Nozzle,

PZ4 Cemented Carbide Nozzle
