Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore

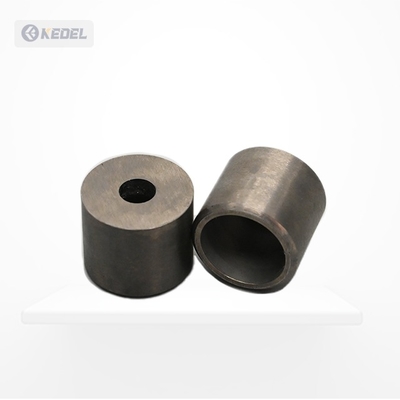

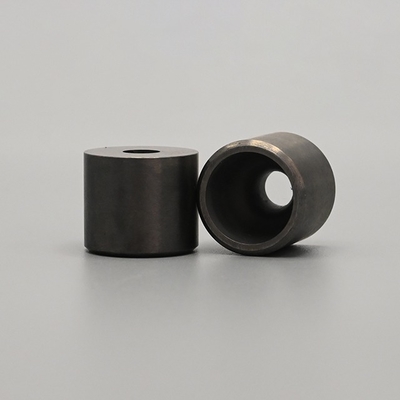

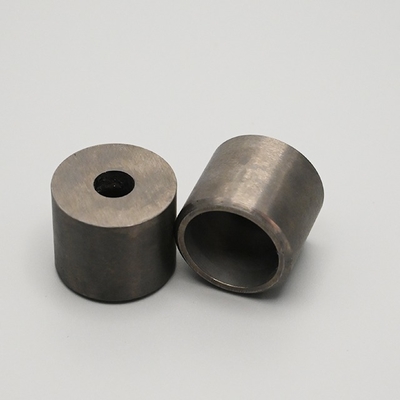

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore

Large Image :  Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG8
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $11.70-27.70
Contact Now

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Grade: YG8/YG9C/YG11C Surface: Glossy
Color: Black Density: 14.90 G/cm³
Hardness: 93.0 HRA TRS: 2700 Mpa
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm
Pore Diameter: 7.14-12.7 MM WC Composition: 93.5%
Ni Composition: 6.0% TaC Composition: 0.5%
Power Source: Electric
Highlight:

YG8 Carbide Nozzle

,

13mm pore Carbide Nozzle

,

PDC bits Carbide Nozzle

Custom Cemented Tungsten Carbide Alloy Roller Drill Bit Fixed Cylindrical Nozzle for PDC Drilling Oil Equipment
Product Specifications
Surface Glossy
Power Source Electric
Product Name Tungsten Carbide Nozzle
Material 100% pure tungsten carbide powder
Advantage High Wear Resistance
Size Customer Required

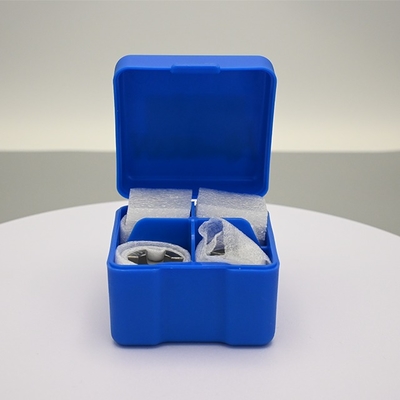

Packing Plastic box
Application Machine PDC Bits
Shape Cylindrical
Grade YG8/YG9C/YG11C
MOQ 5 PIECES
Color Black
Product Description
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore 0
Technical Parameters
NO. OEM Common Sizes (MM)
1 TCY Φ300*Φ112*1.2
2 FOSBER Φ291*Φ203*1.1
3 Mitsubishi Φ280*Φ202*1.4
4 Mitsubishi Φ280*Φ160*1.4
5 KSM Φ280*Φ168*1.4
6 Hsieh Φ270*Φ168.3*1.4
7 Marquip Φ260*Φ168.3*1.2
8 Isowa Φ260*Φ140*1.5
9 Justu Φ260*Φ158*1.3
10 Oranda Φ265*Φ112*1.4
11 Oranda Φ260*Φ112*1.4
12 Wanlian Φ260*Φ114*1.4
13 Peters Φ250*Φ150*0.8
14 Katuo Φ250*Φ130*1.3
15 Jingshan Φ250*Φ105*1.3
16 BHS Φ240*Φ32*1.2
17 Agnati Φ240*Φ115*1
18 FOSBER Φ230*Φ110*1.1
19 Neide Φ230*Φ130*1.3
20 Katuo Φ230*Φ110*1.3
21 Justu Φ210*Φ122*1.3
22 Justu Φ200*Φ122*1.3
NOTE: Customization available per customer drawing or actual sample
Material Composition & Properties
Grade Composition (% in weight) WC Ni Ti TaC Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity Grain size (μm)
KD115/YG6X
93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X
89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6
94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8
92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9
91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C
91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10
90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11
89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C
89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13
87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C
87.0 13.0 - - 14.20 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15
85.0 15.0 - - 14.10 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C
85.0 15.0 - - 14.00 86.5 3500 A02/B00/C00 1.6-2.4
Pore Diameter Specifications
No. Pore Diameter (MM)
09# 7.14
10# 7.95
11# 8.74
12# 9.53
13# 10.31
14# 11.13
15# 11.91
16# 12.7

NOTE: Customization available per customer drawing or actual sample

Product Images
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore 1 Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore 2
Company Profile
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore 3
Exhibition
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore 4 Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore 5 Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Bits 7-13mm Pore 6
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company’s payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
