Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter

Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter
Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter

Large Image :  Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG8
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $13.20-29.20
Contact Now

Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Surface: Glossy Color: Black
Grade: YG8/YG9C/YG11C Density: 14.90 G/cm³
Hardness: 93.0 HRA TRS: 2700 Mpa
Porosity: A02/B00/C00 Grain Size: 0.6-0.8 μm
Pore Diameter: 7.14-12.7 MM WC Composition: 93.5%
Ni Composition: 6.0% TaC Composition: 0.5%
Power Source: Electric
Highlight:

YG8 Grade Tungsten Carbide Nozzle

,

PDC Bits Tungsten Carbide Nozzle

,

12.7mm Pore Diameter Tungsten Carbide Nozzle

Custom Cemented Tungsten Carbide Water Jet Spiral Thread Open Crossing Slot Head Nozzle for PDC Drilling Oil Equipment
Product Specifications
AttributeValue
SurfaceGlossy
Power SourceElectric
Product NameTungsten Carbide Nozzle
Material100% pure tungsten carbide powder
AdvantageHigh Wear Resistance
SizeCustomer Required
PackingPlastic box
Application MachinePDC Bits
ShapeCylindrical
GradeYG8/YG9C/YG11C
MOQ5 PIECES
ColorBlack
Product Description
Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter 0
Technical Parameters
NO.OEMCommon Sizes (MM)
1TCYΦ300*Φ112*1.2
2FOSBERΦ291*Φ203*1.1
3MitsubishiΦ280*Φ202*1.4
4MitsubishiΦ280*Φ160*1.4
5KSMΦ280*Φ168*1.4
6HsiehΦ270*Φ168.3*1.4
7MarquipΦ260*Φ168.3*1.2
8IsowaΦ260*Φ140*1.5
9JustuΦ260*Φ158*1.3
10OrandaΦ265*Φ112*1.4
11OrandaΦ260*Φ112*1.4
12WanlianΦ260*Φ114*1.4
13PetersΦ250*Φ150*0.8
14KatuoΦ250*Φ130*1.3
15JingshanΦ250*Φ105*1.3
16BHSΦ240*Φ32*1.2
17AgnatiΦ240*Φ115*1
18FOSBERΦ230*Φ110*1.1
19NeideΦ230*Φ130*1.3
20KatuoΦ230*Φ110*1.3
21JustuΦ210*Φ122*1.3
22JustuΦ200*Φ122*1.3
NOTE: Customization available per customer drawing or actual sample
GradeComposition (% in weight)WCNiTiTaCDensity g/cm³ (±0.1)Hardness HRA (±0.5)TRS Mpa (min)PorosityGrain size (μm)
KD115/YG6X
93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
No.Pore Diameter (MM)
09#7.14
10#7.95
11#8.74
12#9.53
13#10.31
14#11.13
15#11.91
16#12.7
NOTE: Customization available per customer drawing or actual sample
Product Images

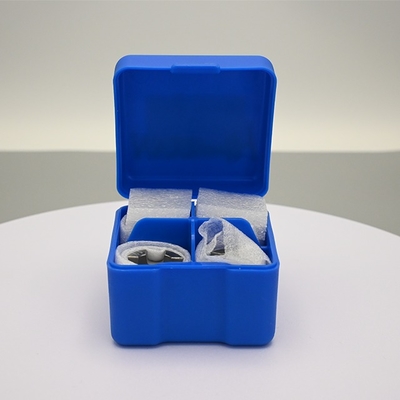

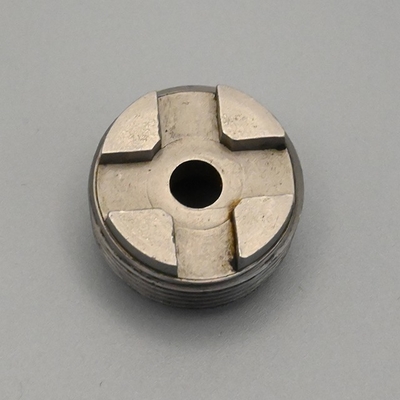

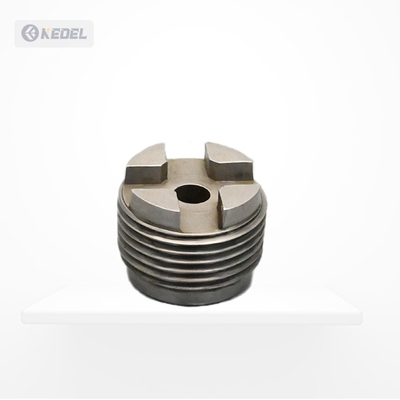

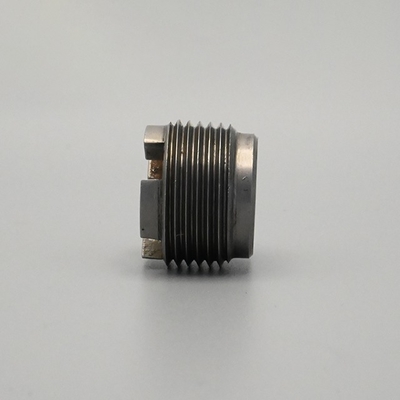

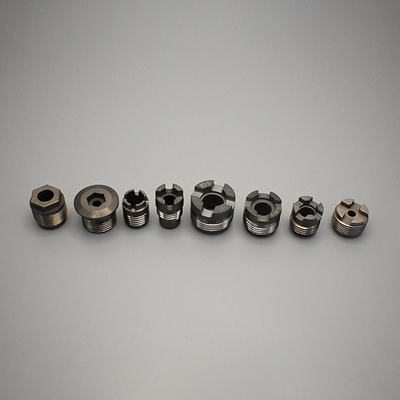

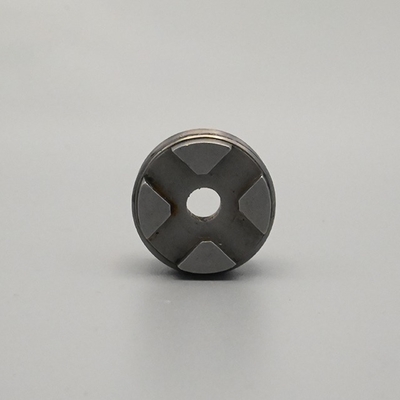

Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter 1 Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter 2
Company Profile
Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter 3
Exhibition
Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter 4 Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter 5 Tungsten Carbide Nozzle YG8 Grade for PDC Bits 12.7mm Pore Diameter 6
FAQ
Q: How to obtain an accurate quotation from Kedel Tools?
A: Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
Q: How does our company ensure the quality of its products?
A: We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
Q: How long does a typical production cycle take?
A: For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
Q: What is our company’s payment method?
A: We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
