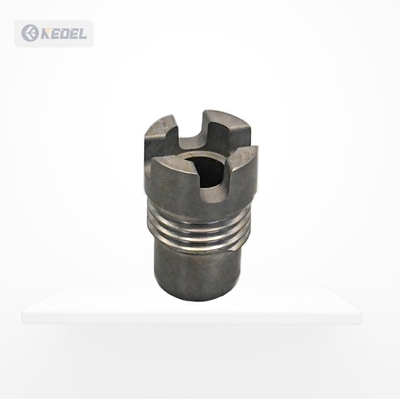

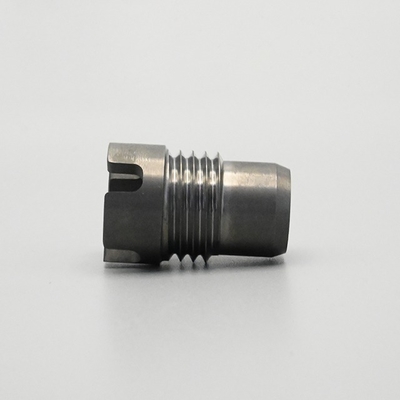

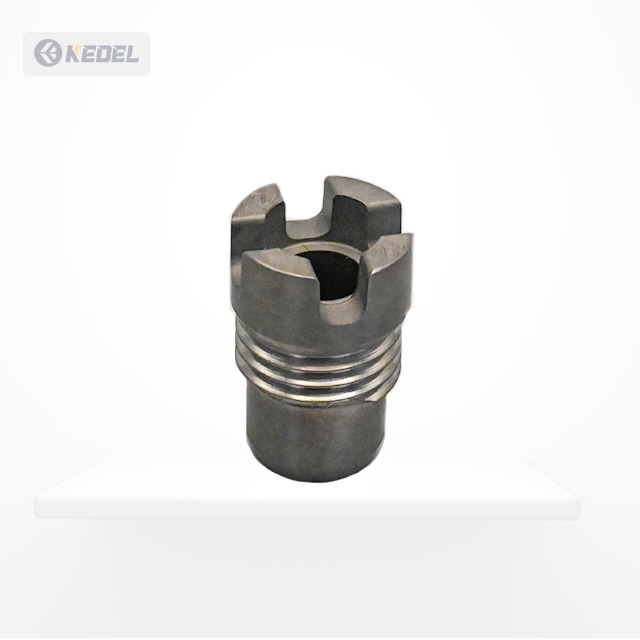

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment

Large Image :  Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG8
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $11.80-27.80
Contact Now

Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment

Description
Material: 100% Pure Tungsten Carbide Powder Shape: Cylindrical
Grade: YG8/YG9C/YG11C Surface: Glossy
Color: Black Alloy Pore Diameter: 7.14-12.7 MM
Density: 12.00-14.90 G/cm³ Hardness: 86.5-93.6 HRA
TRS: 2000-3800 Mpa Porosity: A02/B00/C00
Grain Size: 0.4-2.4 μm WC Composition: 69.2-94.0%
Ni Composition: 6.0-15.0% Ti Composition: 0-7.4%
TaC Composition: 0-13.8%
Highlight:

YG11C Tungsten Carbide Nozzle

,

PDC Drilling Tungsten Carbide Nozzle

,

YG9C Tungsten Carbide Nozzle

Custom Cemented Tungsten Carbide Water Jet Spiral Thread Crossing Slot Head Water Spray Nozzle
Product Specifications
Attribute Value
Surface Glossy
Power Source Electric
Product Name Tungsten Carbide Nozzle
Material 100% pure tungsten carbide powder
Advantage High Wear Resistance
Size Customer Required
Packing Plastic box
Application Machine PDC Bits
Shape Cylindrical
Grade YG8/YG9C/YG11C
MOQ 5 PIECES
Color Black Alloy
Product Description
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 0 Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 1 Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 2
Technical Parameters
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 3
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
Pore Diameter Specifications
No. Pore Diameter (MM)
09#7.14
10#7.95
11#8.74
12#9.53
13#10.31
14#11.13
15#11.91
16#12.7

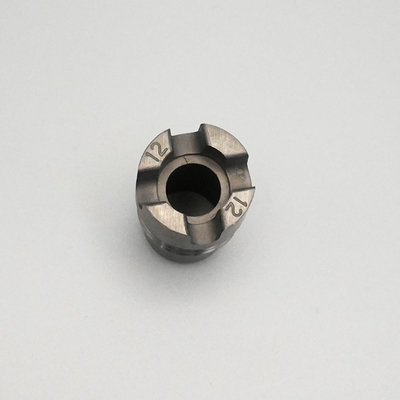

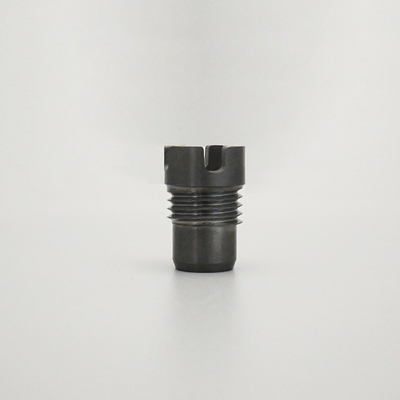

Product Images
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 4
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 5
Company Profile
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 6
Exhibition
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 7
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 8
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 9
Tungsten Carbide Nozzle YG8 YG9C YG11C for PDC Drilling Oil Equipment 10
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit and every positive review and repurchase is the driving force that inspires us to keep moving forward.
